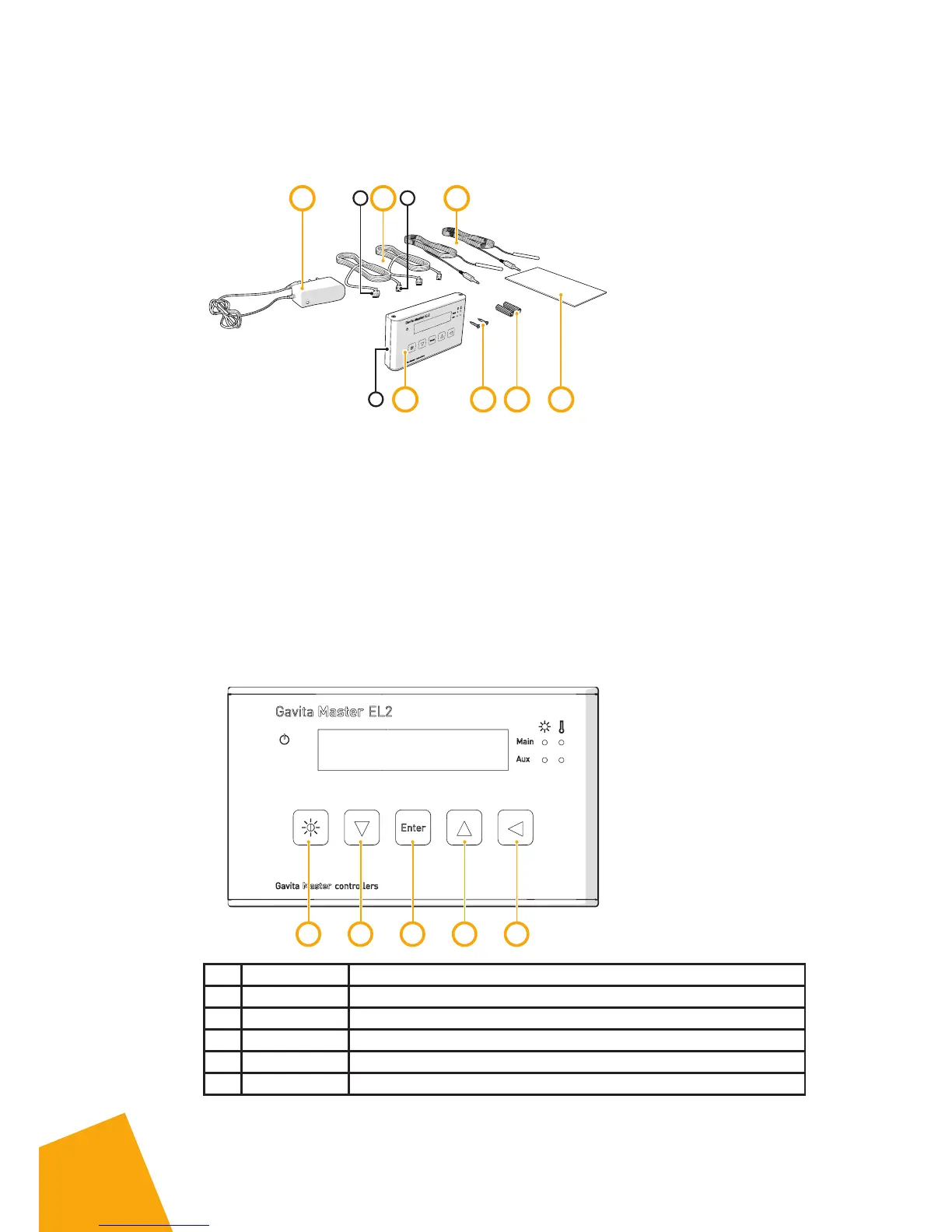

2.5. Components
A
I
B C D
E F G
I II
A. Gavita Master controller EL2
I. Mounting plate
B. 2x Countersunk screw
C. 2x Plug
D. Manual
E. 120-240V AC - 5V DC power adapter (2000mA)
F. 2x Controller cable (5m/16ft)
I. RJ14 (6P4C) plug (connect to ballasts)
II. RJ9 (4P4C) plug (connect to controller)
G. 2x Temperature sensor with cable (5m/16ft)
2.6. Controls
A EDCB
Key Function
A Quick-key View and adjust output level
B Down Navigate down in menu/decrease value
C Enter Go to menu/confirm
D Up Navigate up in menu/increase value
E Back Navigate back in menu/cancel/reset
To Next Page
