11

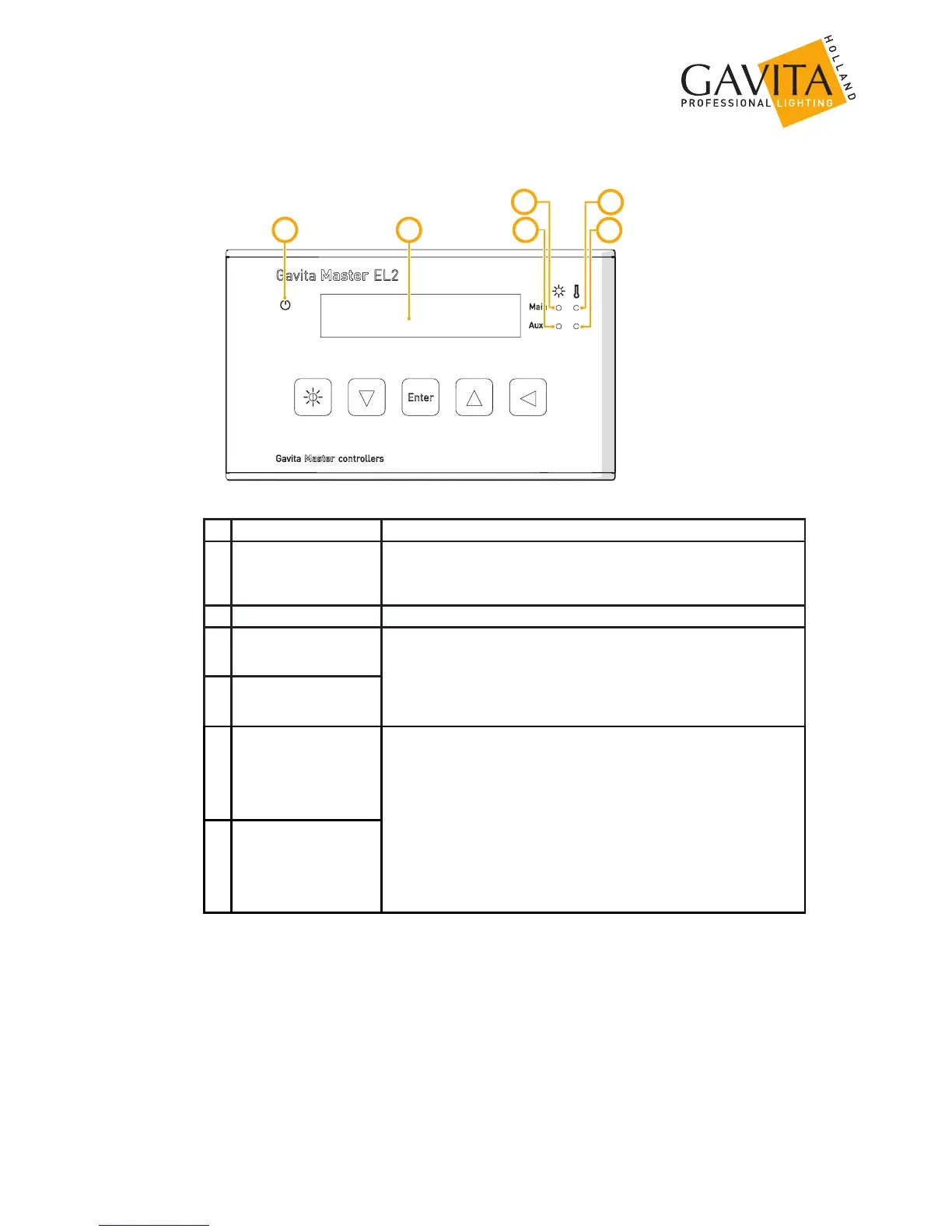

2.7. Indications
A B
C
D
E
F
For more information on indications go to chapter 7
Indication signal Function
A Power indication
A burning green light indicates controller is active.
A blinking green light indicates a power interruption
has occured during operation.
B Display Displays status, warnings and controller menu.
C
Light indication
main
A burning blue light indicates the port is active.
A blinking blue light indicates an overload/short
circuit in a cable connected to the port.
Blue light off indicates the port is inactive.
D
Light indication
aux
E
Temperature
warning main
A burning red light indicates the auto-dim
temperature has been exceeded in the past.
A blinking red light indicates the auto-dim
temperature threshold is currently exceeded. The
corresponding output channels are being dimmed.
A fast blinking red light indicates the shutdown
temperature threshold has been exceeded.
All output channels have been shut down.
F
Temperature
warning aux
