Gazer MIB-4 - Connecting Video-Interface and Keypad

Version 17.11.2017 HW:CAM(V82)GD RL3-MIB-4
Page
14

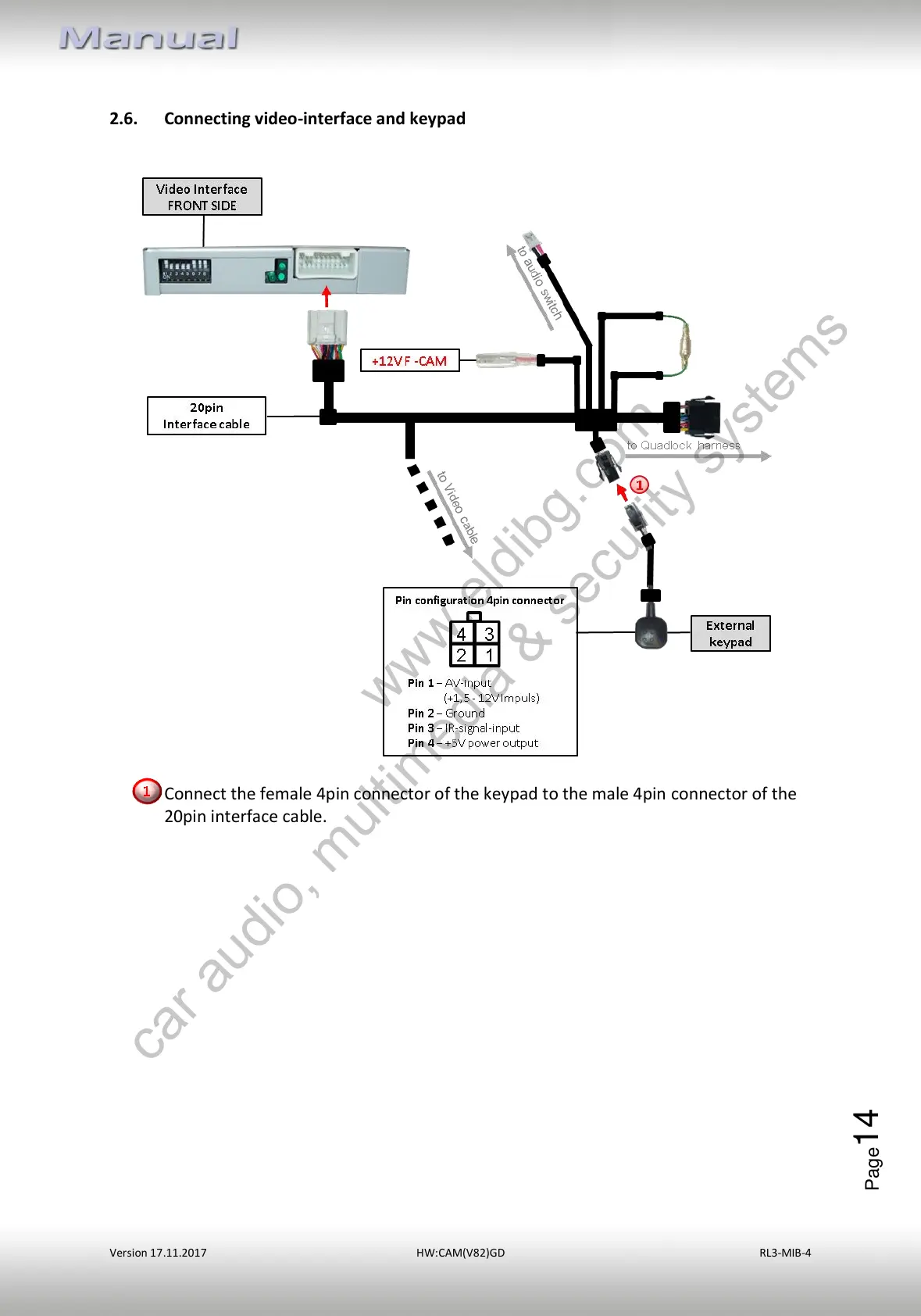

2.6. Connecting video-interface and keypad
Connect the female 4pin connector of the keypad to the male 4pin connector of the
20pin interface cable.
