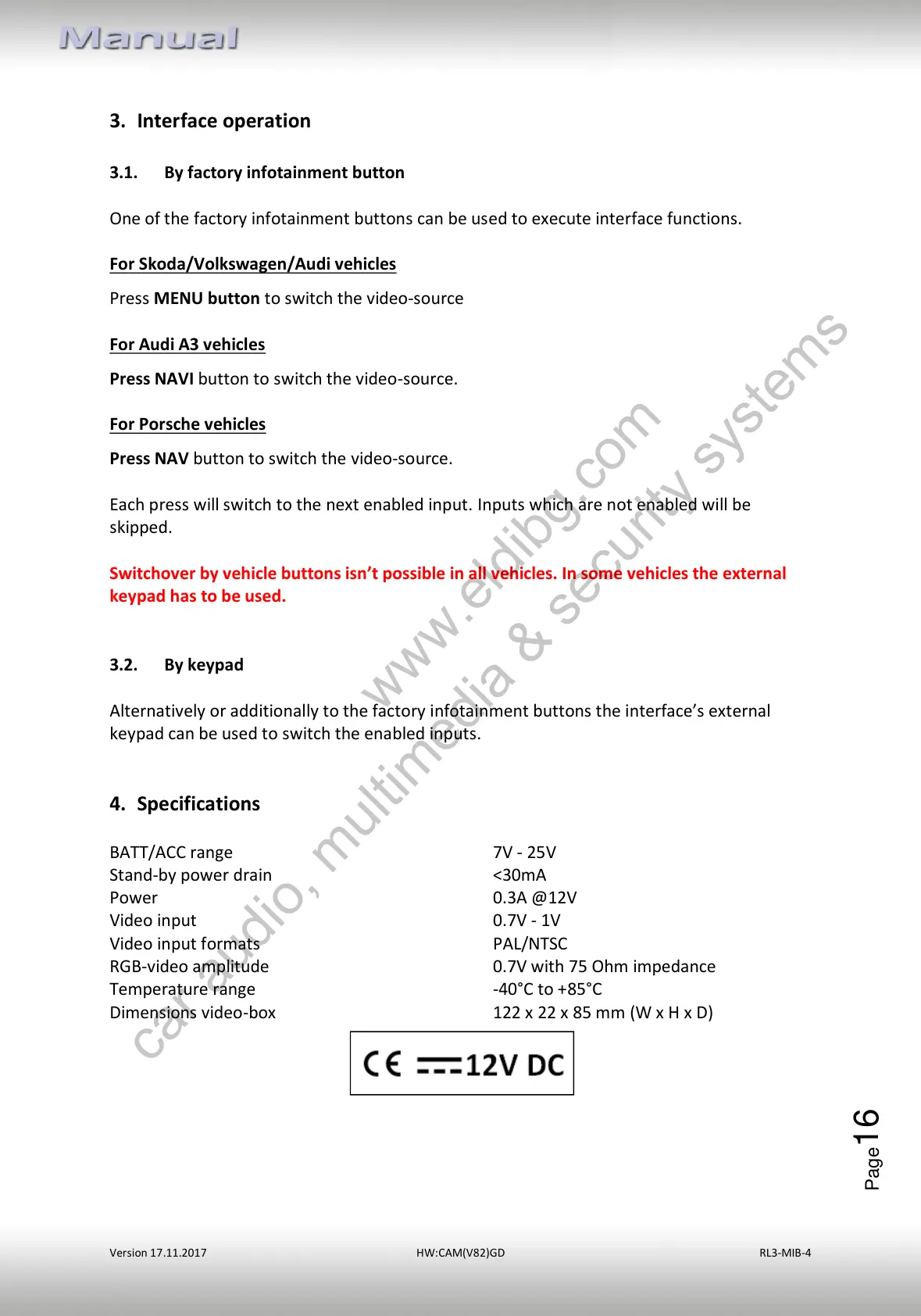

3. Interface operation
3.1. By factory infotainment button
One of the factory infotainment buttons can be used to execute interface functions.
For Skoda/Volkswagen/Audi vehicles
Press MENU button to switch the video-source
For Audi A3 vehicles
Press NAVI button to switch the video-source.
For Porsche vehicles
Press NAV button to switch the video-source.
Each press will switch to the next enabled input. Inputs which are not enabled will be
skipped.
Switchover by vehicle buttons isn’t possible in all vehicles. In some vehicles the external
keypad has to be used.
3.2. By keypad
Alternatively or additionally to the factory infotainment buttons the interface’s external
keypad can be used to switch the enabled inputs.
4.
Specifications
BATT/ACC range 7V - 25V
Stand-by power drain <30mA
Power 0.3A @12V
Video input 0.7V - 1V
Video input formats PAL/NTSC
RGB-video amplitude 0.7V with 75 Ohm impedance
Temperature range -40°C to +85°C
Dimensions video-box 122 x 22 x 85 mm (W x H x D)
