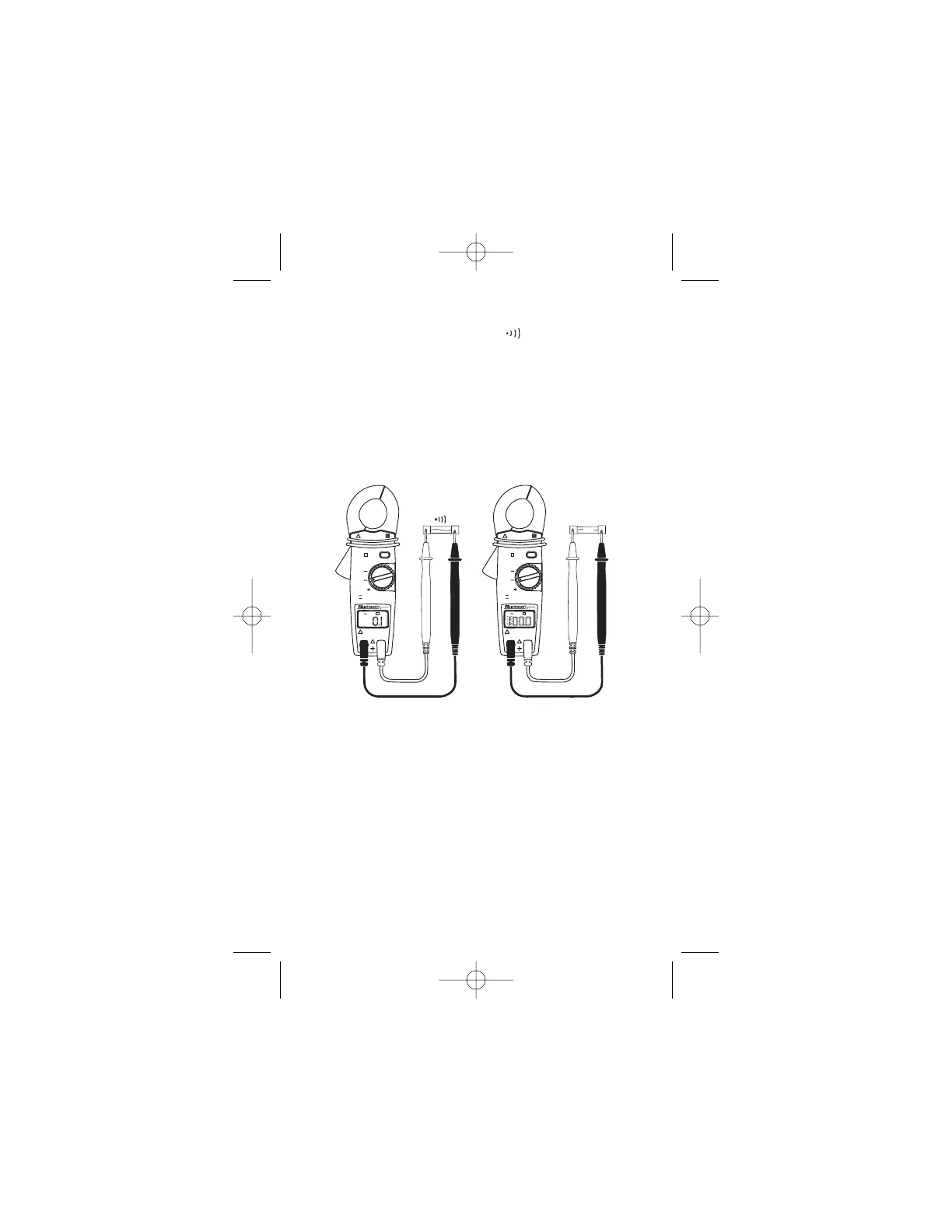

3.3 Testing Continuity:
Switch the function selector to Ω range.
Connect red test lead to "+" terminal and black one to
the "COM" terminal.
Connect tip of the test leads to the points where tests
need to be made.
If the resistance is under 100Ω, the beeper will
sound continuously.
