GBC ORCA 64TH - Control Panel

MANUFACTURE OR FOR ANY OTHER PURPOSE WITHOUT WRITTEN
COPIED OR DISCLOSED IN WHOLE OR IN PART, OR USED FOR
FOR ENGINEERING INFORMATION ONLY AND SHALL NOT BE REPRODUCED,
GBC CLAIMS PROPRIETARY RIGHTS TO THE
MATERIAL DISCLOSED ON THIS DRAWING. IT IS ISSUED IN CONFIDENCE
PERMISSION FROM GBC.
PROPRIETARY
C
4151 Anderson Road, DeForest, WI 53532
This print is the property of GBC. The information thereon is remitted in confidence.
UNLESS OTHERWISE SPECIFIED
TOLERANCE
DIM. AS
SHOWN
TOL.
+ 1/64
+ .050
+ .020
+ .010
+ .005
X/X
X
XX
XXX
XXXX
ANGLES
+ 1D
FINISH
TO BE
125
TITLE :
DATE :
DRAWN BY :
DWG SCALE : DWG :
REVISION
CHECKED BY : Sean Flood

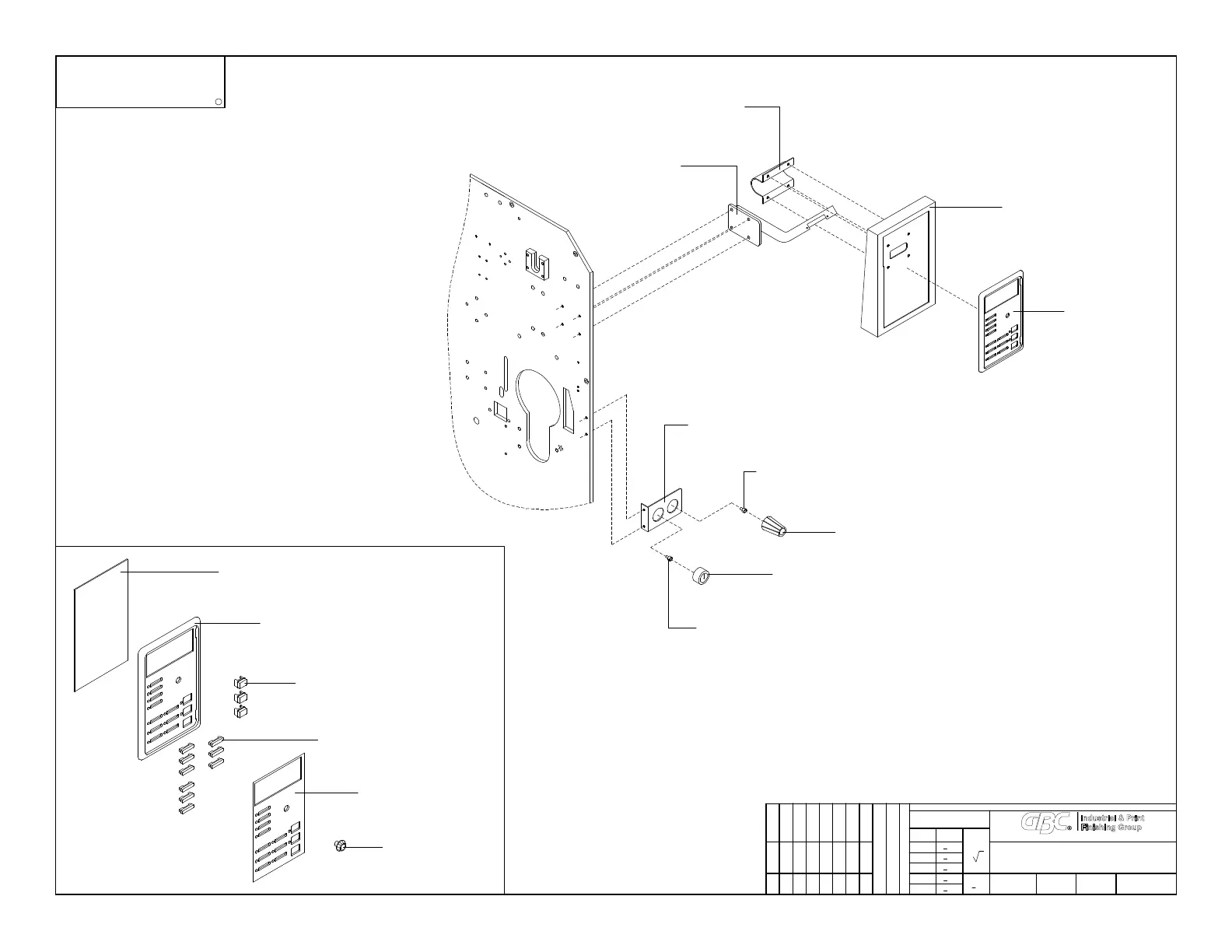

Control Panel Assembly
GBC Orca 64 TH
O64TH - 008N/AN/A07/10/03
(1) 601410763
Control Connector
(1) 601410764
Control Box Bracket
(1) 601410762
Control Box
See Detail "A"
(1) 601410745
Gauge Bracket
(1) 703070292
Fitting, KQ2F04-01
(1) 703070293
Air Regulator
(1) 703070294
Gauge
(1) 703070296
Fitting, KJH04-01S
(1) 706011192
PCB, Display
(1) 703020228
Control Panel
(1) 703020230
Control Key, Square
(1) 703020229
Control Key, Rectangle
(1) 803040530
Control Panel Over Lay
(1) 703020231
Dial Knob
Detail "A"
