ProCut 20P – Installation and Operating Instructions
Page 5-2
WARNING: Keep hands and ngers away from
the Clamp and Cutting Blade. Failure to observe
this warning could result in severe personal
injury.
control Panel
In addition to the manual cut settings, the ProCut 20P
can be programmed for in front and behind the blade
cutting. Up to 80 programs, containing 99 steps each,
can be stored for reuse.
The Control Panel includes an LCD display and keypad.
The LCD shows the current and programmed settings of
the cutter and the keypad is used to set up and program
the cutting programs.
a. lcd dIsPlay
The display shows the current settings of the machine.
The values shown can be displayed in millimeters or
inches.
01 00.00
00.00 00.00 00.00
00.00
00.00
00.0000.00
05 06
02
07
03
08
04
x
10.00
5 inch 0716 00

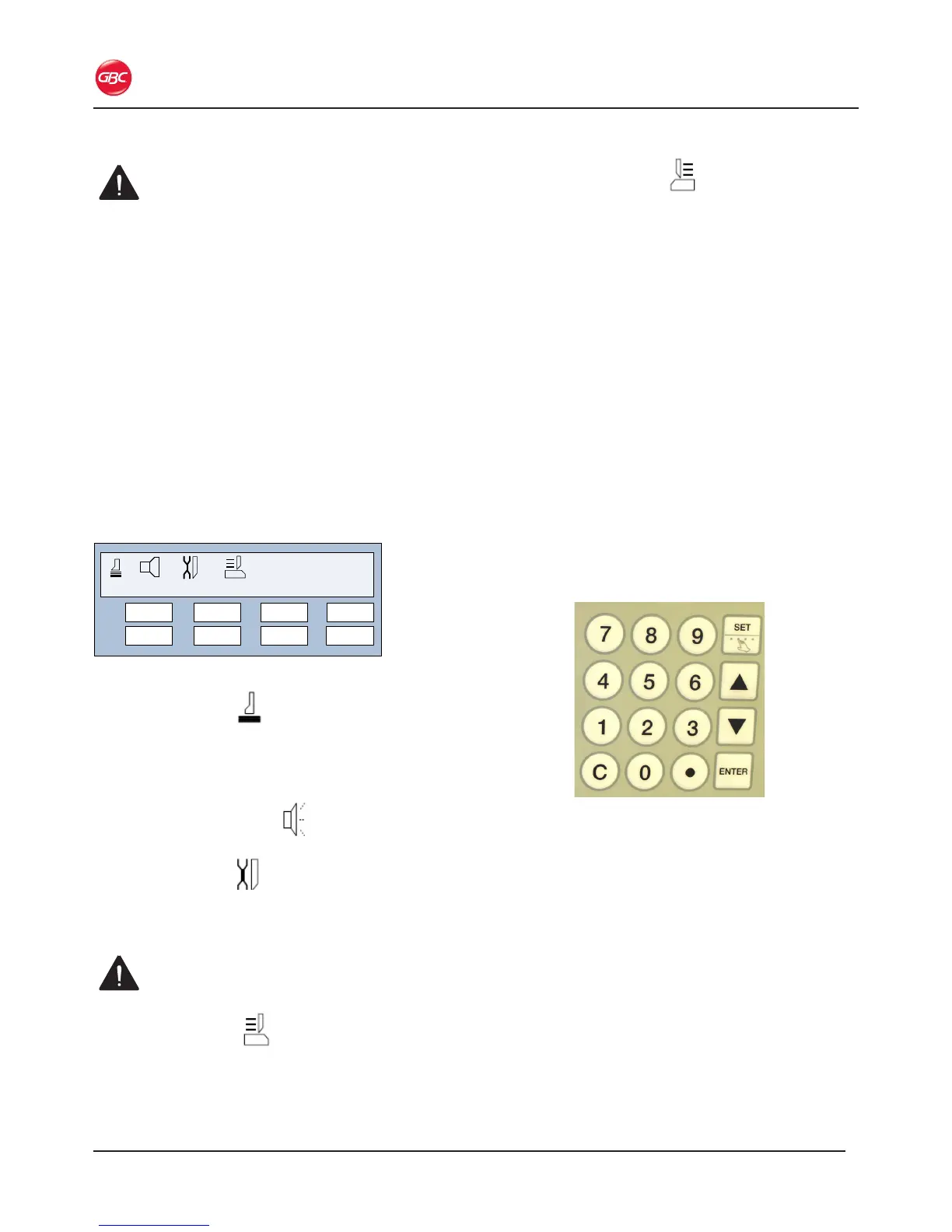

Figure 9. Rendering of LCD Display
claMPInG Force:
Indicates the amount of pressure applied to the media.
The pressure can be set from 1 (highest) to 9 (lowest)
with the default being 5. You must be in the Clamping
Force setting screen to adjust the pressure.
saFety curtaIn alarM:
Indicates whether the alarm buzzer is enabled or disabled.
reBladInG Mode:
Used when changing the blade.
WARNING: Blade removal should only be done
by a GBC Technician. Failure to observe this
warning could result in severe personal injury.
BehInd the Blade:
Cut value is measured from behind the blade to the Back
Gauge.
In Front oF the Blade:
Cut values are measured by the amount of media
the Back Gauge pushes in front of the blade from the
previous cut.
Back GauGe value:
The numeric value displayed is the current position of the
Back Gauge.
ProGraMMInG values:
Displays the programmed cuts entered for each step.
count value:
Provides the total cuts performed during the lifetime of
the machine.
B. keyPad
The keypad is used to:
• Set the cutting size when operating in manual
mode
• Change cutter settings
• Select or create programs
Figure 10. Keypad
Use the numeric keypad to enter the cut values in
manual mode or when entering programs. To add a
decimal, press the decimal button.
When display is in menu mode, the Up and Down arrow
buttons are used to scroll through the menu and to
increase or decrease selected values.
set:
Use the Enter button to access the menu mode. Once
in menu mode, use the numeric buttons to set the value
when programming or changing cutter settings.
