Guangcheng Technology GCAN-PLC user manual
4. Program operation switch and reset
button
The GCAN-PLC-510 provides a program running switch and a reset button.

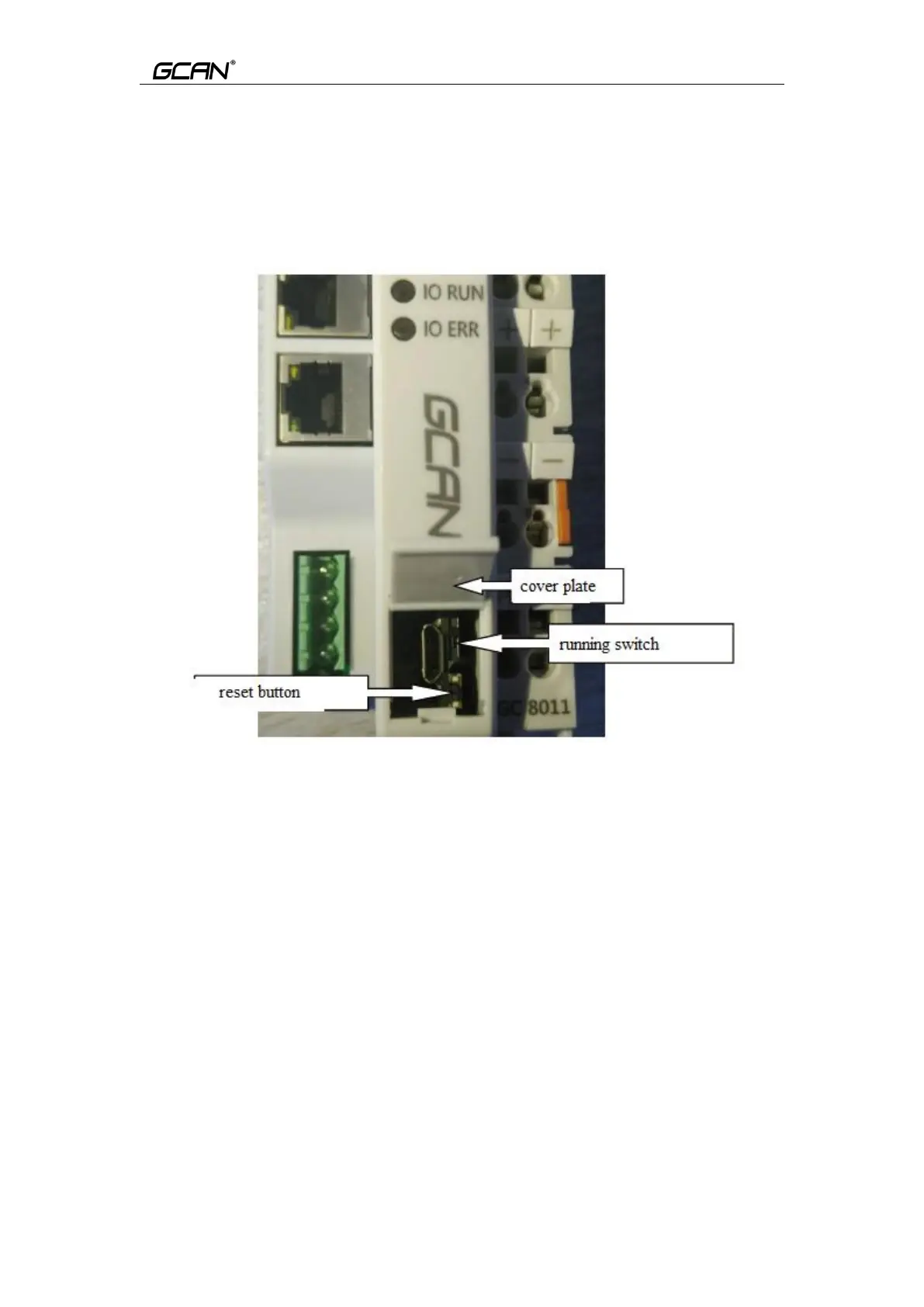

Physical picture after opening cover plate as shown in Figure 4.1:
Figure 4.1 Physical picture after opening cover plate
Note:
1. When the dip switch of the running switch is up (facing away from the reset
button), the PLC is in operation state; When the dip switch of the running
button is located down (towards the reset button side), it represents the PLC
In the stopped state.
2. After power-on, hold down the reset button until the ERR indicator blinks to
restore the PLC, factory IP address: 192.168.1.30.
