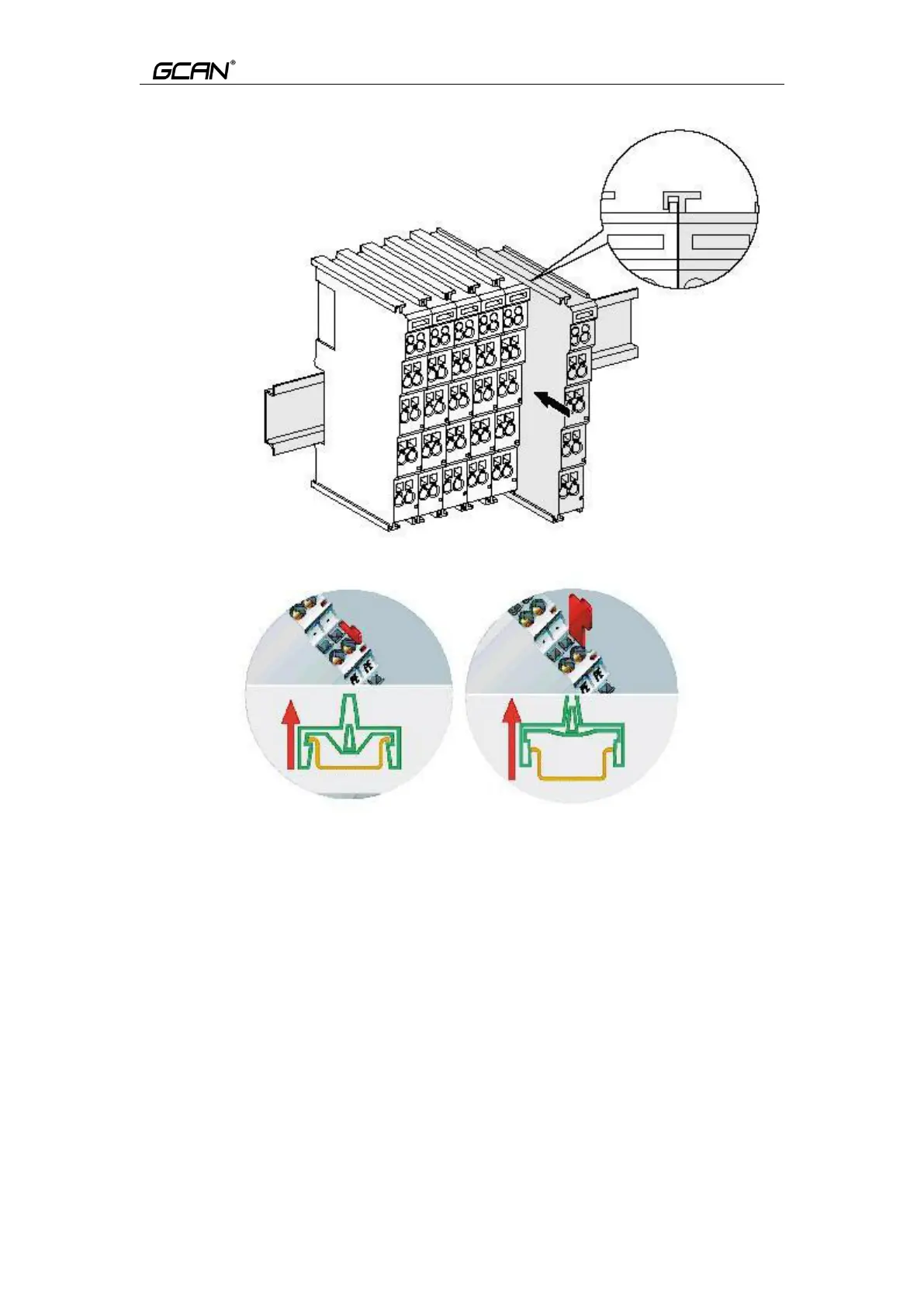

Figure 2.2 GCAN-PLC-510 programmable controller installation
Figure 2.3 GCAN-PLC-510 self-locking mechanism
As shown figure 2.2, install the GCAN-PLC-510 on the guide rail until the
lock is stuck. Then you need to rotate the orange knob on the left end of the
controller counterclockwise to fix the left end of the controller on the guide rail.
The GCAN-PLC-510 has a self-locking mechanism that can effectively prevent
equipment from falling.
As shown figure 2.3, you can release the self-locking mechanism by
pulling out the orange label and take out the controller or matching terminal
module. Before taking out the controller, you need to rotate the orange knob on
the left end of the controller clockwise to unlock it.
