CHAPTER 2: INSTALLATION MECHANICAL INSTALLATION
345 TRANSFORMER PROTECTION SYSTEM – QUICKSTART GUIDE 17

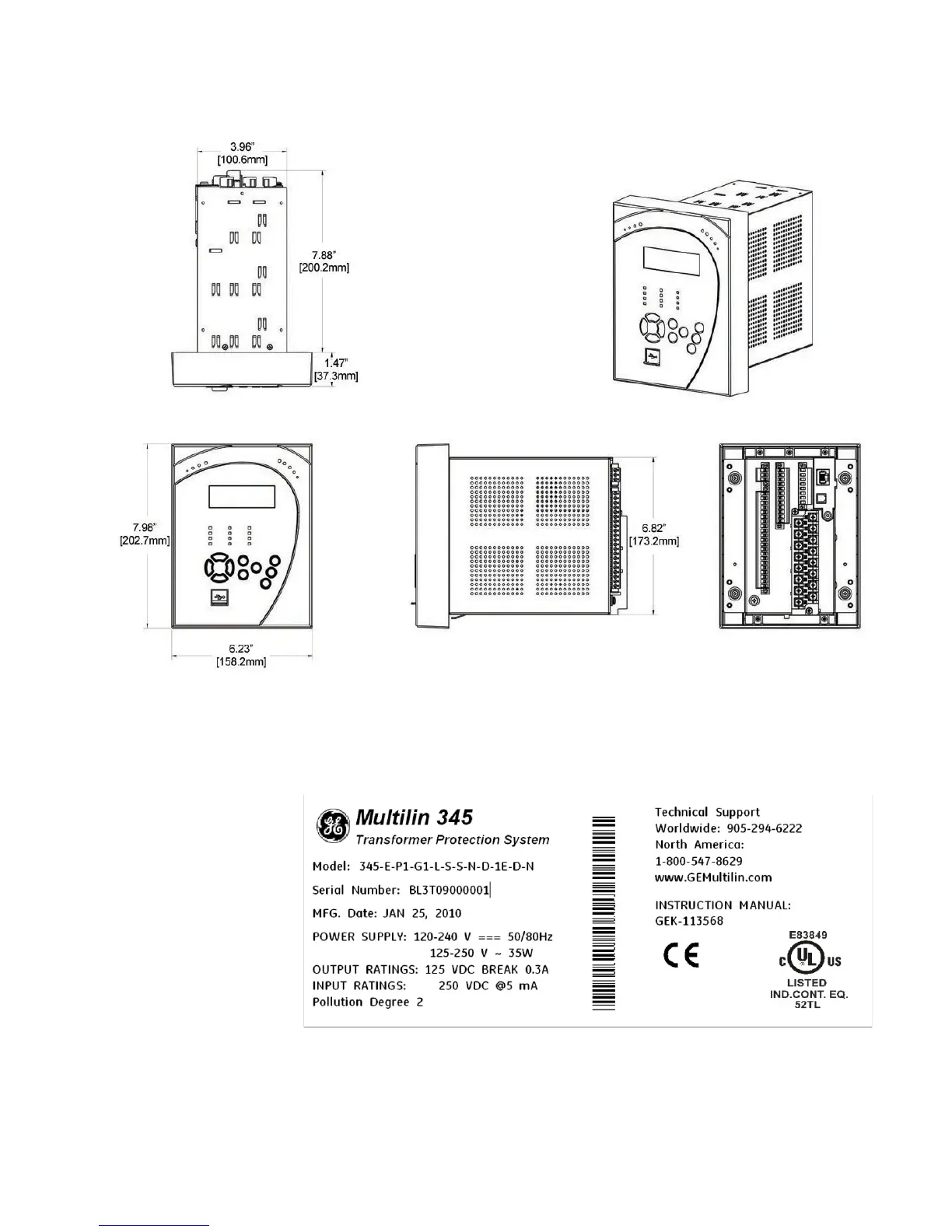

Figure 2-2: 345 dimensions - Non-drawout unit
Product identification
The product identification label is located on the side panel of the 345 . This label indicates
the product model, serial number, firmware revision, and date of manufacture.
Figure 2-3: 345 label
