56 345 TRANSFORMER PROTECTION SYSTEM – QUICKSTART GUIDE
SOFTWARE SETUP CHAPTER 3: INTERFACES

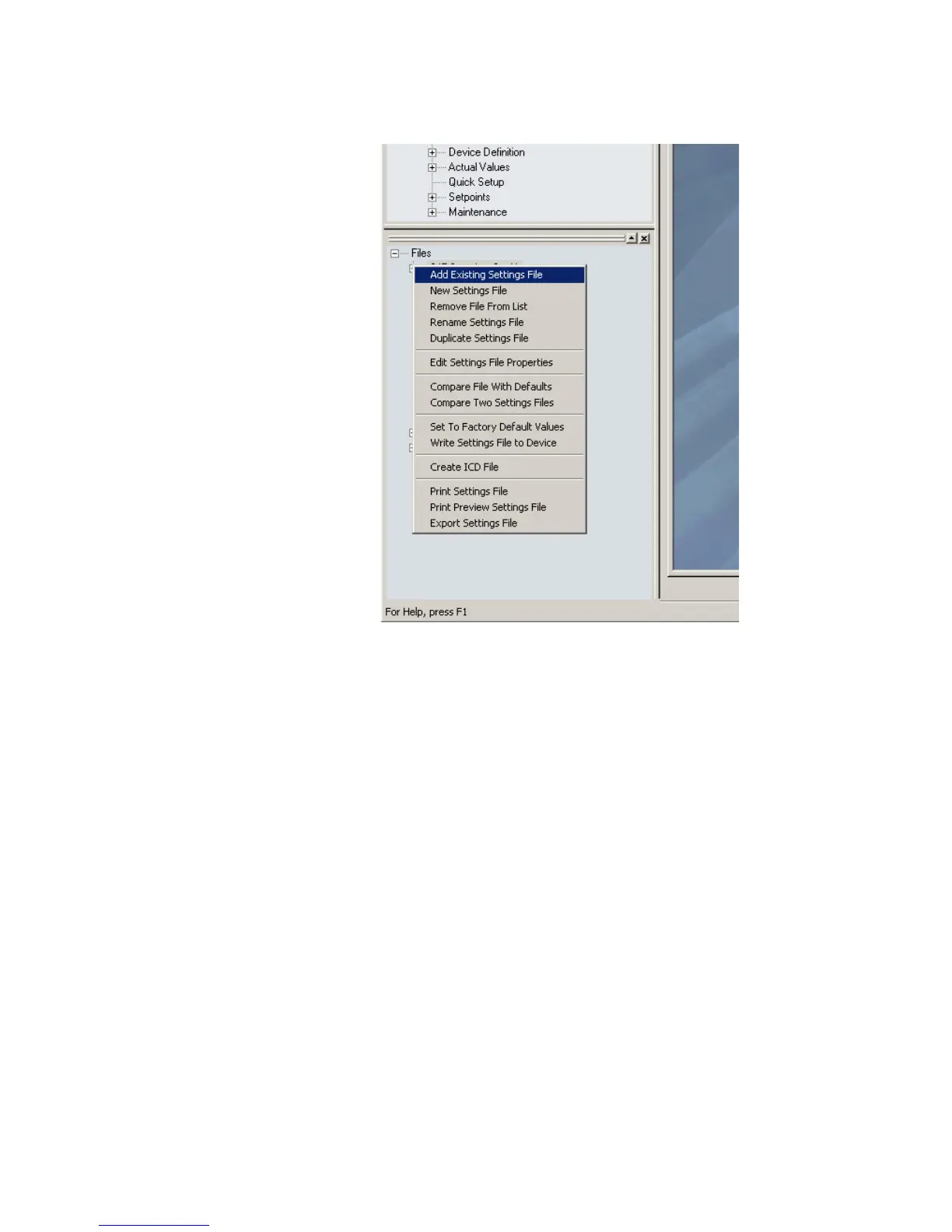

1. In the files pane, right-click on Files and select the Add Existing Setting File item as
shown:
2. The Open dialog box will appear, prompting the user to select a previously saved
setpoint file. As for any other MS Windows® application, browse for the file to be
added then click Open. The new file and complete path will be added to the file list.
Creating a new
setpoint file
The EnerVista SR3 Setup software allows the user to create new setpoint files independent
of a connected device. These can be uploaded to a relay at a later date. The following
procedure illustrates how to create new setpoint files.
