4-44 SR3 SERIES PROTECTIVE RELAY PLATFORM – COMMUNICATIONS GUIDE
USING THE IEC 61850 CONFIGURATOR CHAPTER 4: 3 SERIES IEC61850 GOOSE

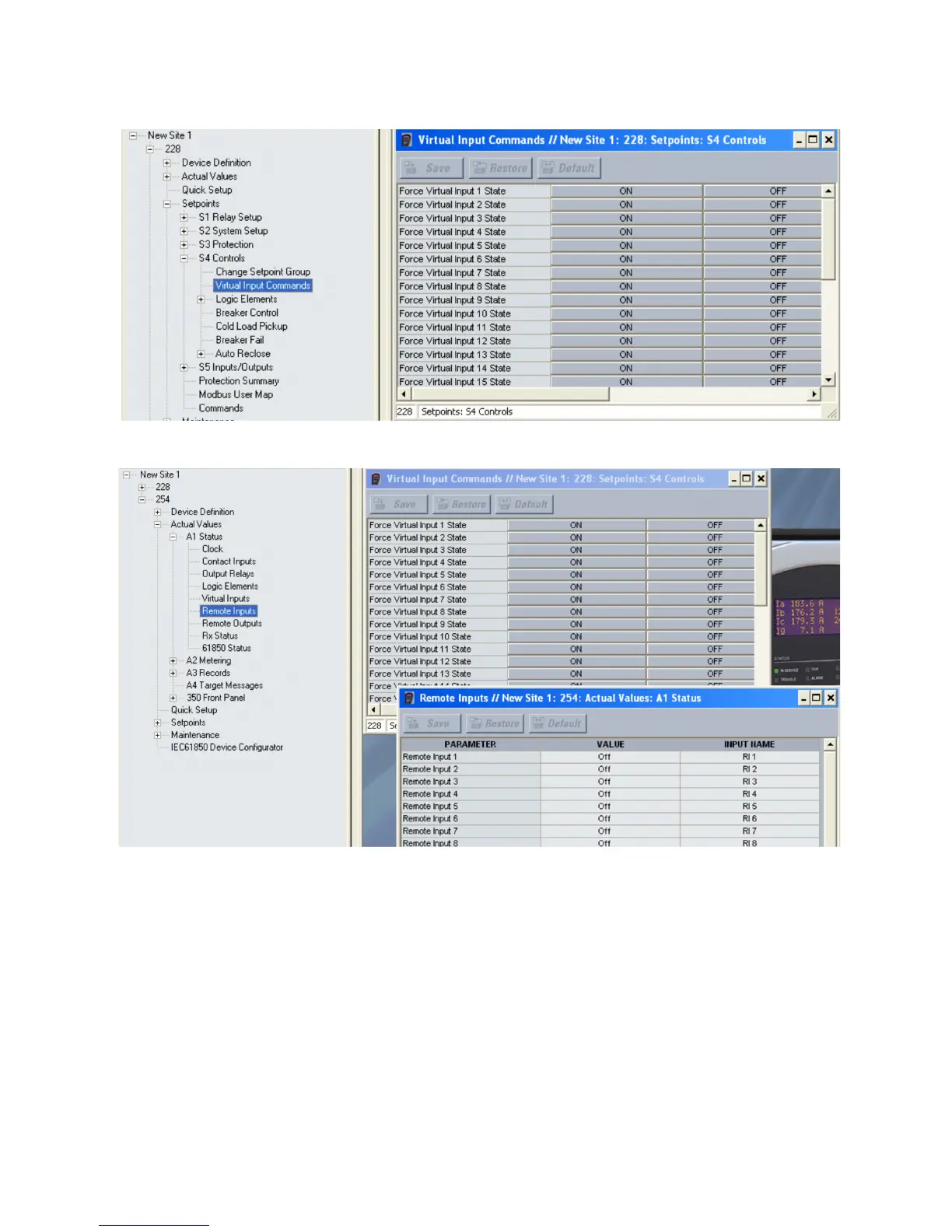

4.1. Open Virtual input commands on relay 228.
4.2. Open the Remote Input Status under Actual Values on Relay 254, and note
that when Virtual Input 1 of relay 228 is forced to a logic 1 or a logic 0, the
status of Remote Input 1 of relay 254 changes to the same state, proving that
the GOOSE transmission and reception were configured correctly.
