CHAPTER 4: 3 SERIES IEC61850 GOOSE GOOSE CONFIGURATION VIA THE 3 SERIES MENUS
SR3 SERIES PROTECTIVE RELAY PLATFORM – COMMUNICATIONS GUIDE 4-11
GOOSE remote inputs
The firmware allows the user to map each of the digital data points received in a data set,
configured for reception, to one of 32 GOOSE remote inputs.
More than 1 GOOSE remote input can be mapped to the same data element, in a data set
belonging to a received GOOSE message.
GOOSE remote inputs can only be mapped to digital data elements.
The firmware considers a GOOSE remote input to be in the “on/off” state when the digital
data element to which it is mapped, is in the “on/off” state.
The firmware allows the user to assign a string name to each of the 32 remote inputs, and
allows the string name assigned to each remote input to be up to 14 characters.

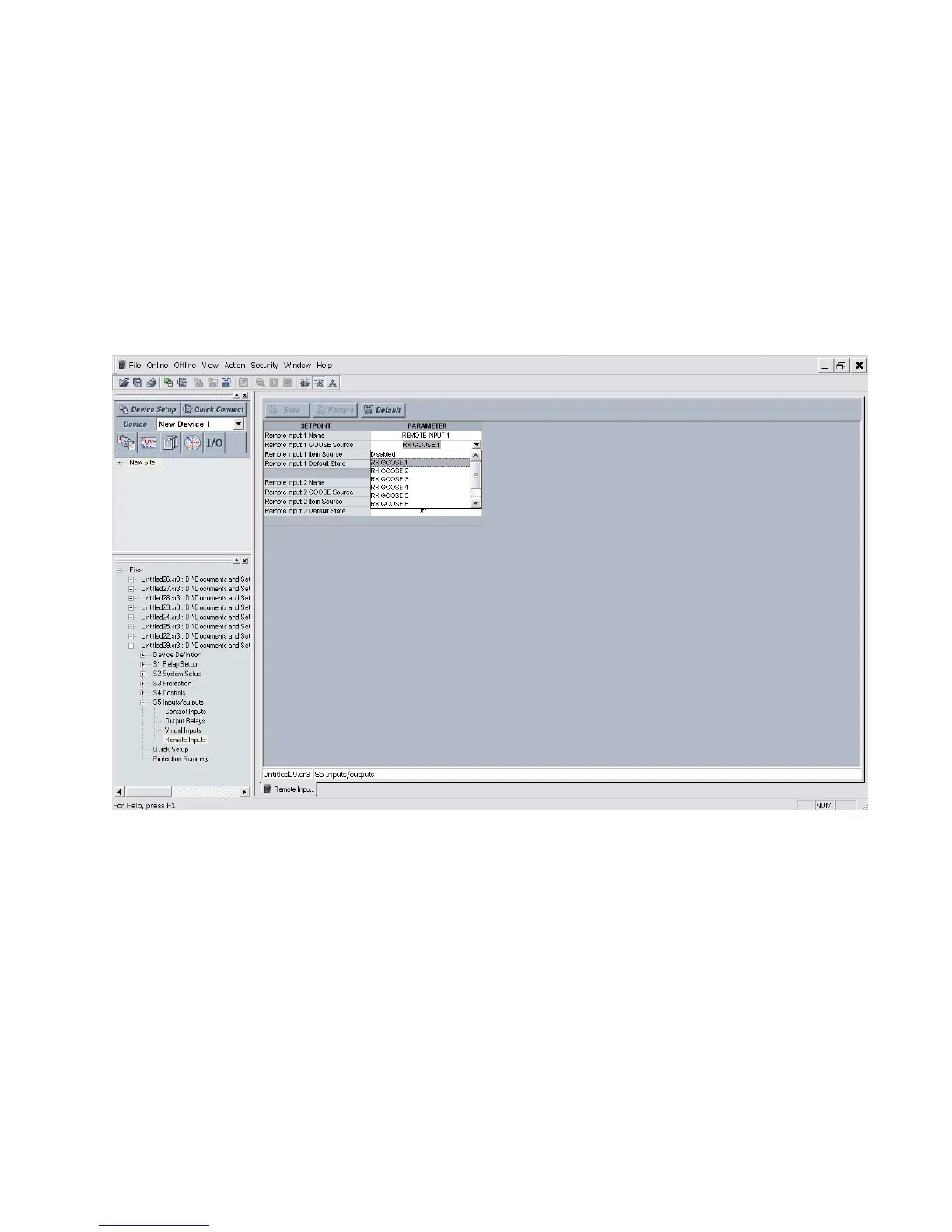

Figure 4-6: EnerVista 3 Series Setup GOOSE Remote Inputs - 1 of 2
To Next Page
