4-18 SR3 SERIES PROTECTIVE RELAY PLATFORM – COMMUNICATIONS GUIDE
USING THE SIMPLIFIED GOOSE CONFIGURATOR CHAPTER 4: 3 SERIES IEC61850 GOOSE

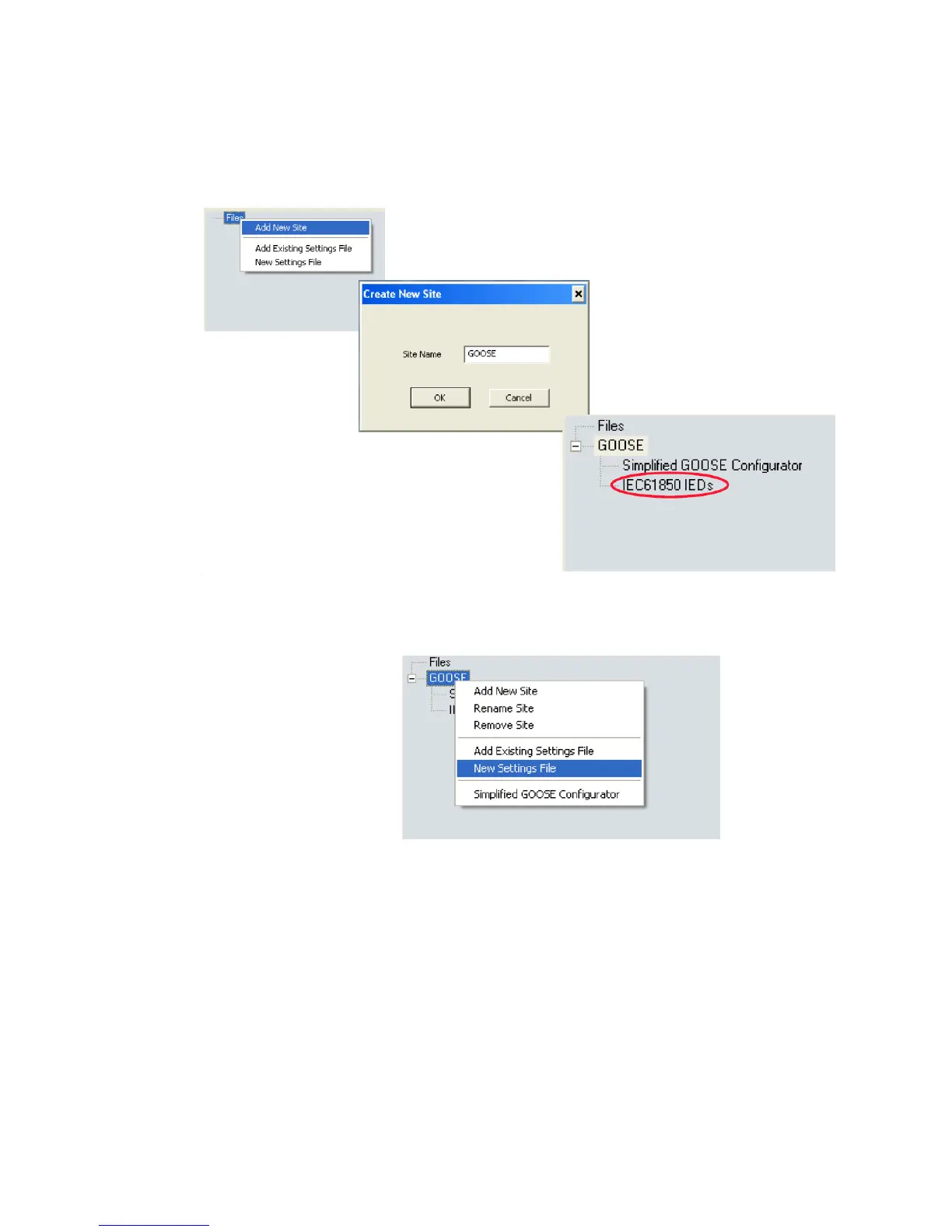

2.1. Right-click the offline File tree and select Add New Site (see figure below). This
selection will launch another window requesting the name of the new site. In
our example, GOOSE was entered for the site name. Once the site name has
been entered, selecting OK will create a new site in the offline window with a
name corresponding to that which was entered.
Note that an additional tree labeled IEC61850 Devices is also created. This is a place
holder for non-3-Series CID files such that all project-related files can be located
within one site.
2.2. Right-click the offline site named GOOSE (see above figure). You will see
several selections:
– Add New Site: This selection will add a new site to the root of the offline tree.
– Remove Site: This selection removes the site and settings files branches from the
offline settings file list.
– Rename Site: This selection renames the site name:
– Move Settings File: This selection allows the user to move a settings file from one
site to another.
– Simplified GOOSE Configurator: This selection launches the Simplified GOOSE
Configurator for the given site branch. The feature will be grayed out if the
highlighted item is not a site name or settings file within a site branch. Therefore
