4-20 SR3 SERIES PROTECTIVE RELAY PLATFORM – COMMUNICATIONS GUIDE
USING THE SIMPLIFIED GOOSE CONFIGURATOR CHAPTER 4: 3 SERIES IEC61850 GOOSE

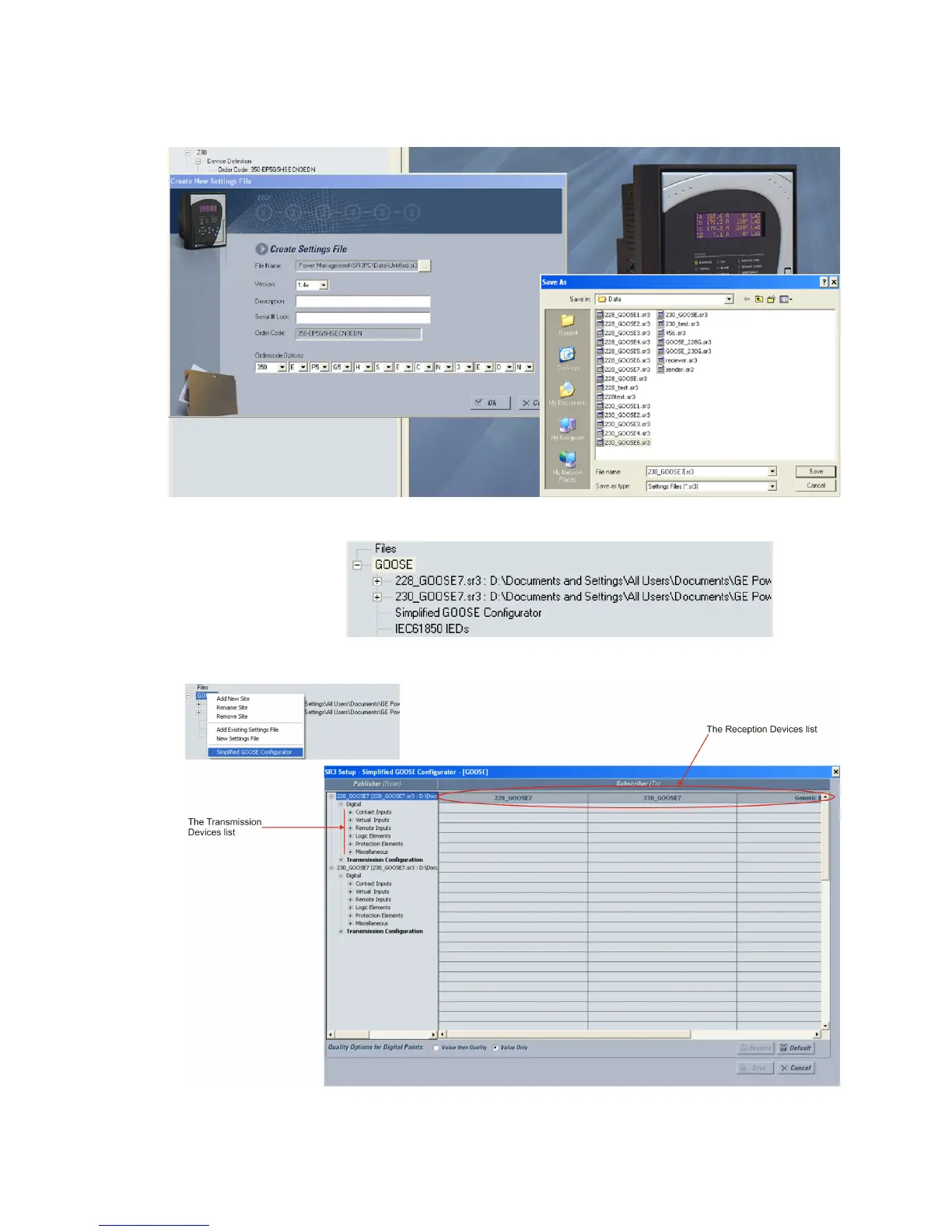

2.4. Using the browser select the name (in this case 228_GOOSE7) and location of
the offline settings file. Once entered select Save, then OK.
2.5. Repeat this process to enter the second setting file (using the name
230_GOOSE7), then again select Save and OK.
Both settings files should now appear under the offline site GOOSE.
3. LAUNCH THE SGC TOOL AND CONFIGURE THE TRANSMISSIONS:
