4-24 SR3 SERIES PROTECTIVE RELAY PLATFORM – COMMUNICATIONS GUIDE
USING THE SIMPLIFIED GOOSE CONFIGURATOR CHAPTER 4: 3 SERIES IEC61850 GOOSE

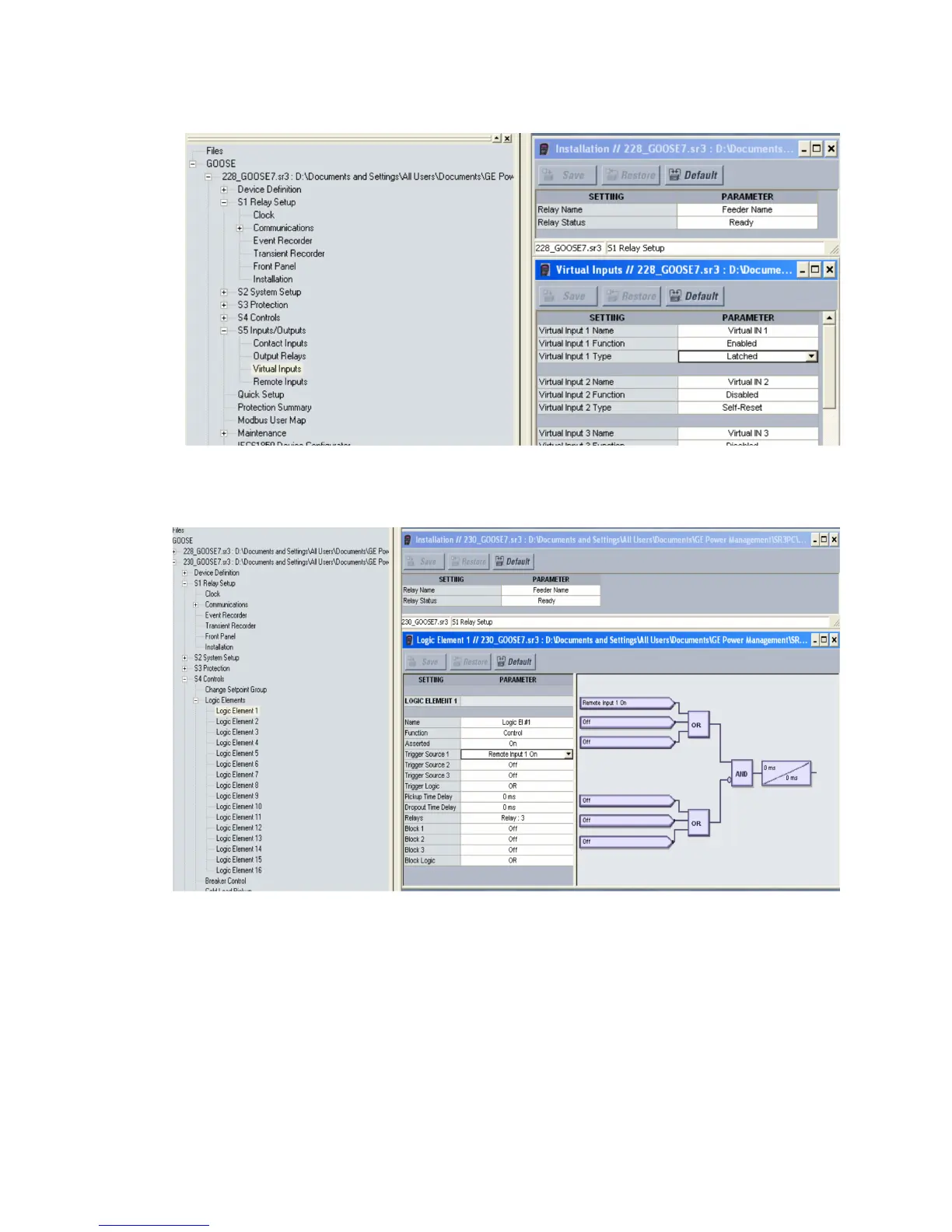

3.3. Before the final step of downloading the settings to each relay, we need to
enable the Virtual Input within 228_GOOSE7 such that we can change its
status.
3.4. Since Remote Input 1 of 230_GOOSE7 will receive the status of the Virtual Input
of 228_GOOSE7, we must configure a logic element within 230_GOOSE7 to use
the status of Remote Input 1 to drive the status of Relay 3 as shown. Once these
settings have been saved we can proceed to the next step: downloading the
offline Settings files to the relays.
