TEST SEQUENCE
[EN] English 93 K0553 Revision D
The example below identifies the areas or ‘fields’ of the screen where user entries from the CSV
file are used to format the screen layout and specific test information.

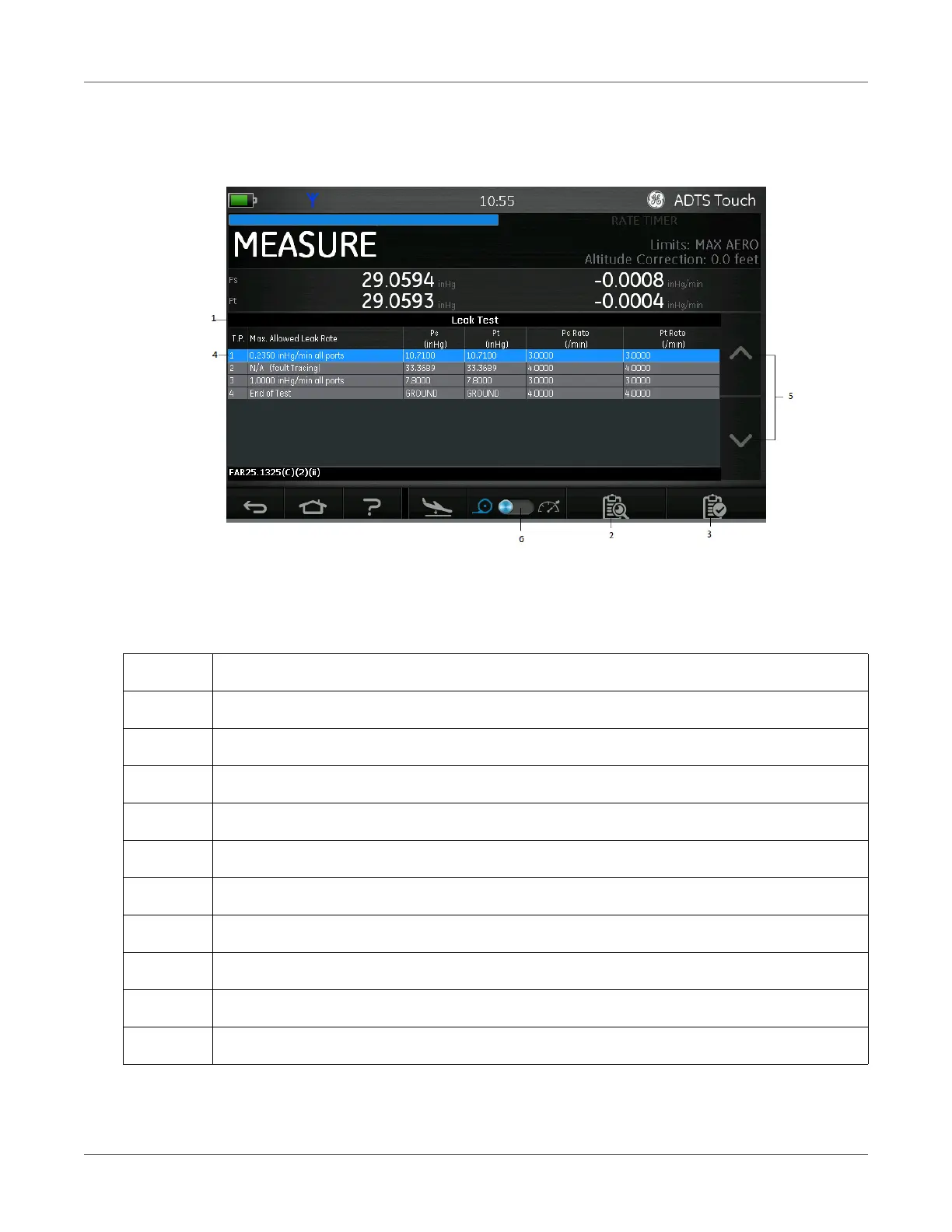

Figure 3-37: Test sequence screen based on Data Field input
1 Test table title, e.g. leak Test, which may be used as a title for a page of test aims
2 Test reference column header
3 Message text/prompt message
4 Test Procedure (T.P.) step reference (1....4)
5 Test advice notes
6 Ps (inHg) requested aim
7 Pt (inHg) requested aim
8 Ps Rate (inHg/min) requested aim rate
9 Pt Rate (inHg/min) requested aim rate
10 Current Ps and Pt aim indications
11 Current Ps and Pt aim rate indications
