M
ANUAL
V
ENTING
OF
THE
A
IRCRAFT
P
ITOT
AND
S
TATIC
S
YSTEMS
K0553 Revision D
78
[EN] English

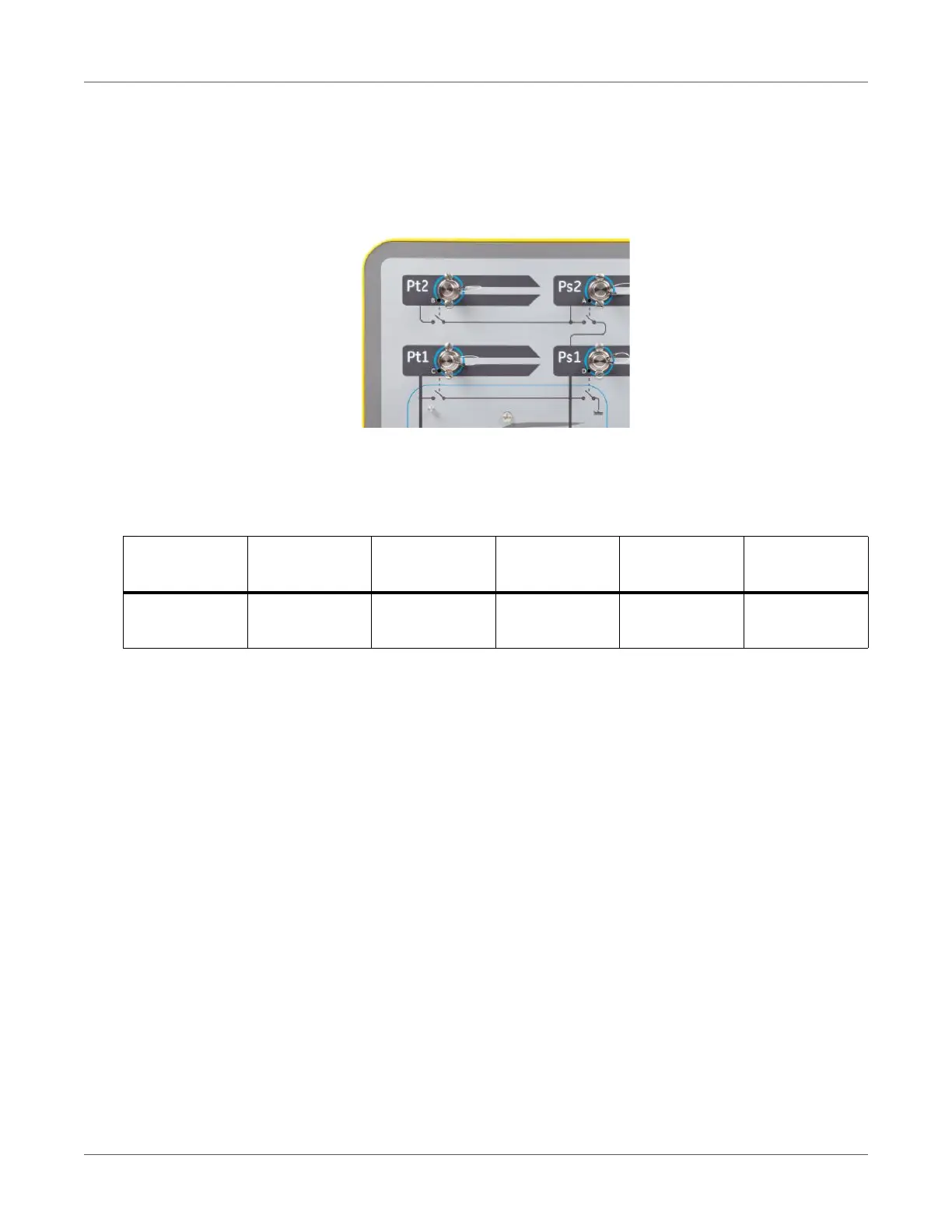

Figure 3-29: Manual let-down ADTS554F
Number of
Channels
Application
1st Valve open
2nd Valve open
3rd Valve open
4th Valve open
4
Pitot & Static
Pilot & Copilot
Pt2 to Ps2 (B)
Pt1 to Ps1 (C
)
Ps2 to Ps1 (A)
Ps1 to Atm (D
)
87
89
Table of Contents
Scope
3
Safety
3
Pressure
3
Toxic Materials
3
Marks and Symbols on the Equipment
4
Compliance Statements
5
Abbreviations
11
Glossary
14
Conversion Chart
16
Unit Conversion
16
Table of Contents
17
Introduction
19
ADTS542F General Arrangemen
21
Adts542F
21
Test Set Status Indications
22
Power on and Self Test
22
Aircraft Status
22
ADTS552F General Arrangement
23
Adts552F
23
ADTS553F General Arrangement
24
Adts553F
24
ADTS554F General Arrangement
25
Adts554F
25
ADTS Touch
26
Status Indicators
27
Dashboard Status Indicators
27
Pressure Mode Selection
28
Measure/Control Mode
28
Pressure/Aeronautical Units Selection
28
Dual Hand Terminal
29
ADTS Touch Slave
30
Installation
31
Standard
32
Options
32
Packaging
32
Environment
33
Packing for Storage or Transportation
33
Safety Precautions
35
Important Notice
35
Power Supply
35
Returned Goods Procedure
35
External Functional Earth/Ground Terminal
36
Power Supply Connection
36
Fuses
36
Pneumatic Pressure Connections
37
Positioning the ADTS
38
Operation
40
Preparation
41
Wired Connection
43
Power-Up Routine
43
Wireless Connection
44
ADTS Power-Up Self Test Screen
44
ADTS Power-Up Self Test Screen with Bluetooth/Epr
44
Wireless Connection on ADTS542/552F
45
To Establish a Wireless Connection
45
Wireless Connection on ADTS553/554F
45
Dashboard
47
Test Sequence
48
Measure Mode Screen - Single Channel
49
Measure Mode
49
Pitot Static
49
Measure Mode Screen - Multi Channel
50
Control Mode
50
Control Mode Screen - Single Channel
51
Control Mode Screen - Multi Channel
51
ALT, CAS and Mach
52
Numbered Keypad Screen
52
Nudge Increment/Decrement Factor Selection
53
CAS (CAS1, CAS2 on ADTS554)
53
Mach (MACH1, MACH2 on ADTS554)
53
Qc (Qc1, Qc2 on ADTS554)
54
Altitude Dropback
54
Pt (Pt1, Pt2 on ADTS554)
54
Ps (Ps1, Ps2 on ADTS553/554)
54
Rate Timer Panel - Single Channel
55
Rate Timer Mode
55
Rate Timer Panel - Multi Channel
56
To Set the WAIT Period
56
Set Time Panel
56
To Set the “TEST” Period
57
To Start and Stop the Rate Timer
57
Measured Average Rates of Change
58
Settings Menu Overview
59
Settings
59
ADTS Settings
60
Intensity
60
Volume
60
Theme
60
Pressure Units
61
Aero Units
61
Altitude Correction
61
PS1-PS2 Differential Limit in 3 Channel Operation
61
Airspeed Mode
62
Temperature Units
62
ADTS Limits
62
Max Aero (ADTS542)
63
ADTS Max (ADTS552F/553F/554F)
63
Max Aero (ADTS552F/553F/554F)
64
Helicopter
65
Fixed Wing
65
ADS Probe
66
Edit Limits
67
Create New Limits
67
Delete Limits
68
Auto Zero
68
Change Supervisor PIN
68
To Turn Auto Zero on and off
68
Configuration
69
Regional Settings
69
Date
69
To Change the Date Setting
69
Bluetooth Autoconnect
70
Area of Use
70
Screen Rotation
70
Language
70
Tools
71
Calibration (Calibrate Sensors)
72
To Enter New Correction Values for Ps
72
Calibration (Software Upgrade)
73
ADTS Touch Software Upgrade
73
ADTS Software Upgrade
73
List of Devices
73
Communications Main Screen
74
To View the Status Information for the ADTS Touch or ADTS
75
Save/Recall ADTS Touch Settings
76
Displays a List of Previously Saved Settings
76
ADTS Manuals Screen
78
Customer Documents
78
Go to Ground Main Screen - Single Channel
79
Go to Ground
79
Go to Ground Main Screen - Multiple Channel
80
Set Rate Panel
81
Start Go to Ground Action
82
Aircraft Going to Ground - Single Channel
82
Aircraft Going to Ground - Multiple Channel
83
Hold Status During Go to Ground Ramp
84
Aircraft at Ground
84
ADTS Status on Power Failure
86
ADTS Status on Restoration of Power
86
Two Courses of Action Are Possible at this Point
86
Manual Venting of the Aircraft Pitot and Static Systems
86
Manual Let-Down ADTS553
87
Manual Let-Down ADTS542F and ADTS552F
87
Manual Let-Down ADTS554F
88
Mutli-Channel Operation
89
Settings Menu to Disable Static Channel
89
Angle of Attack (Smart Probe) Testing
89
Multi-Channel Advanced Features
89
Preparation for Testing
91
Aircraft Connections
91
Example Basic Aircraft Test Operation Using the ADTS542F
91
Altimeter and Airspeed Indicator Testing
92
Limits Protection Checks
92
Leak Checks
93
Typical Aircraft Instrument Performance Checks
93
End of Testing
94
Setting the EPR - Method 1
95
Engine Pressure Ratio (EPR)
95
Setting the EPR - Method 2
96
EPR Limits
97
Test Sequence Screen
99
Test Sequences Menu
100
Test Procedure Selection Screen
100
Creating Custom Test Sequences
101
Test Sequence Screen Based on Data Field Input
102
Test Sequence Data Fields
103
Saving Finished Test Sequences as CSV Format
104
Saving the Test Sequence File
104
ADTS Touch File Explorer Window
104
How to Use the Pt Only Control Mode
106
Example of Pt Only Control Mode
106
Pt Only or Ps Only Control Modes
106
Pt Only Control Mode
107
Bluetooth
108
Optimum Pairing Procedure
109
Bluetooth Reliable Coverage Area
109
External Bluetooth Antenna
111
ADTS TOUCH-ER (Extended Range) Bluetooth
111
Bluetooth Antenna Extension Kit
112
Calibration
114
Introduction
115
Important Note
116
PIN Codes and PIN Protection
116
Precision
117
Calibration Process
117
Suggested Two-Point Calibration Adjustment Points
118
Calibration Equipment Uncertainty
118
Calibration Requirements ADTS552/553/554F
118
Suggested Calibration Check Points
119
Calibration Check Points
119
Preliminary Operations
120
Calibration Check
120
Calibration Description
120
Calibration Adjustment
121
Adjustment Points
121
Completion of Sensor Calibration
122
Maintenance
123
Maintenance Chart
124
Introduction
124
ADTS Touch Battery Pack
125
Battery Care and Maintenance
125
Maintenance Tasks
126
Replacing the Output Connector O-Ring
127
Replacing a Fuse
127
Routine Maintenance
127
Downloading Software Updates
128
Software Updates
128
Installing Software Updates
129
Software Update Folders
129
To Install Software Updates for the ADTS and ADTS Touch
129
Software Updates-ADTS Touch
130
Downloading ADTS Manuals
130
Enter Name of File to Save
131
Installing ADTS Manuals or Customer Documents
131
Testing and Fault Finding
132
Introduction
133
Standard Serviceability Test
134
Pressure Leak Check
135
Set-Up
135
ADTS Leak Check
135
Vacuum Leak Check
136
Front Panel Four LED Flash Code
137
Fault Codes and Error Messages
137
Error Codes
138
Specification
152
