P
OSITIONING
THE
AD
TS
[EN] English
30
K0553 Revision D
CAUTION
OBSERVE THE APPROPRIATE SAFETY INSTRUCTIO
NS AND TESTING PROCEDURES DETAILED IN
THE AIRCRAFT MAINTENANCE MANUALS AN
D COMPONENT MAINTENANCE MANUALS.

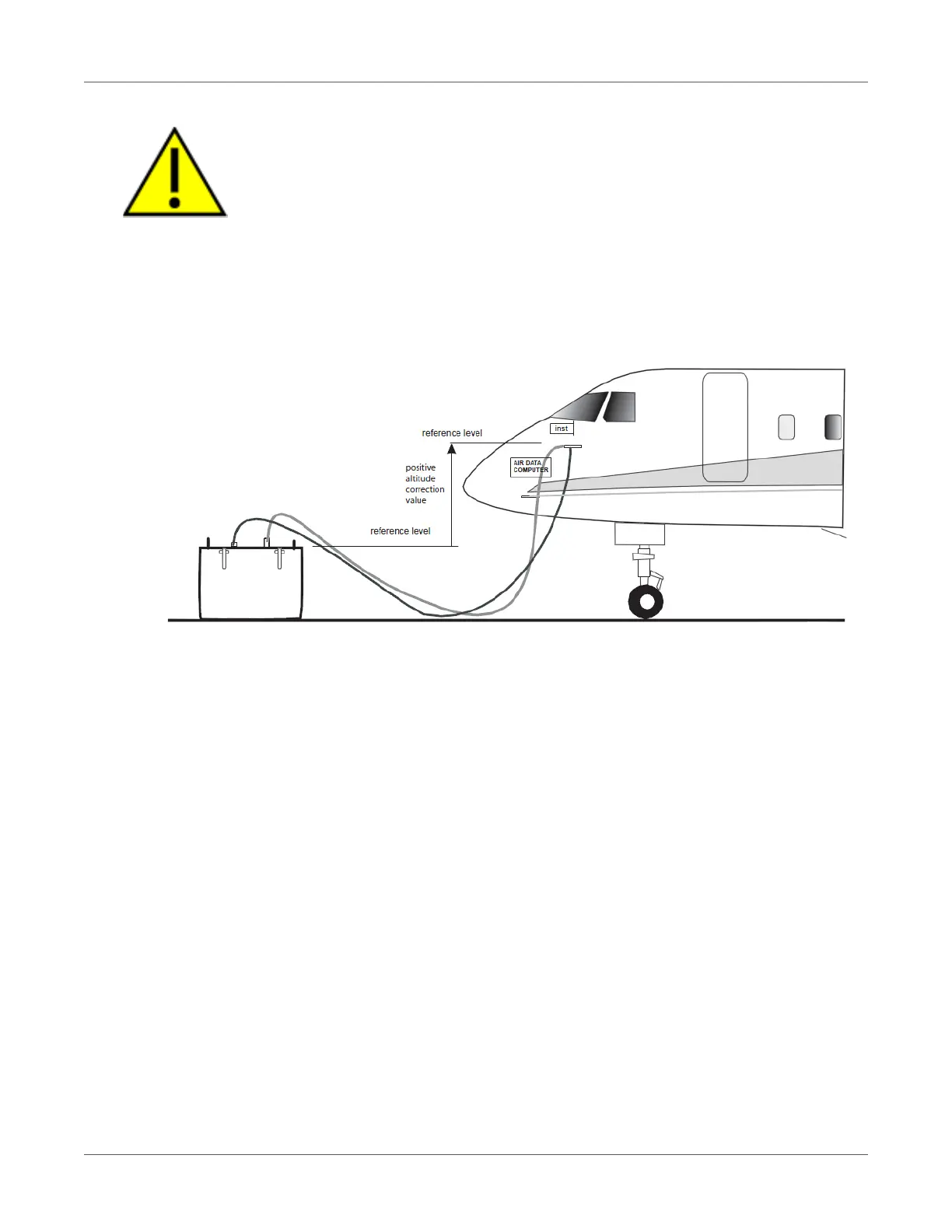

Figure 2-1:
ADTS Positioning
NOTE
:
Enter a positive correction factor when ADTS is
below the aircraft refere
nce. Enter a negative
correction factor when ADTS is
above the aircraft reference.
38
40
