(2)Model:YS1FA (AED07KP,AED09KP)
Signal Transmitter

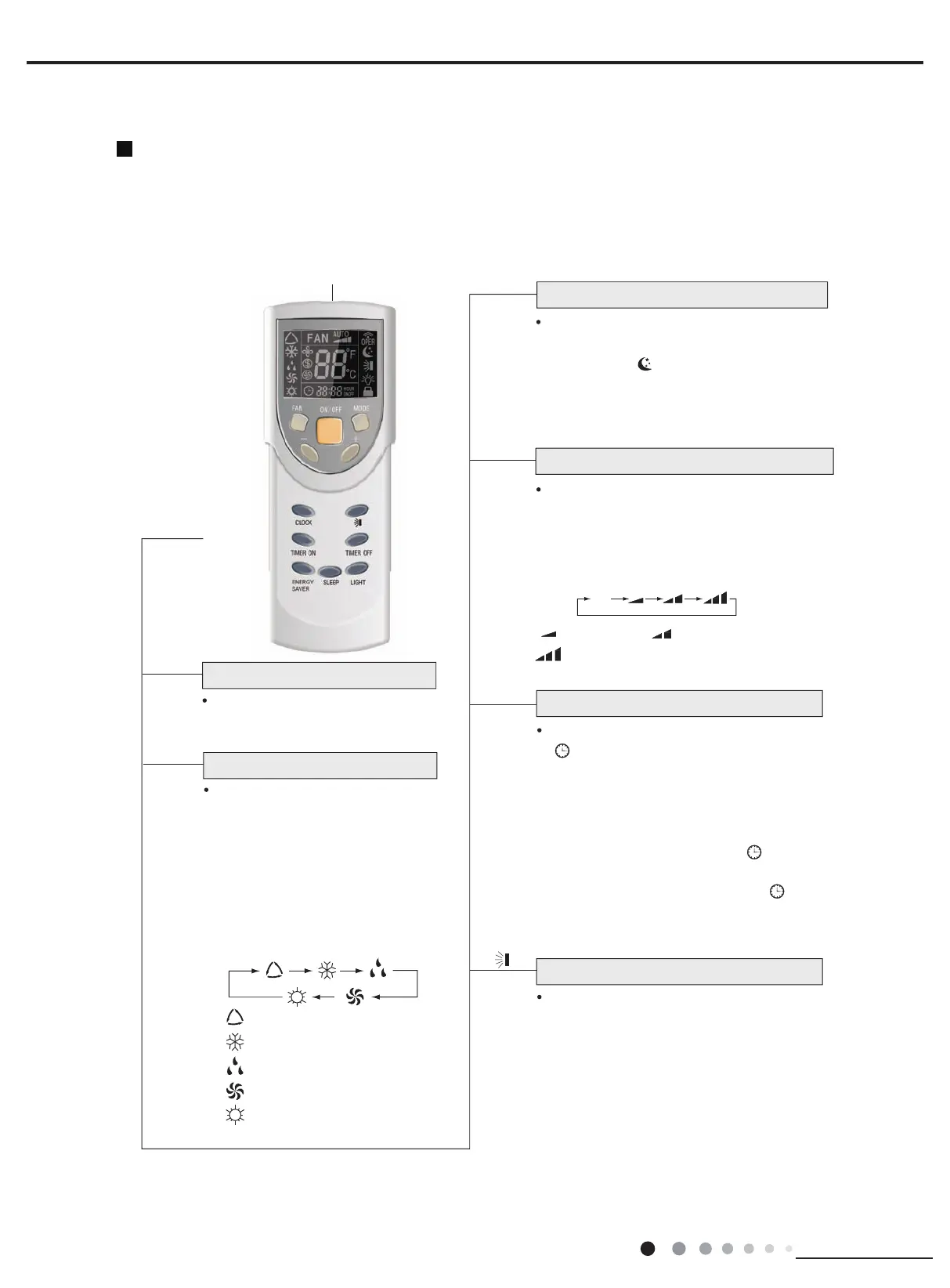

Name and Function of Wireless Remote Control
Note: This wireless remote control is universal,and it could be used for many
other models. The buttons that are not relevant to this unit will not be
described below.
ON/OFF button
ON/OFF
Remote Control
AUTO
COOL
DRY
FAN
Press this button to turn on the unit,
press it again to turn off the unit.
(Only available for heating unit)
HEAT
setting temperature is 28
under HEAT mode,
25
under other modes.
℃
(82 F)
℃
(77 F)
MED
Press this button, AUTO,COOL,
DRY,
FAN,
HEAt mode can be
selected
circularly.
It is defaulted
AUTO mode after
powering on the
unit while the setting
temperature
will not be displayed.The initial
MODE button
MODE
Press SLEEP button to select sleep on
or sleep off. It is defaulted sleep off after
powering on. will be displayed once
sleep function is set on. The
sleep function
is not available under FAN or AUTO mode.
SLEEP button
SLEEP
Press this button, AUTO,LOW,MED,HIGH
speed can be circularly selected. After
FAN button
FAN
powering on the unit, auto fan speed
is defaulted.Under DRY mode, only
low fan speed can be set up.
LOW
HIGH
Press this button, the clock can be set up,
blinks and displays.Within 5
CLOCK button
SWING button
CLOCK
seconds, the value can be adjusted by
pressing + or - button,if consecutively
o
o
AUTO
press this button for more than 2 seconds,
the value will be fast increasing. Press
CLOCK again during blinking, will be
displayed
and the clock setting is done. It
is defaulted displaying 12:00 and
timer time could be displayed.
after powering on.Either clock time or
When it is pressed,the louvers start to
rotate automatically and stop when
repressed.
