GE AEE07KP - Cross Beam, Louver, Lever, and Fan Blade Removal

64
Service Manual
Installation and Maintenance
4
5

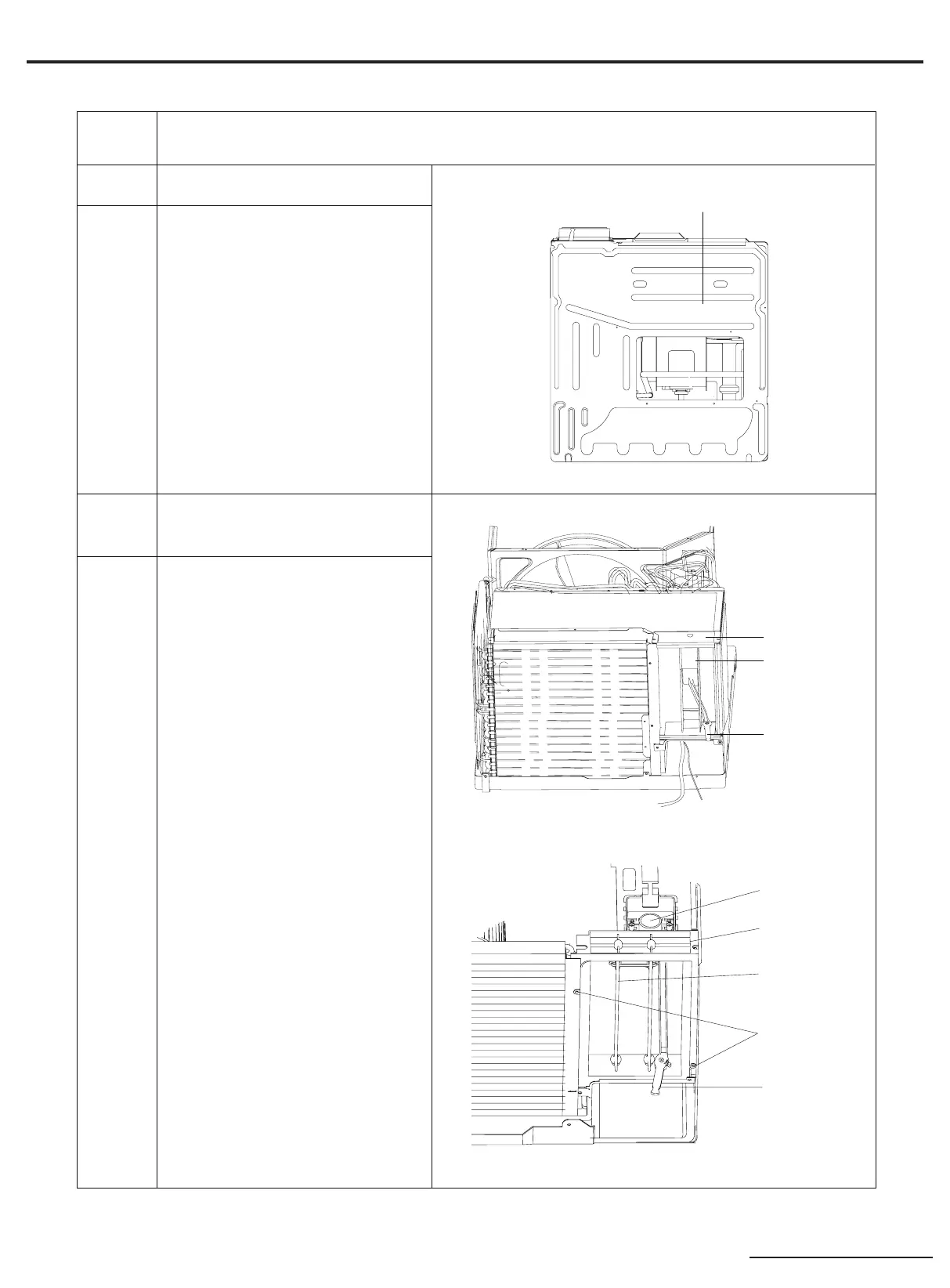

Remove top cover
Remove the screws fixing top cover
and then remove the top cover.
Remove cross beam, swing louver
and air door lever
Take out the cross beam; take out the
swing louver; remove the screws fixing
air door lever and then remove the air
door lever.
Applicable for AEE07KP/AEE09KP/
AEE12KP
Applicable for AEE18KP/AEE24KP
screw
top cover sub-assy
cross beam
swing louver
swing louver
air door lever
air door lever
swing motor
swing support
Steps
Procedure
