3-2 ApexPro™ 2001989-301A- draft 1
Equipment setup
Transmitter setup
Views

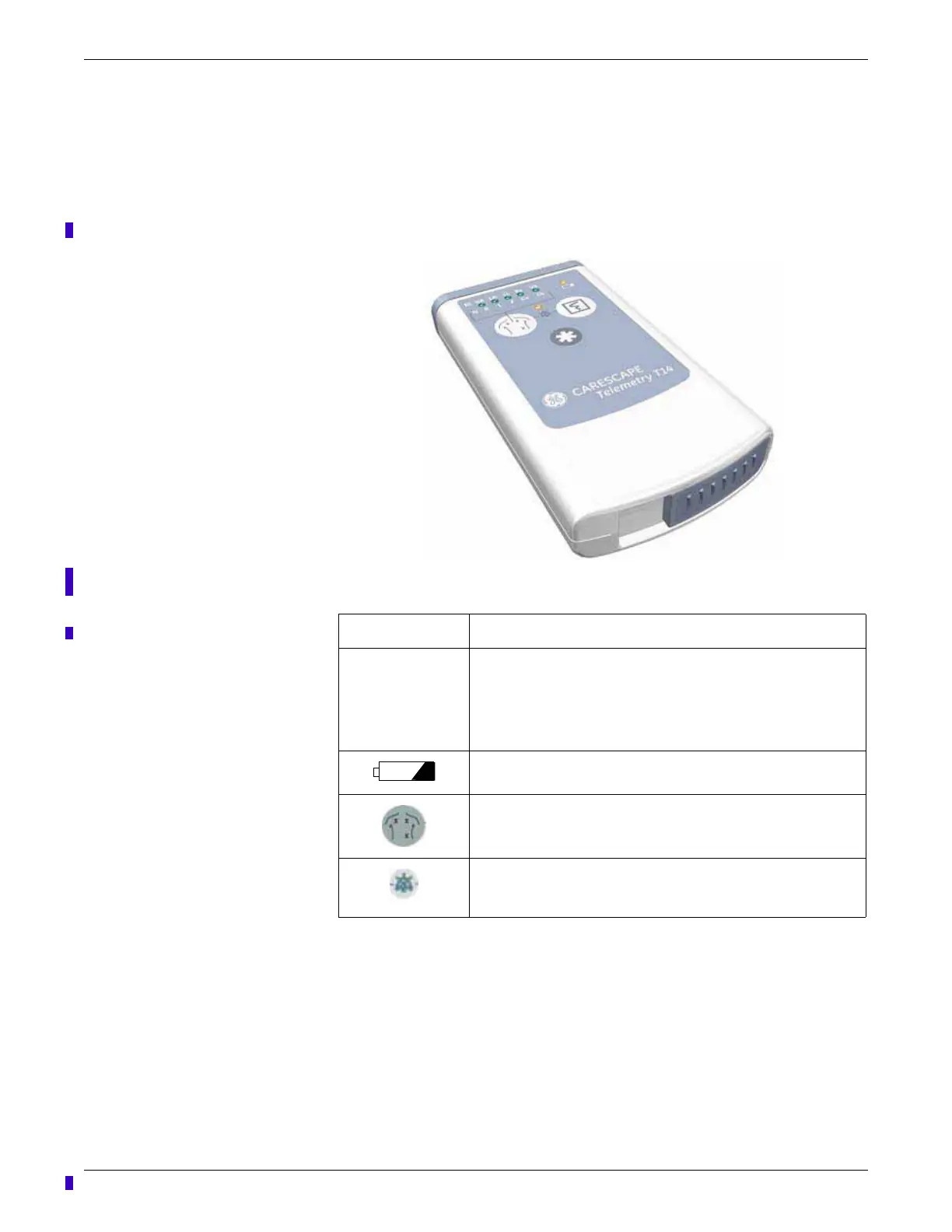

The transmitter has the following buttons and LEDs:
102A
CARESCAPE Telemetry T14 Transmitter
Button/LED Function
RL RA LA LL Va Vb
N R L F Ca Cb
When first powered up, the lead LEDs flash rapidly, followed by two
slow flashes. The transmitter begins functioning after the two slow
flashes.
When any of the transmitter's buttons are pushed, the lead LEDs
flash twice.
When the battery power is running low, the change battery LED
flashes.
When pressed, the lead LEDs flash twice. If a lead is valid, its LED
stays lit for one minute.
When the Pause Alarm condition occurs, the pause alarm LED
flashes until the condition ends. See Pausing alarms at the
transmitter on page 5-5.
