Equipment setup
2001989-301A- draft 1 ApexPro™ 3-9
3. Turn the oximeter on. The digital display turns on and the power LED (horizontal
bar) flashes. The digital display stays on for one minute.
Once connected, follow your unit’s protocol for attaching the transmitter and the
oximeter to the patient. A common method is to place them back-to-back in the same
pouch and belt them on the patient.

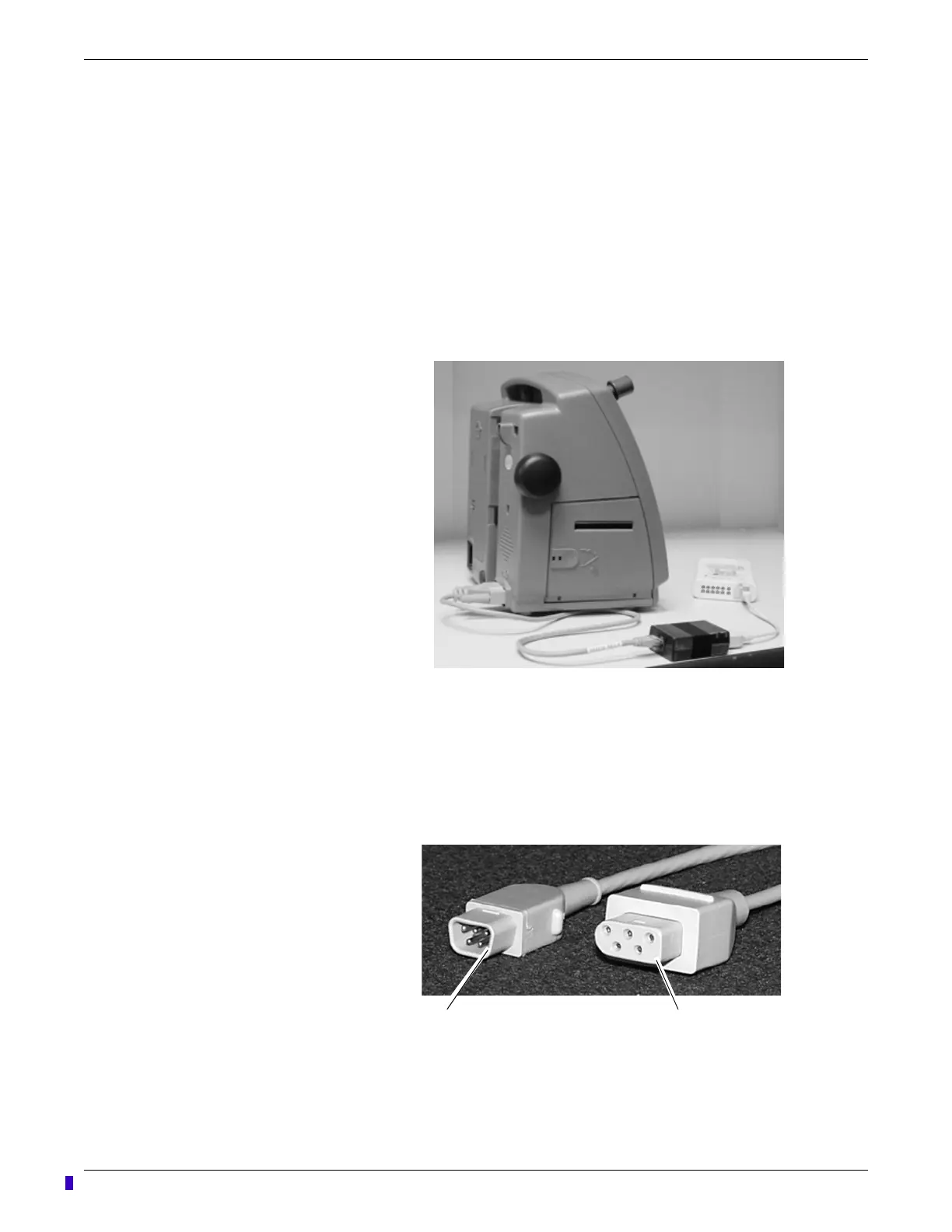

Dinamap PRO monitors
A DINALink serial cable is used to connect the transmitter to the Dinamap PRO 100–
400 series monitors. The interconnect cable connects to either of the interface ports
on the transmitter.
425A
Interconnection cables
The interconnection cables used to connect the transmitter with the Apex oximeter
and/or the blood pressure monitor are not the same as those used with the Apex S
transmitter (CD Telemetry-LAN monitoring system). The connector ends that are
plugged into the transmitters are different and are not interchangeable.
423A
ApexPro system interconnection
cable connector
CD Telemetry-LAN monitoring system
interconnection cable connector
