Equipment setup
2001989-301A- draft 1 ApexPro™ 3-5
307C

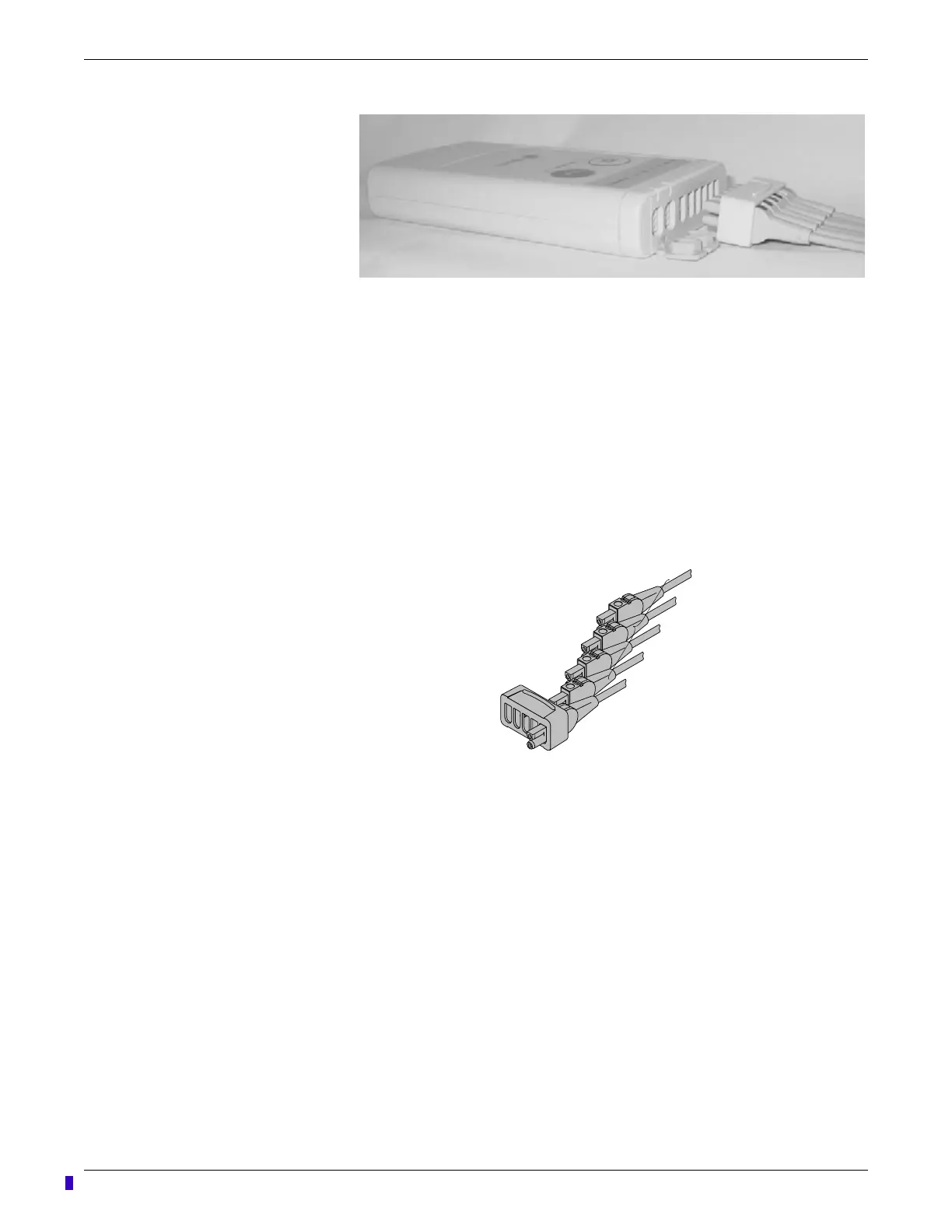

To disconnect the leadwire set from the transmitter, grasp the molded end or the
combiner firmly and pull away from the transmitter.
Electrode attachment
1. Attach leadwires to the transmitter by plugging the Multi-Link leadwire set into
the transmitter.
To use sets of Multi-Link individual leadwires, firmly press the individual
leadwires into their appropriate locations on the combiner. Use the colors on the
leadwires to place them in corresponding order with the colors that appear on the
back of the transmitter.
308B
2. Attach leadwire clip to the terminal on the electrodes. Take care to attach the
color-coded clips to the corresponding electrode locations.
3. Loop the leadwires and secure them to the patient with tape. Stress loops prevent
the connection to the electrode from being loosened or pulled apart as the patient
moves.
NOTE
Do not tape across the electrode.
