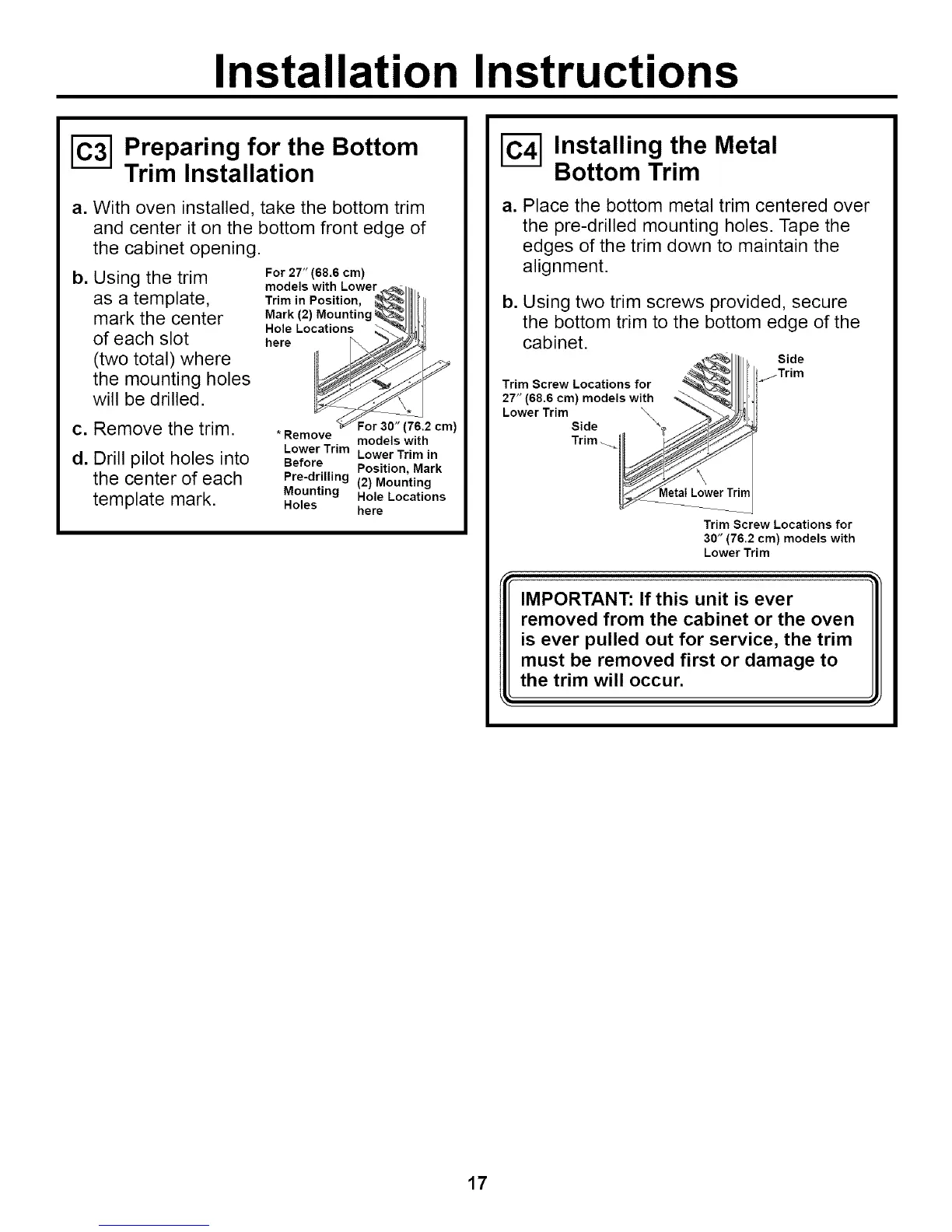

Installation Instructions
Preparing for the Bottom
Trim Installation
a. With oven installed, take the bottom trim
and center it on the bottom front edge of
the cabinet opening.
b. Using the trim
as a template,
mark the center
of each slot
(two total) where
the mounting holes
will be drilled.
c. Remove the trim.
d. Drill pilot holes into
the center of each
template mark.
For 27" (68.6 cm)
Tmi°m_i_p_oitsi_i_o°,_er_jllllllI
Mark (2) Mounting _IIH
Hole Locations _J_i
here
__,2 cm)
* Remove models with
Lower Trim Lower Trim in
Before Position, Mark
Pre-drilling (2) Mounting
Mounting Hole Locations
Holes here
Installing the Metal
Bottom Trim
a.
Place the bottom metal trim centered over
the pre-drilled mounting holes. Tape the
edges of the trim down to maintain the
alignment.
b. Using two trim screws provided, secure
the bottom trim to the bottom edge of the
cabinet.
, Side
Lower Trim _, "_'_!,
Side t _I_Y2
Trim Screw Locations for
30" (76.2 cm) models with
Lower Trim
IMPORTANT: If this unit is ever
removed from the cabinet or the oven
is ever pulled out for service, the trim
must be removed first or damage to
the trim will occur.
