4-14 CARESCAPE V100 Vital Signs Monitor 2048723-002C
Maintenance: Calibration procedures and tests
Setup
1. Connect manometer to unit as shown.
2. ‘T’ an inflation bulb into the pneumatic setup.

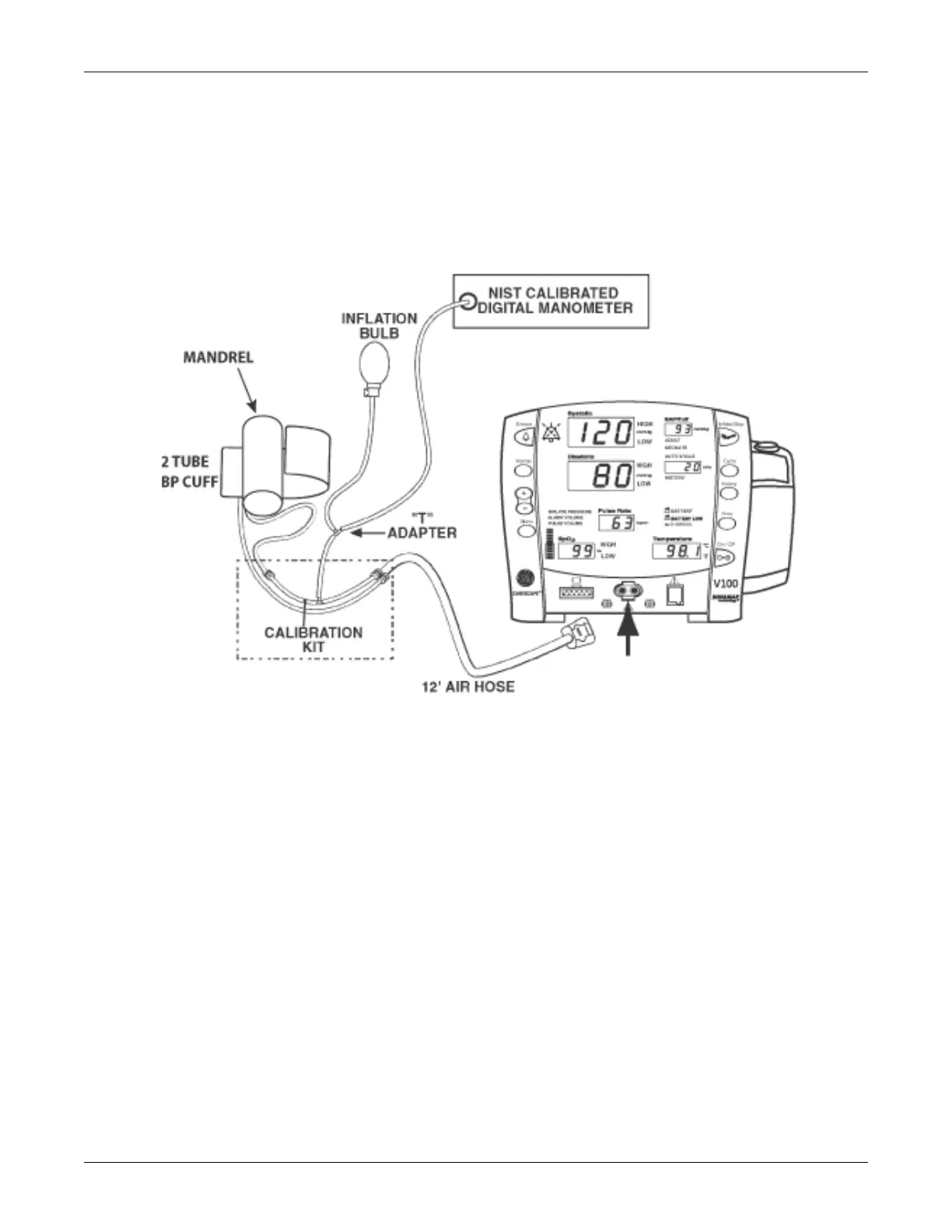

3. Consult the following diagram for pneumatic setup guidelines.
NIBP tests
Pneumatic leakage testing
NOTE
To enter Service Mode press and hold the Cycle button while pressing the
On/Off button.
1. Turn unit on and enter Service Mode.
2. Press Cycle button and 1 should appear in the min window.
3. Close the valve on the inflation bulb.
4. Using the inflation bulb, inflate the system to 210 mmHg.
5. Allow the system to stabilize for 5 seconds (it is normal to see some
decrease in pressure at this point).
6. Start the stopwatch and record the pressure value.
7. After 60 seconds record the pressure value.
To Next Page
