FHSD700C Series Product Guide
GE Security
1. Knock-out cable entry holes
2. M5 Chassis grounding stud
3. RS232 connector
4. Ethernet connector
5. Fuse (1 A)
6. Main I/O board
7. Beacon connector
8. Display & valve connector
9. Programming connector
10. Optional I/O modules
11. Drop-down display panel

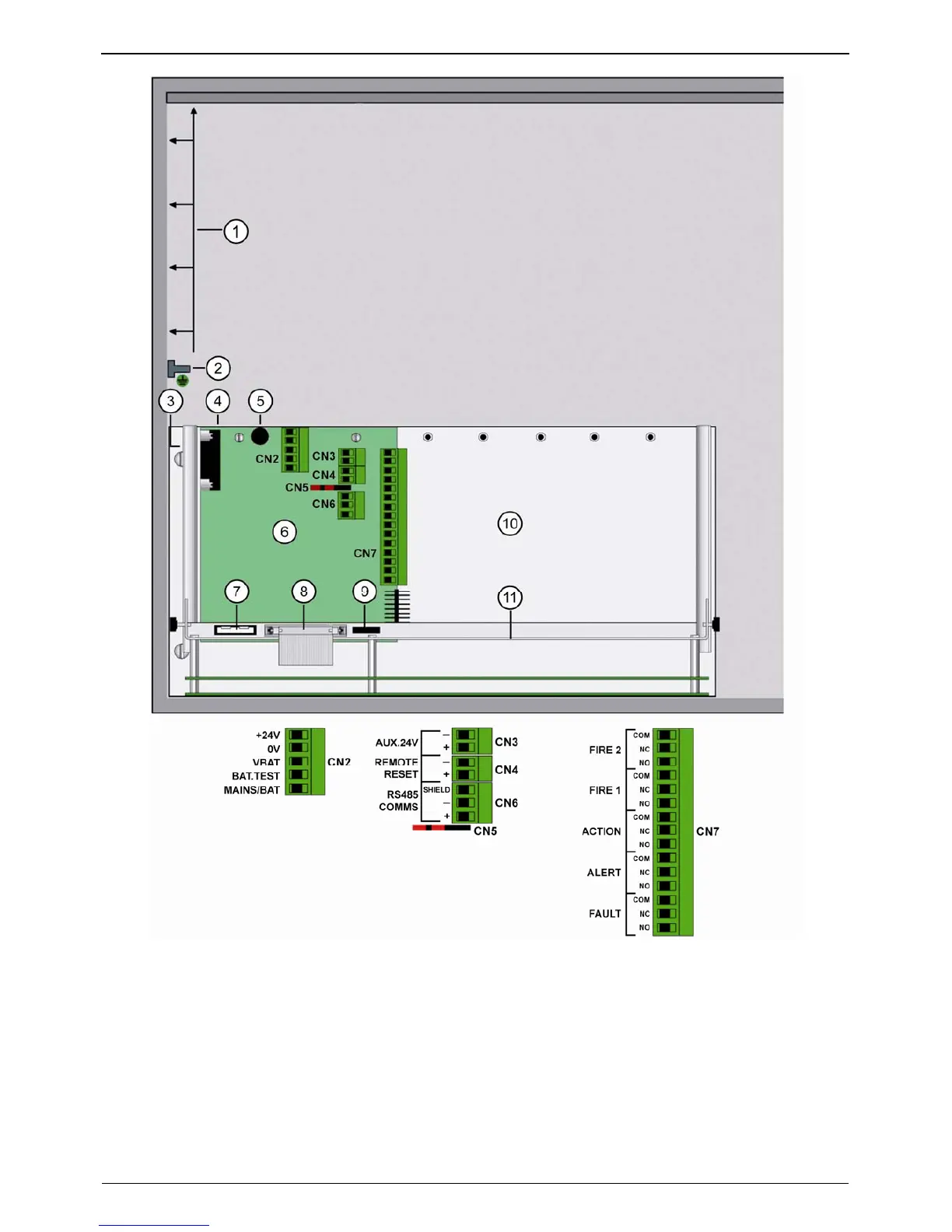

Figure 3-6: FHSD721C / FHSD721DC to FHSD7215DC input and output interfaces
