GE GDT550HSDSS Installation Instructions

TOOLS YOU WILL NEED:
■ Phillips-head screwdriver
■ 1/4" and 5/16" nutdriver
■ 6" Adjustable wrench
■ Level
■ Carpenter's square
■ Measuring tape
■ Safety glasses
■ Flashlight
■ %XFNHWWRFDWFKZDWHUZKHQÀXVKLQJWKHOLQH
■ 15/16" socket (optional for skid removal)
■ Gloves
■ Pliers
For New Installations Only:
■ Tubing cutter
■ Drill and appropriate bits
■ Hole saw set
90° Elbow,
Ferrule and
Compression Nut
Hot Water Line
Hand
6KXW2ȹ
Valve
Side Trim Pieces
(on some models)
Hole Saw Set
Level
Thread
Seal Tape
Air Gap
Strain Relief
Drain Hose
Hose Clamp
#8 Hex-Head Mounting
Bracket Screws
1/4" and 5/16"
Nutdriver
15/16" Socket
Bucket
Tubing Cutter
Drill and Bits
Flashlight
Gloves
Phillips-Head
Screwdriver
Carpenter's
Square
6"
Adjustable
Wrench
Safety Glasses
Pliers
Installation Preparation
2
Drain Hose Hanger
Measuring Tape

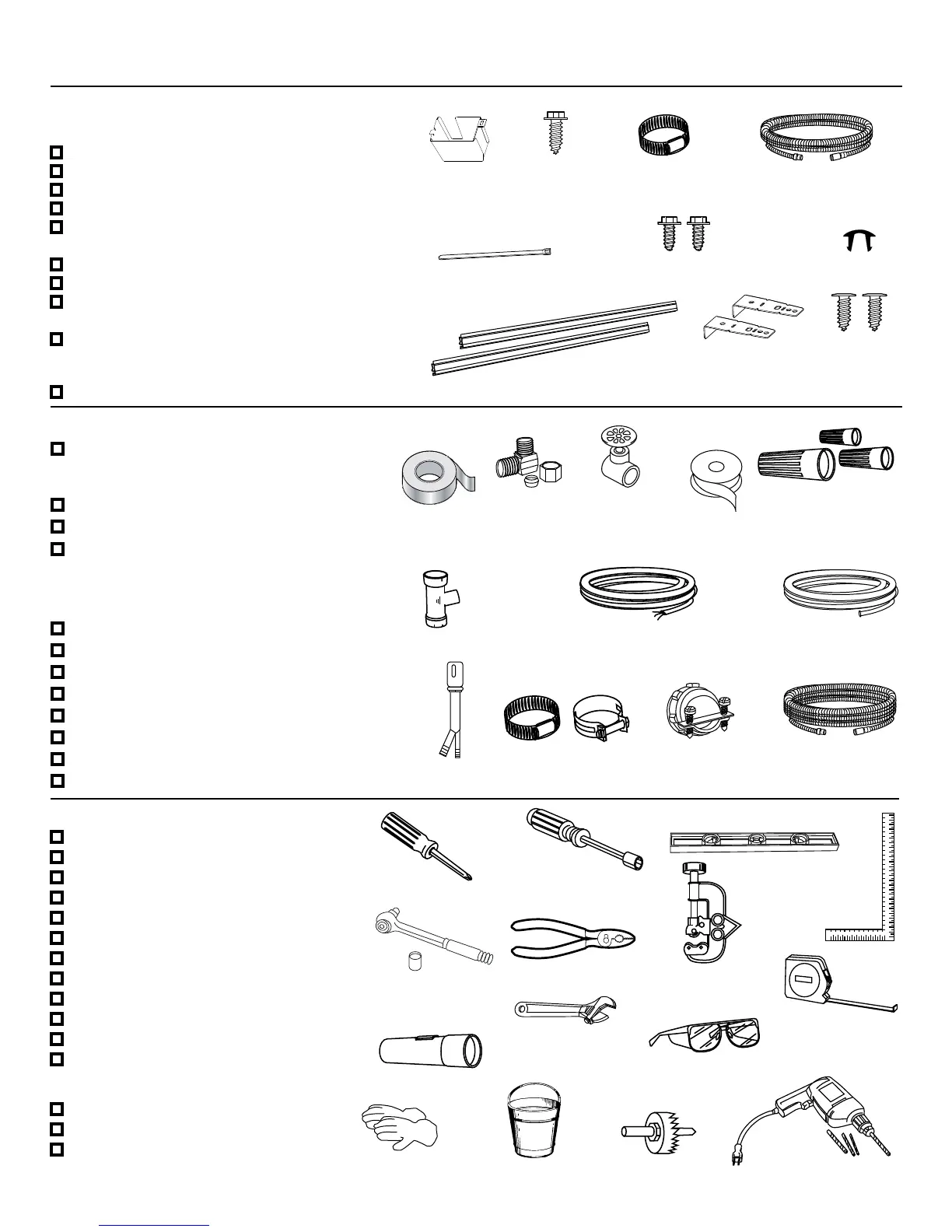

PARTS SUPPLIED
IN INSTALLATION PACKAGE:
■ Junction box cover and #10 hex-head screw
■ Hose clamp
■ Drain hose (approximately 78" long)
■ Drain hose hanger
■ 2 #8-18 hex head screws to secure brackets to
washer tub frame
■ 2 Plug buttons
■ 2 side trim pieces (some models)
■ 2 mounting brackets for wood countertops or side
cabinets
■ 2 #8-18 x 5/8" Phillips special head screws, to secure
dishwasher to underside of countertop or to side
cabinets
■ Literature, samples and/or coupons
MATERIALS YOU WILL NEED:
■ Ferrule, compression nut and 90° elbow (3/8"NPT
external thread on one end, opposite end sized
to fit water supply)
■ Thread seal tape
■ UL-listed wire nuts (3)
■ Masking Tape
Materials Needed for
New Installations:
■ Air gap for drain hose, if required
■ Waste tee for house plumbing, if applicable
■ Electrical cable or power cord
■ Screw-type hose clamps
■ Strain relief for electrical connection
■ Hand shut-off valve (recommended)
■ Water line–3/8" minimum copper tubing
■ GPF12L drain hose (12' long), if needed
Junction
Box Cover
#10
Hex-Head
Junction
Box Screw
1/2" long
Optional
12' Drain Hose
GPF12L
Hose Clamps
Waste Tee
Electrical Cable
(or Power Cord, if applicable)
Wire Nuts (3)
Mounting
Brackets
#8 Phillips
Special
Head Screws
5/8" long
Plug Buttons
Masking Tape
(if applicable)
