GE GFWS1700H - Component Locator Views; Top and Front Component Identification

– 28 –

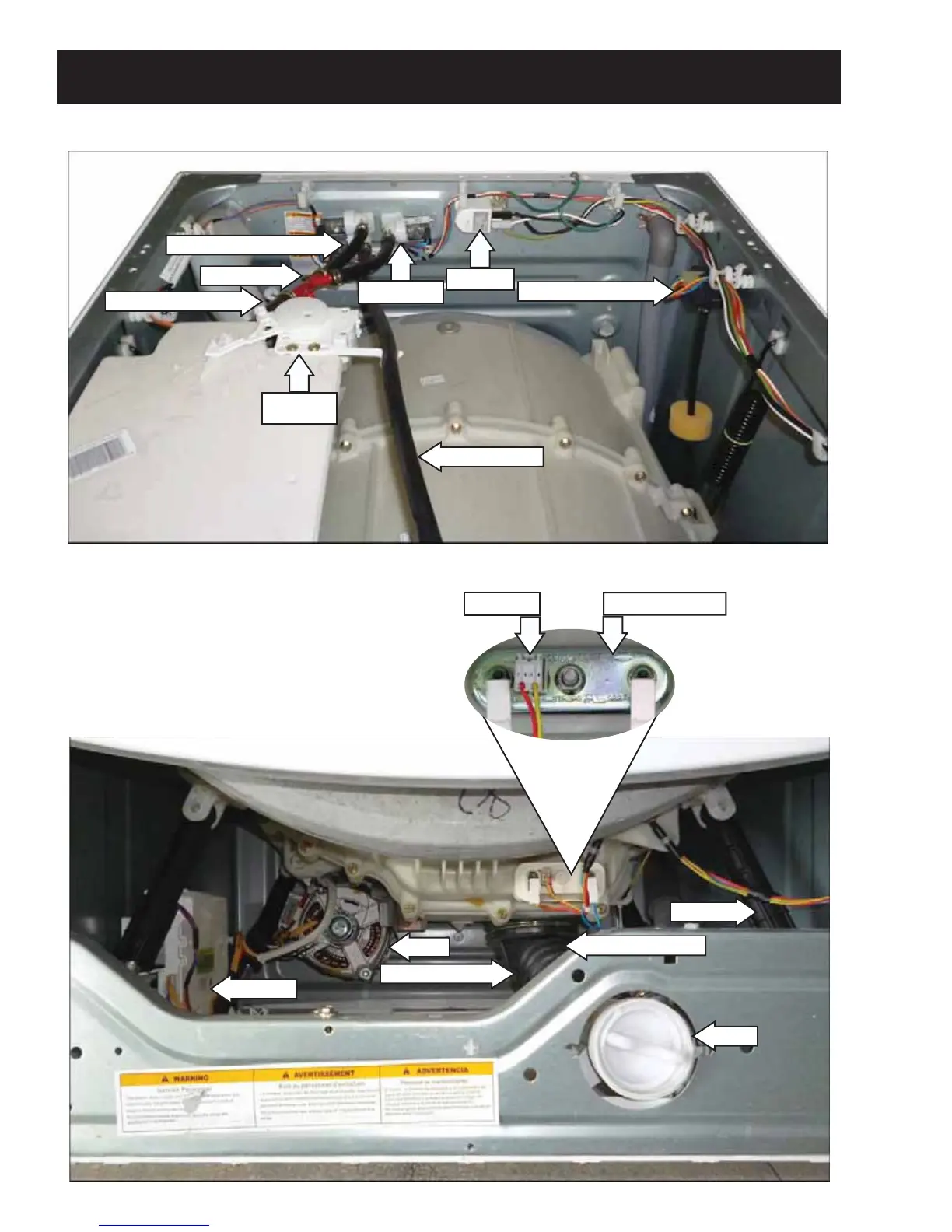

Component Locator Views
Top View
Front View
Water Level Senser
Water Valve
Line Filter
Dispenser Inlet Hose
Nozzle Hose
Water Valve Outlet Hose
3-Way Pipe
Dispenser
Assembly
Water Valve Outlet Hose
3-Way Pipe
Dispenser Inlet Hose
Dispenser
Assembly
Water Valve
Line Filter
Water Level Sensor
Nozzle Hose
Thermistor
Heating Element
Pump Outlet Hose
Tub Drain Hose
Pump
Damper
Inverter
Motor
Thermistor
Heating Element
Inverter
Motor
Tub Drain Hose
Damper
Pump Outlet Hose
Pump
