COMMISSIONING
REV6 /REV7 OI 248 (EN) 45
• Connect the multimeter to the terminals for UW1 in the operating
mechanism.
• Slowly reduce the gas pressure in the piping until UW1 is
reached. As you do so, compare the electric operating point with
the density monitor indication.
• Connect the multimeter to the terminals for UW2.
• Reduce the gas pressure further until UW2 is reached. As you do
so, compare the electric operating point with the density monitor
indication.
The escaping gas must be collected (e.g. with the SF
6
-multi ana-
lyser by DILO.

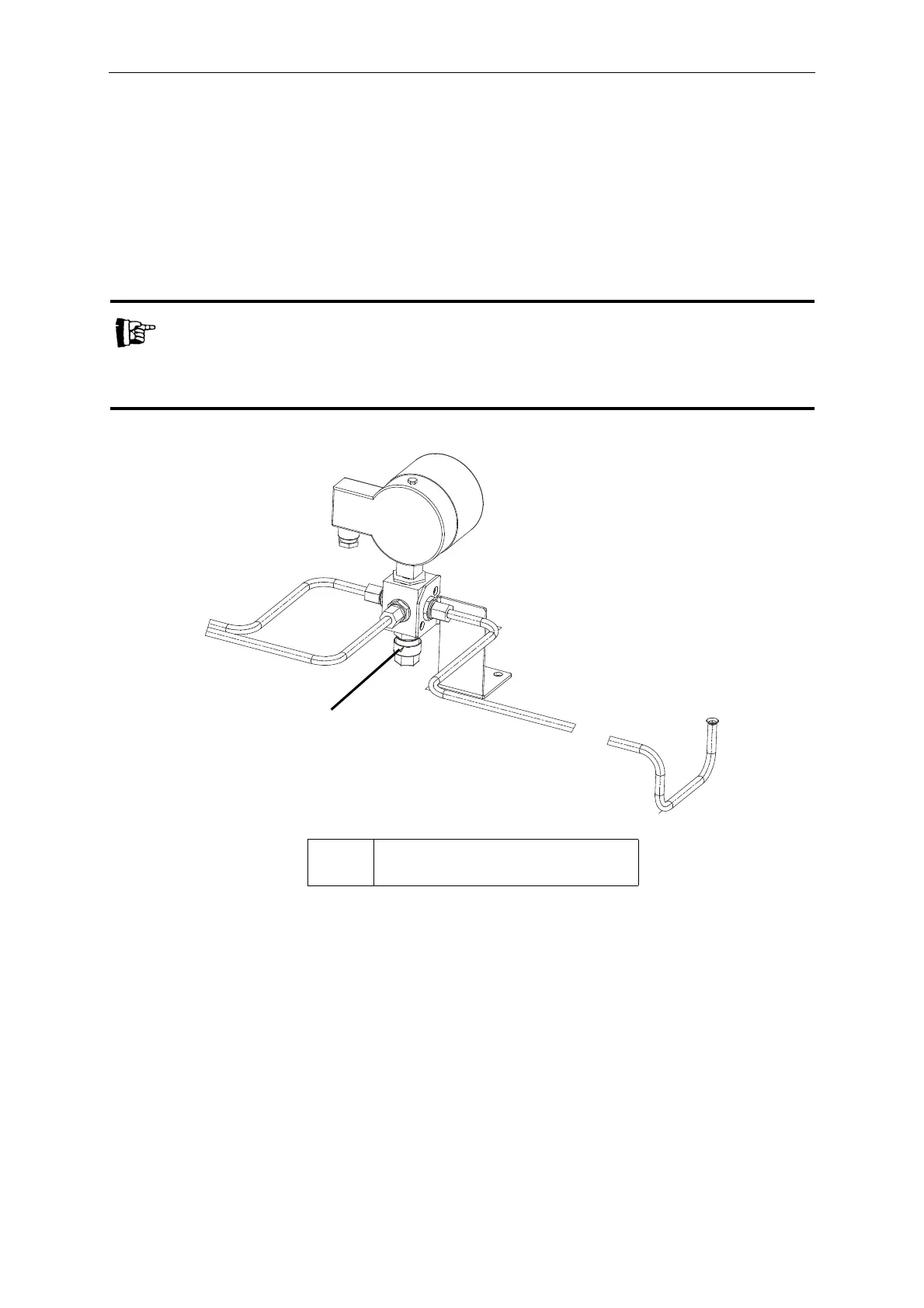

D Central supply connection / filler
block
