SPECIAL EQUIPMENT (OPTIONAL)
REV6 /REV0 OI 248 (EN) 99
12.1.2 Operating condition

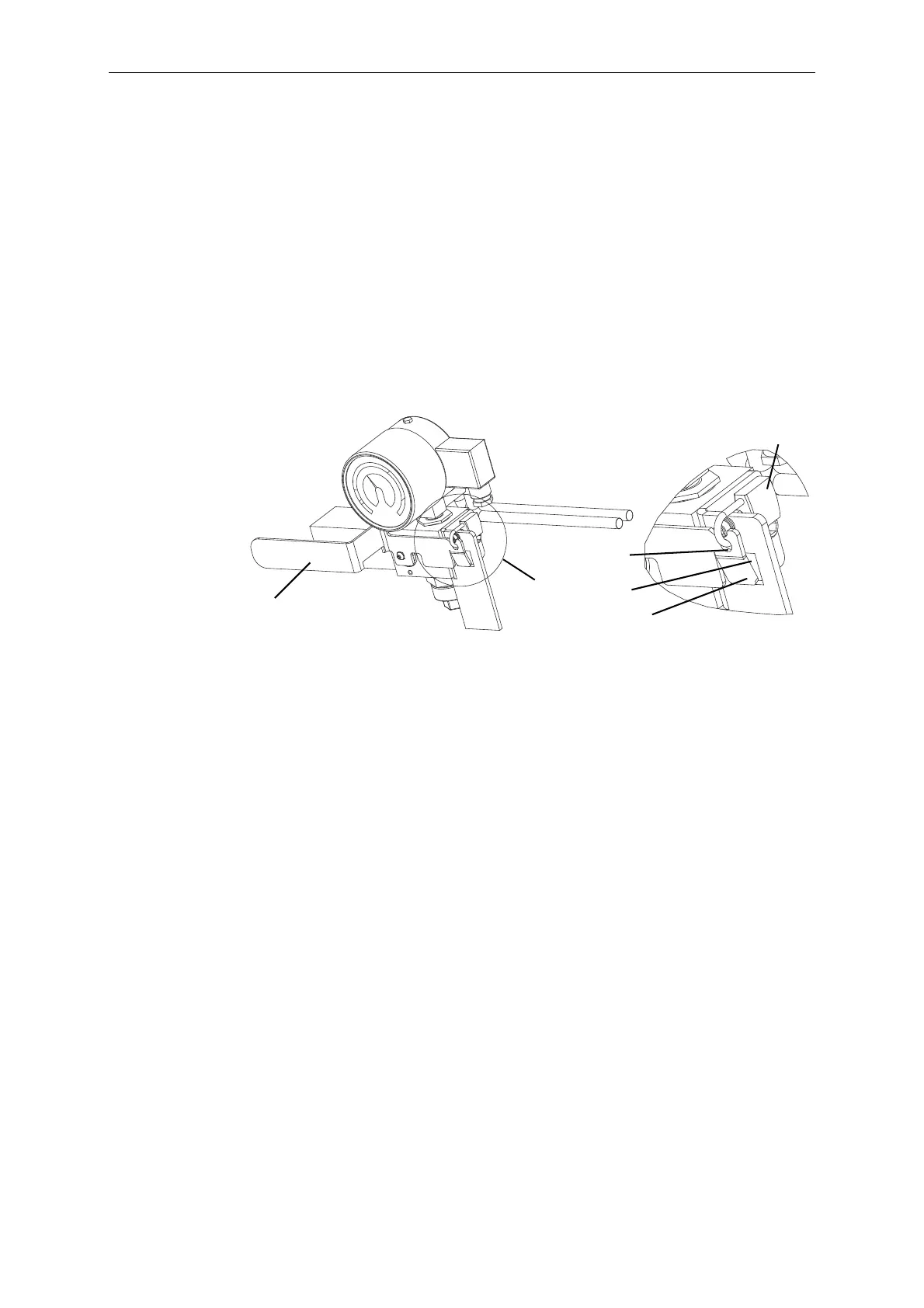

The shut-off valve Q1 is open, the gas compartments (G1) and
(G2) are connected to each other. The density monitor P1 monitors
the gas in the switchgear gas compartments. The central fill cou-
pling (X1) permits filling of the switchgear with gas or extraction of
gas.
The actuation lever (H) is placed horizontally.
The operating condition is secured against accidental damage by
the latch (R).
The bore (PL) permits switch position securing by a padlock (VHS).
