Drum Removal

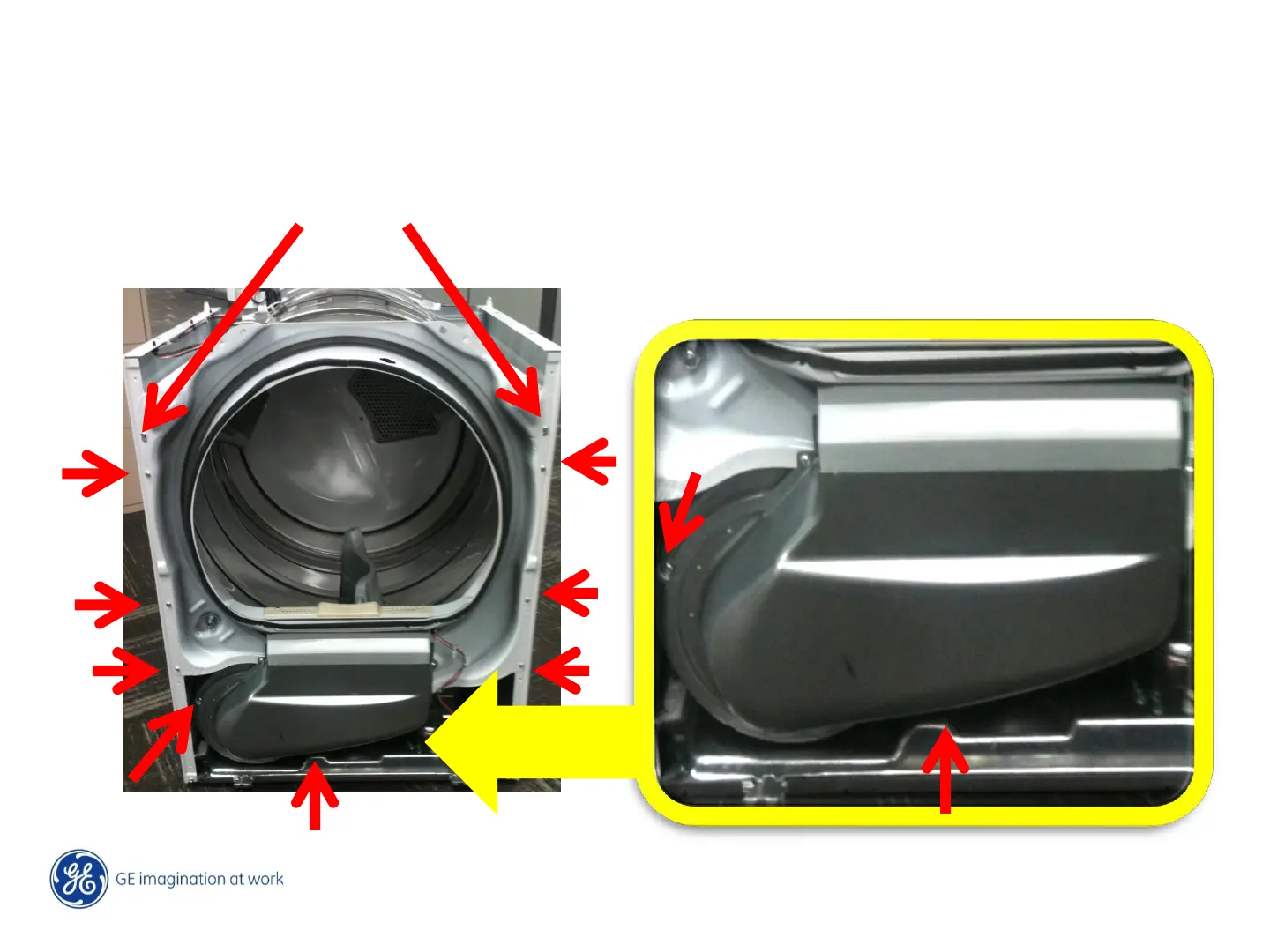

Completely remove 8 Screws that
hold the front drum roller support
Bulkhead in place. Remove the
belt. Then remove the drum
The 2 top screws do not need to be
removed. They are slotted so just
loosen.
2 of the 8 screws are located
here on the lint screen housing
2 of the 8 screws are located
here on the lint screen housing
