Rear Roller Support Bulkhead
Removal
These items can also be accessed from the
rear by removing back panel if the dryer is
in an accessible area.

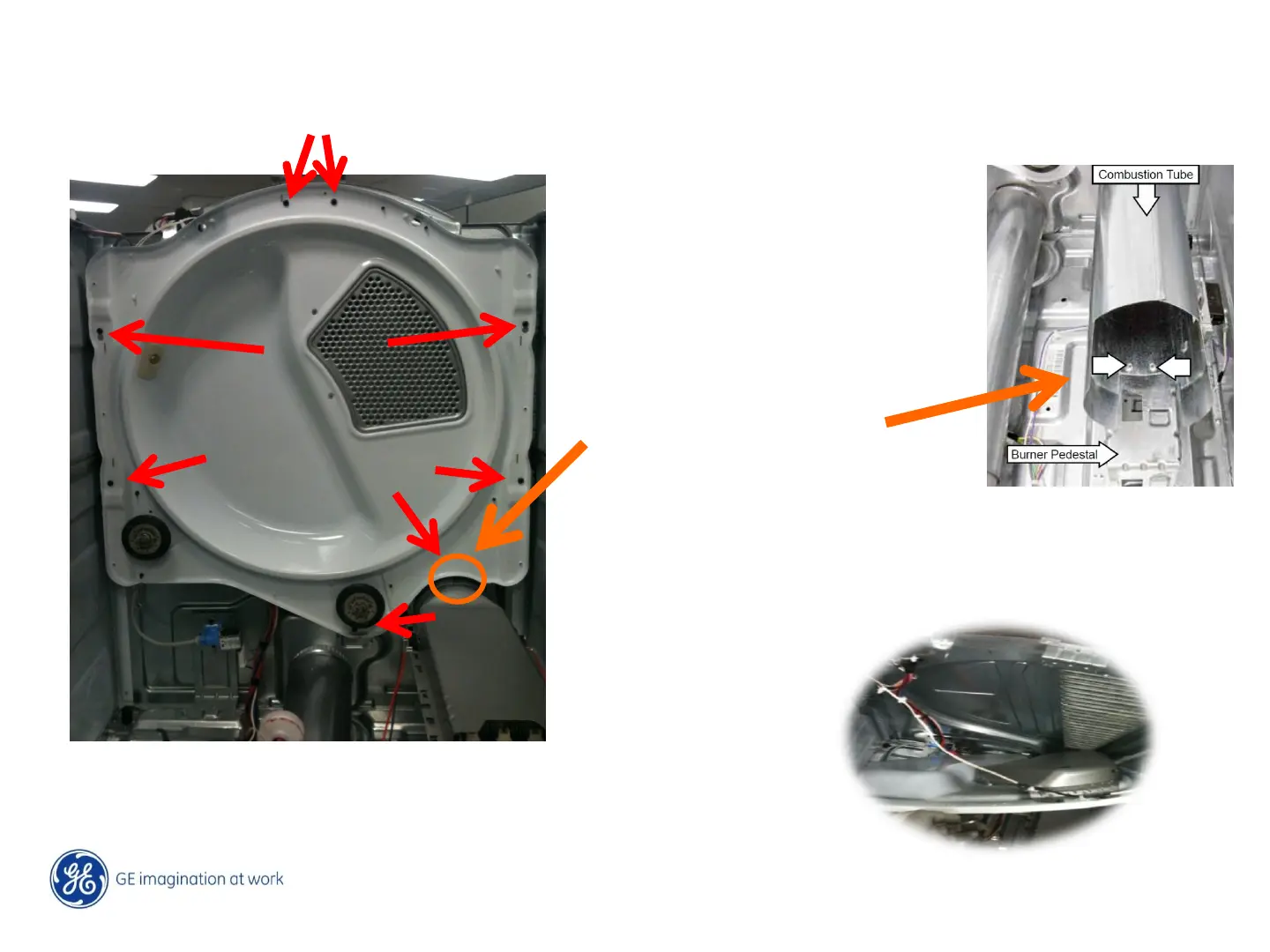

Remove The 2 screws on the top of
the bulkhead, the 2 bottom side
screws, 1 at the bottom below the
bottom roller wheel and 1 at the
rear of the heat exchanger.
Again, loosen the top 2 side screws
but do not remove. They are slotted.
Lift and lean bulkhead forward.
This will allow front
access to the inlet
thermistor, high limit
and safety
thermostat, water
tube, spray nozzle
mounting and
harnesses. Same for
Gas
On gas models, remove the gas
valve and combustion tube first
before the bulkhead. 3 ¼ inch
hex screws hold the tube in
place. One at the back of the
tube and 2 at the front .
