Flame Sensor
Removal

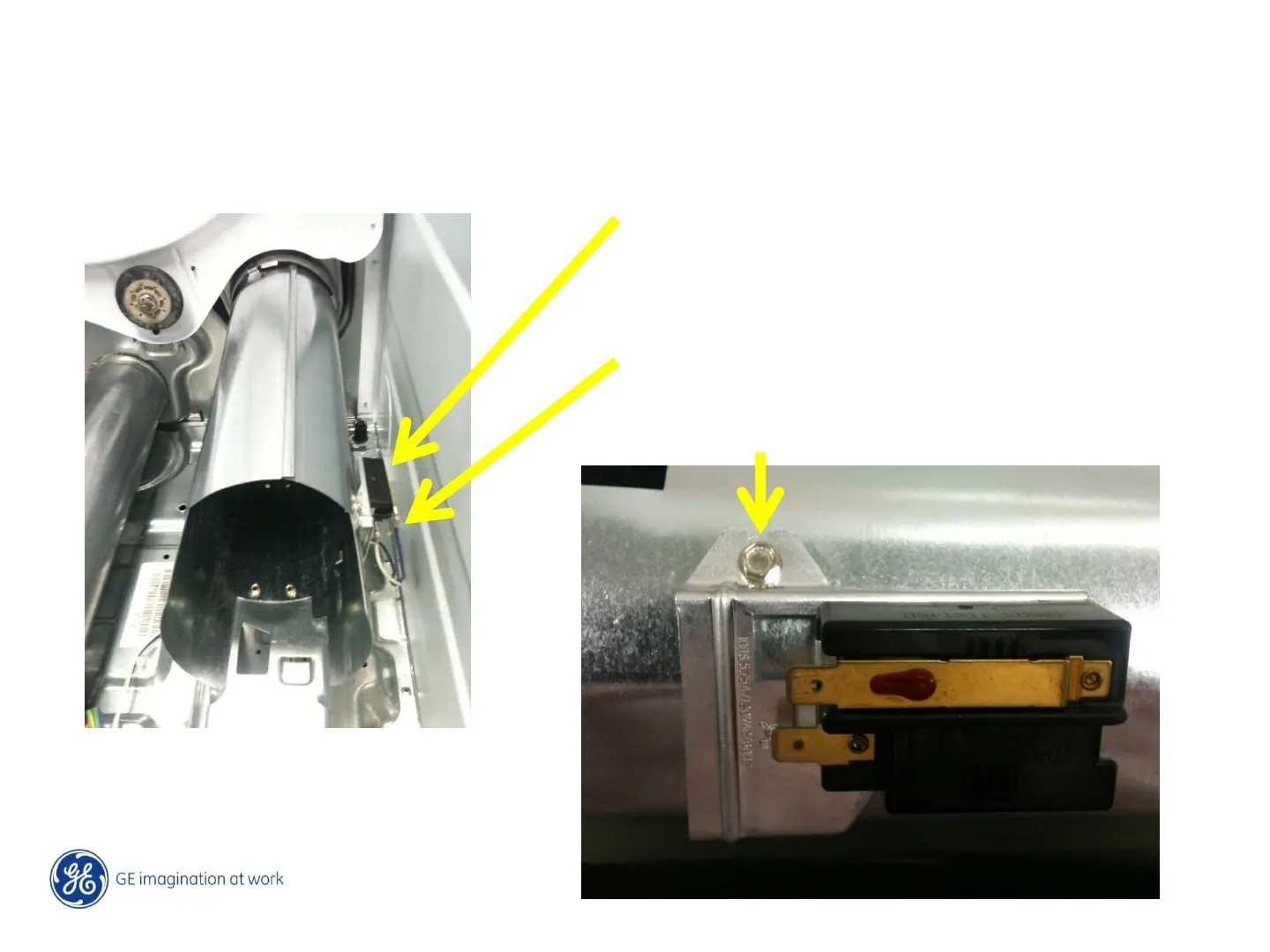

The flame sensor is located on the side
of the combustion chamber.
Easily removed by disconnecting wire
terminals from the sensor and remove
the 1- ¼ inch hex screw that holds it to
the chamber.
