GE GTDS855GDMC - Gas Valve and Burner Assembly

76
Copyright General Electric 2012
12/3/2012
Heater Removal - Gas
Gas Valve Assembly

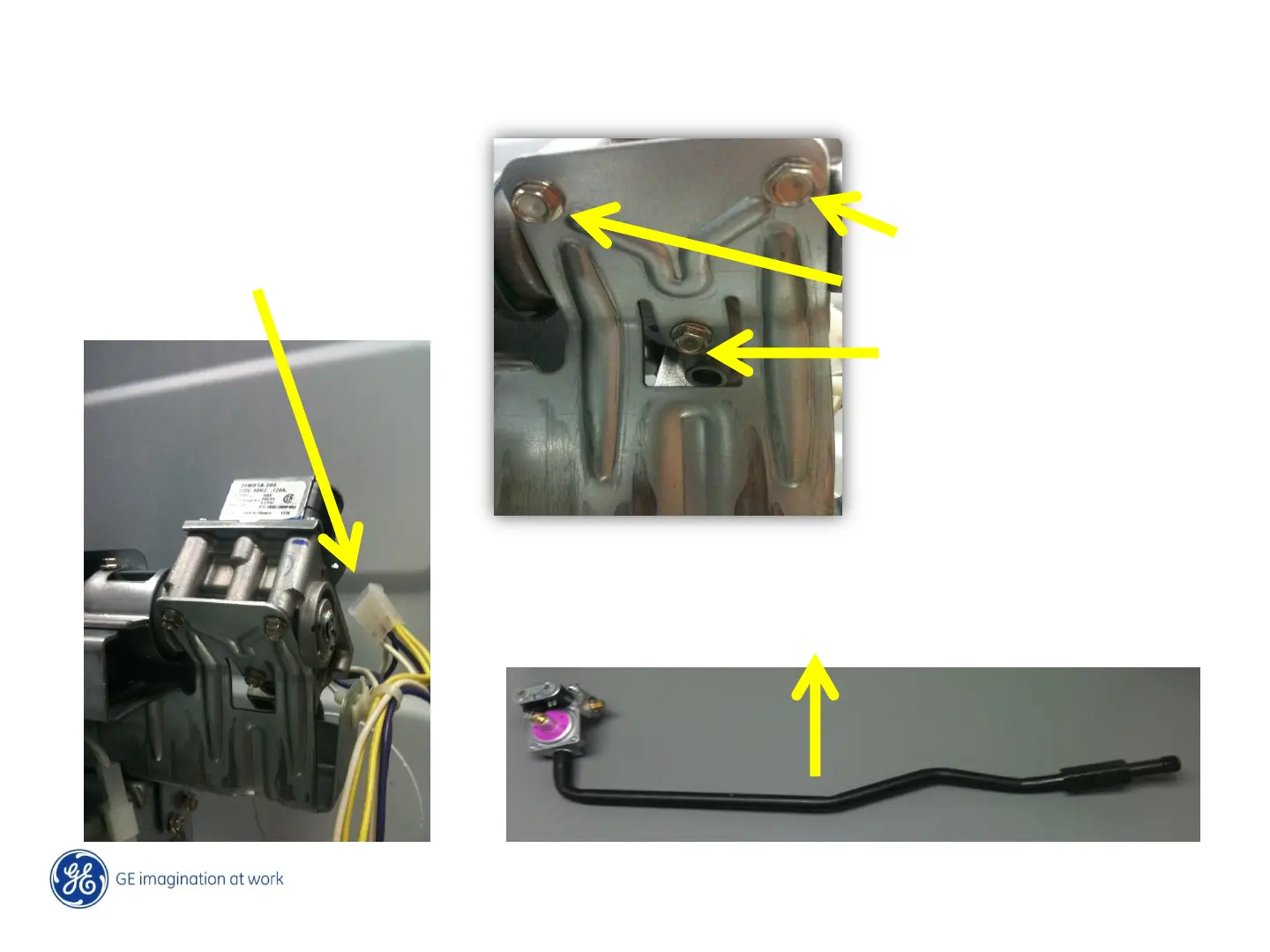

Disconnect plug
connecters from
the gas valve.
Remove the 3- ¼
hex screws for the
valve to come loose
from the mounting
bracket.
Lift and remove the complete gas valve assembly and
internal gas supply pipe for ease of valve removal. The
pipe will slide out of the rear support bracket
