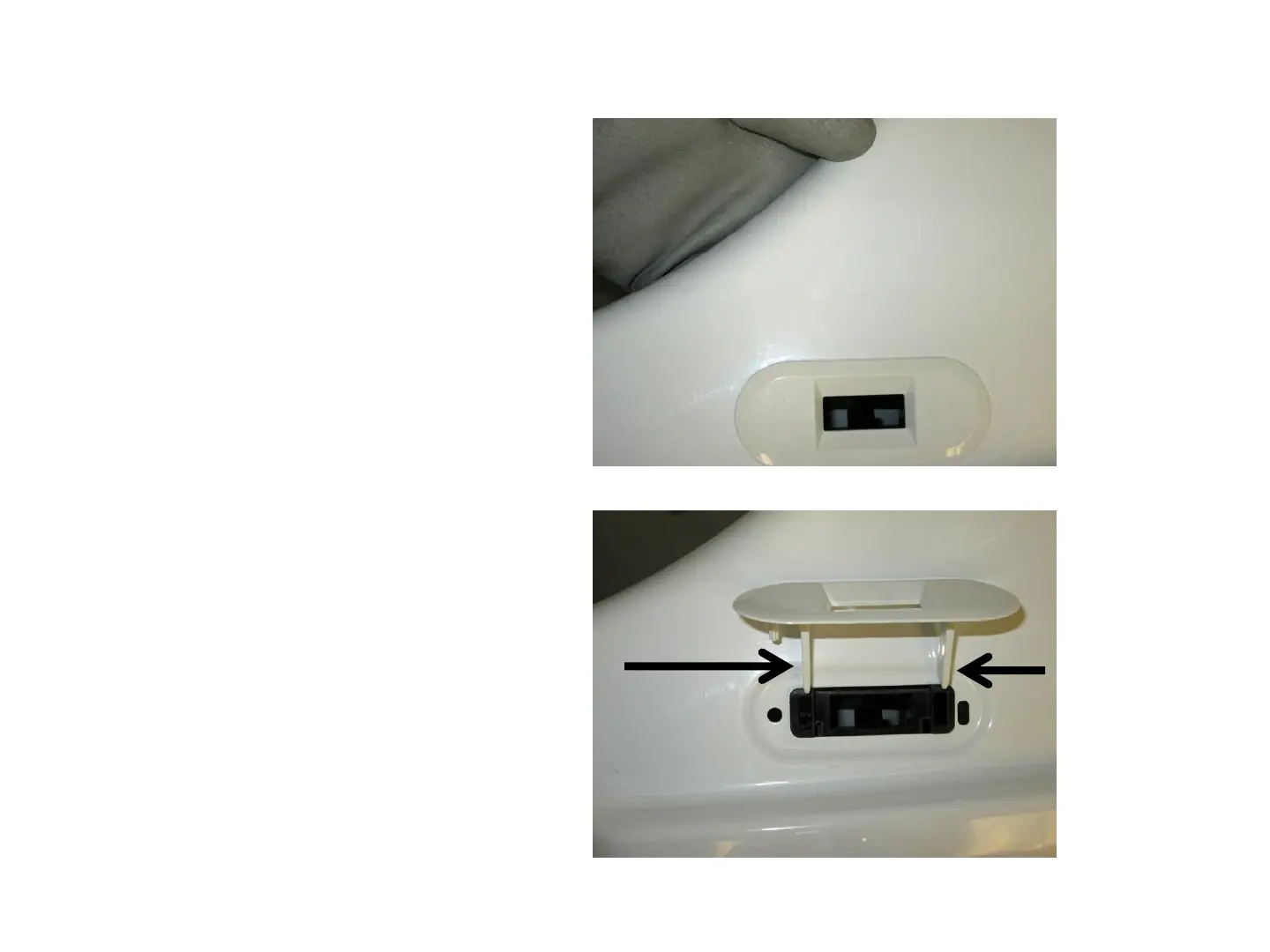

Lid Switch/Lock Assembly
Push the tabs out from the
side of the lock body and
then push up to remove the
bezel from the top cover
To remove the lid switch/lock
assembly:
Remove the bezel from the
top cover by reaching under
the top cover toward the
lock assembly and feel for
the bezel tabs the extend
through the lock body.
Tabs
