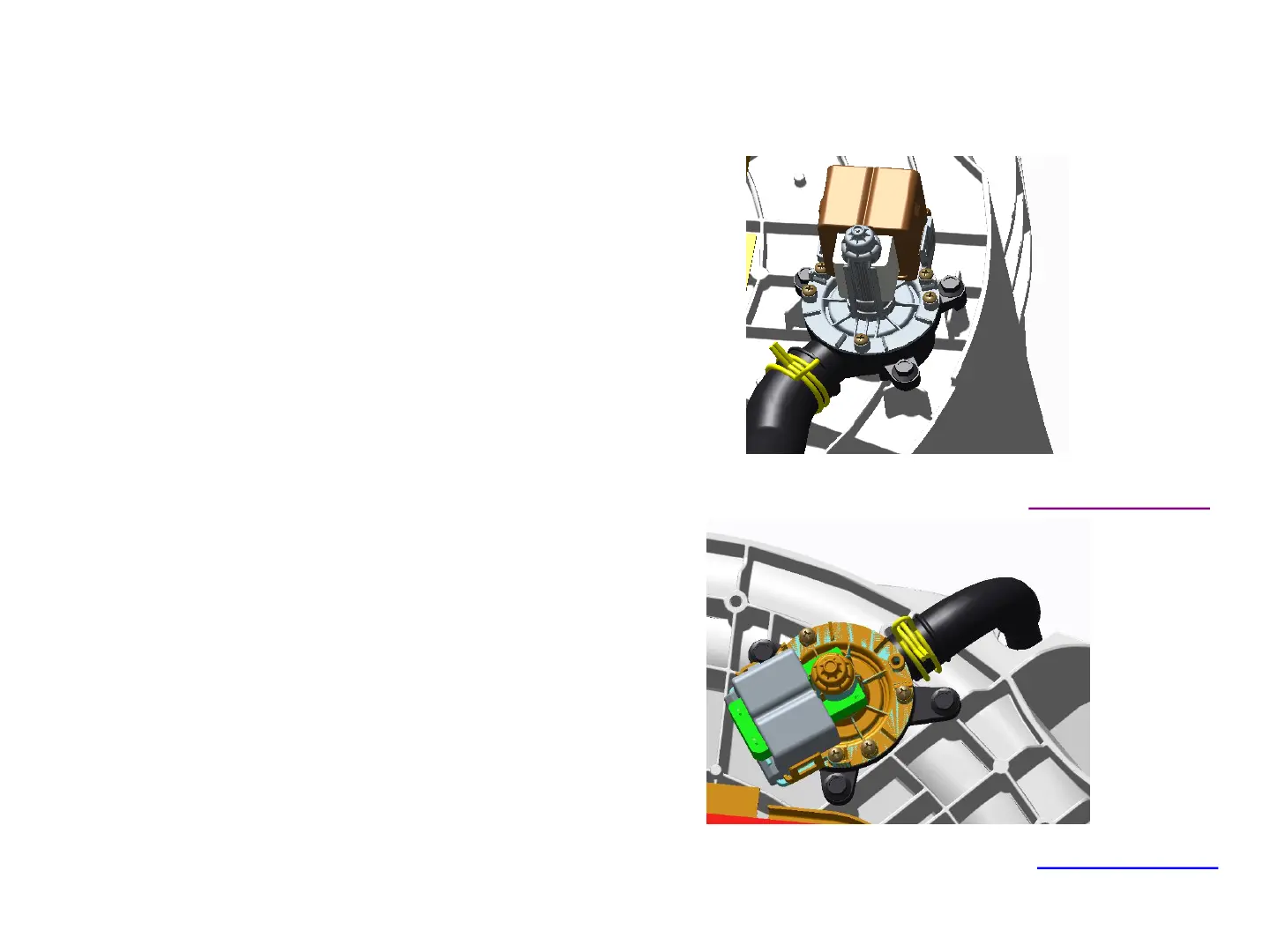

Drain And Recirculation Pump
The drain pump is located on the right side
of the bottom of the tub. It is mounted
directly to the tub secured by three (3) 3/8
th
hex head bolts.
The GTW680 model has a recirculation
pump located at the front of the bottom of
the tub. It mounts to the tub the same as
the drain pump.
Both pumps are 120 VAC.
The approximate resistances of the pumps
checked from J512 board connector are:
Drain pump – 13.2 ohms
Recirculation pump – 31.7 ohms
Recirculation Pump
Drain Pump
