Bottom of Subwasher

Platform Assembly Removal

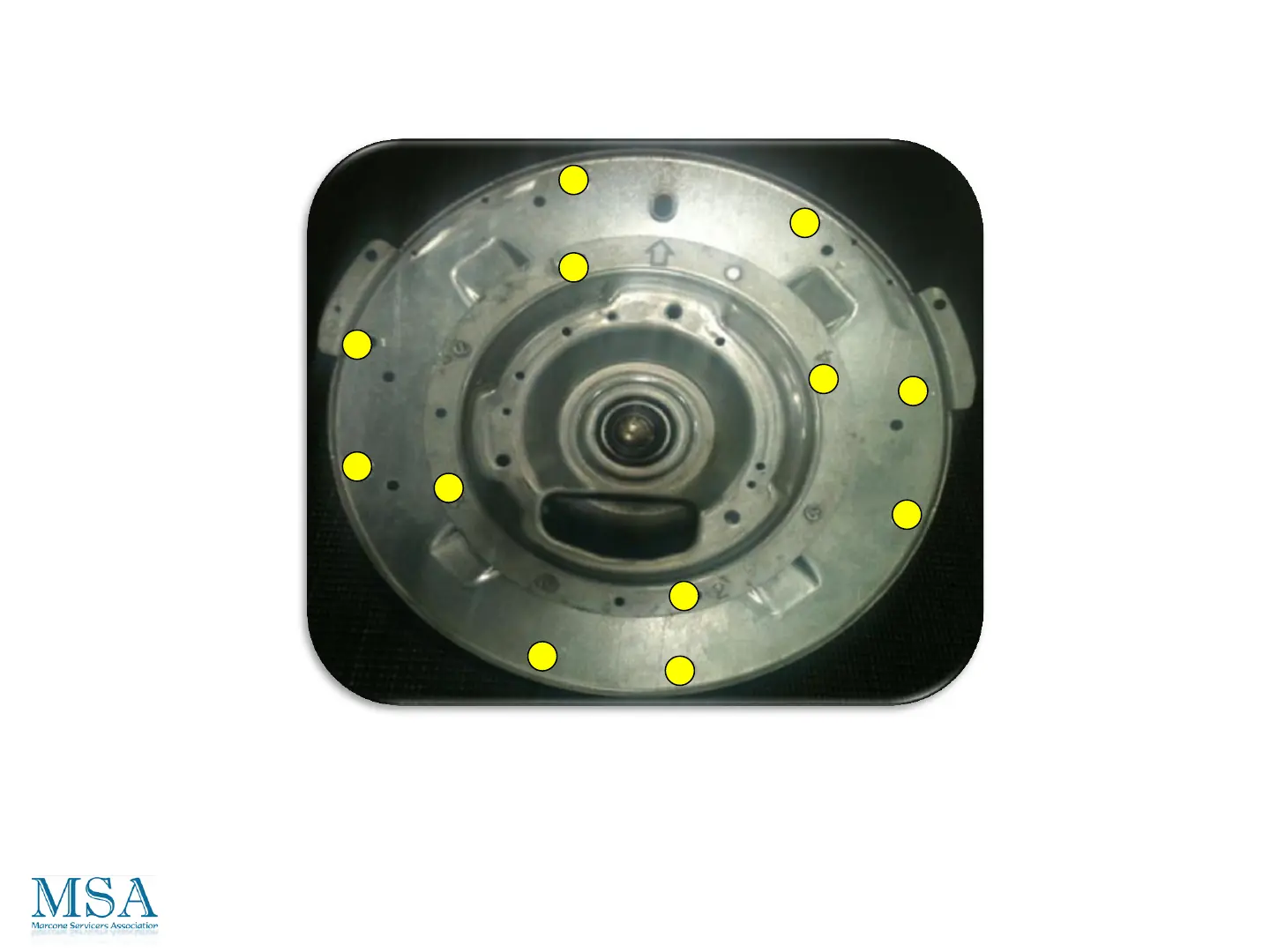

Remove the 12- 3/8 Hex bolts.

Pry the platform off of the tub assembly.
