Electrical and Fuel Inlet Locations

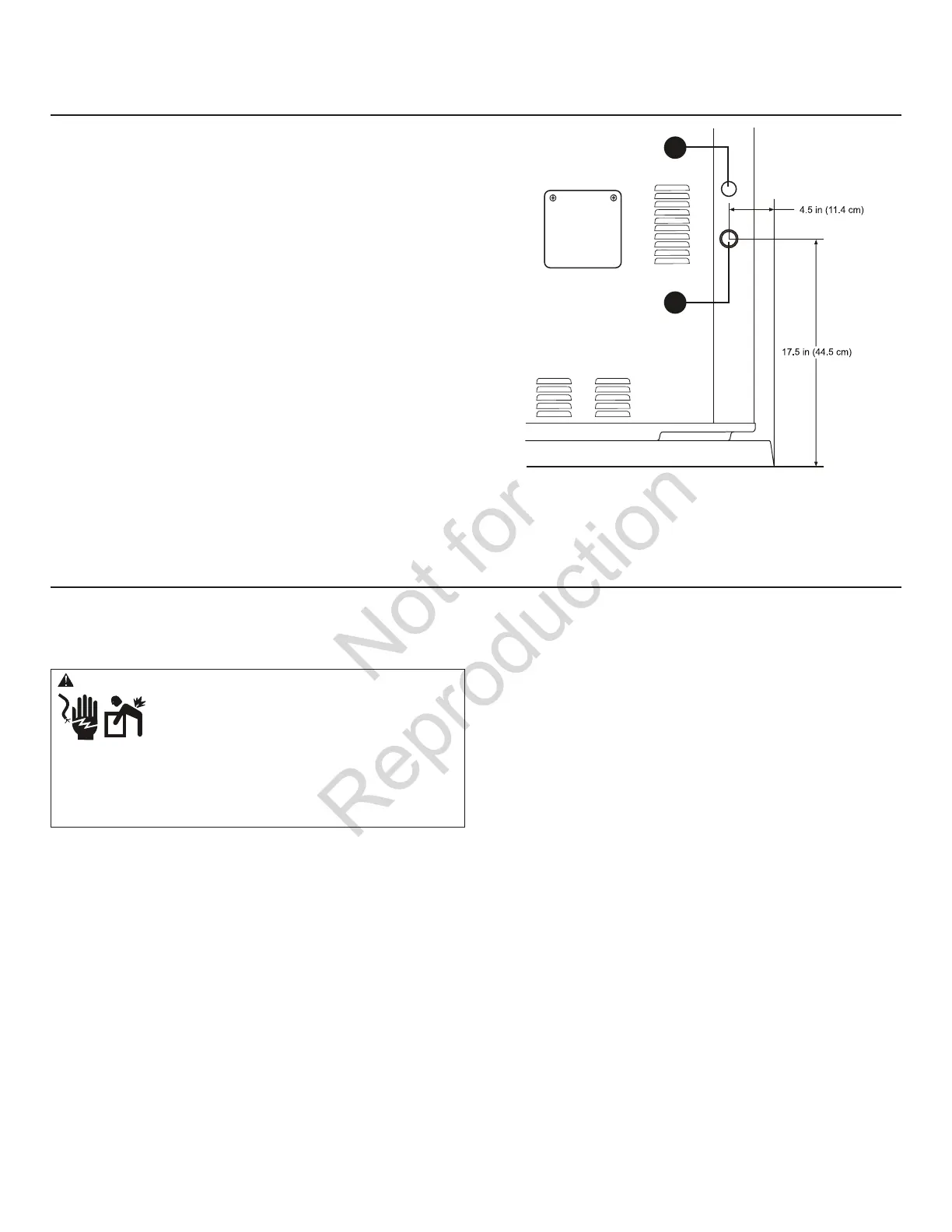

The 3/4 inch N.P.T. fuel inlet connector (A) and electrical inlet
location (B) is shown at right.
The home generator is shipped already attached to its
mounting pad. Unless mandated by local code, a concrete
slab is not required.
If mandated by local code, construct a concrete slab at least
3 inches thick and 6 inches longer and wider than the unit.
Attach unit to slab with 1/4” diameter (minimum) masonry
anchor bolts long enough to retain the unit.
A
B
Lifting the Generator
Thegeneratorweighsmorethan350pounds(159kg).Proper
tools, equipment and qualified personnel should be used in
all phases of handling and moving the generator.
Lifting pockets are provided at each corner between the
base of the generator and its mounting pad. Retouch any
chipped paint with supplied touch-up paint.
WARNING Hazardous Voltage - Contact with power lines can
cause electric shock or burn.
Lifting Hazard / Heavy Object - Can cause muscle
strain or back injury.
If lifting or hoisting equipment is used, DO NOT contact any •
power lines.
DO NOT lift or move generator without assistance.•
DO NOT lift unit by roof as damage to generator will occur.•
To Next Page
