GE IC3645SR4W606MC2 - Outline: SX-4 and SR-4 Package Size

77 pages

To Next Page

To Previous Page

OUTLINE DRAWINGS, ELEMENTARY DRAWINGS AND INPUTS/OUTPUTS

SX TRANSISTOR CONTROL Page 11

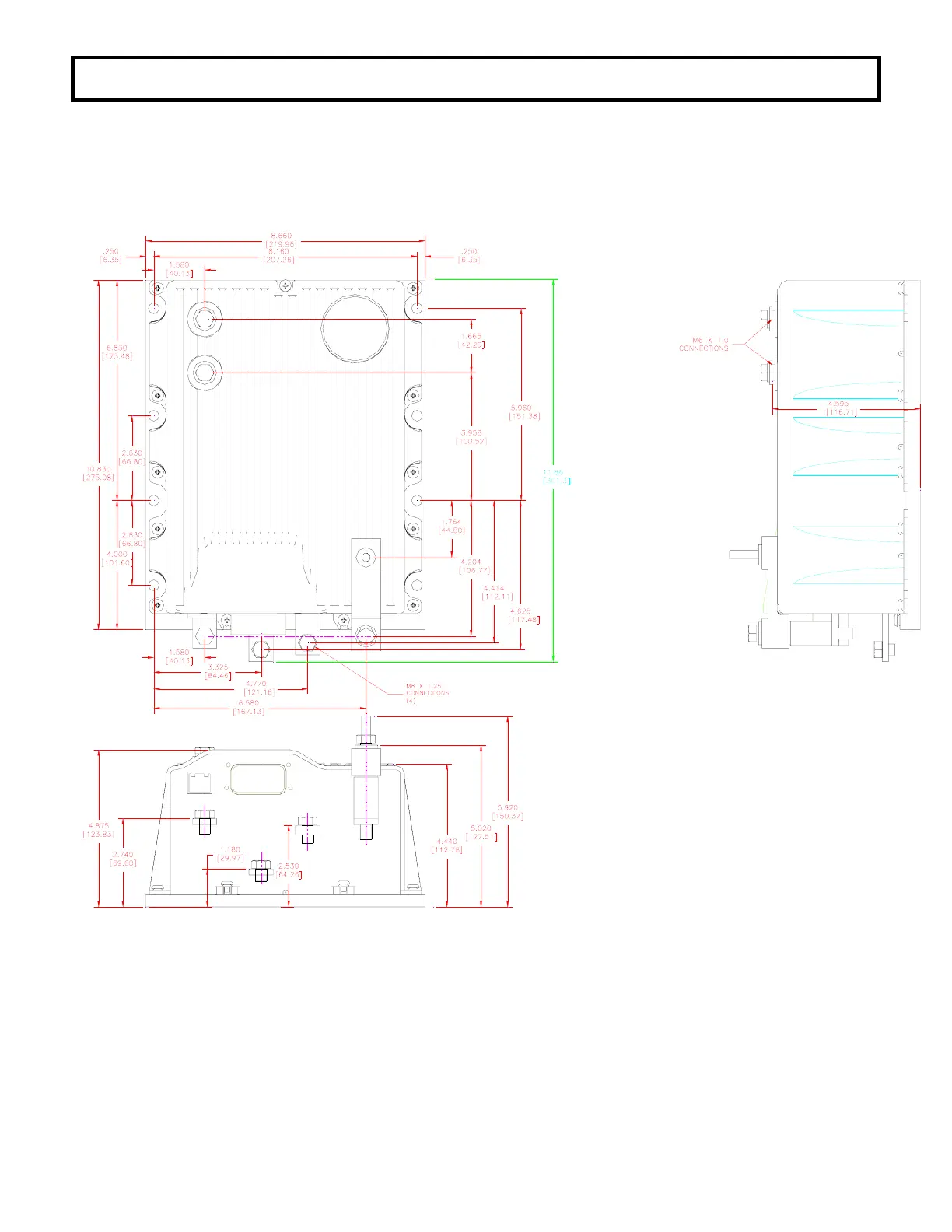

Section 3.2 Outline: SX-4 Package Size

September 2004
