4-6
12" QuickPanel* View Intermedia
te, Color and Monochrome
–
D
ecember 2010
GFK-2306E
4

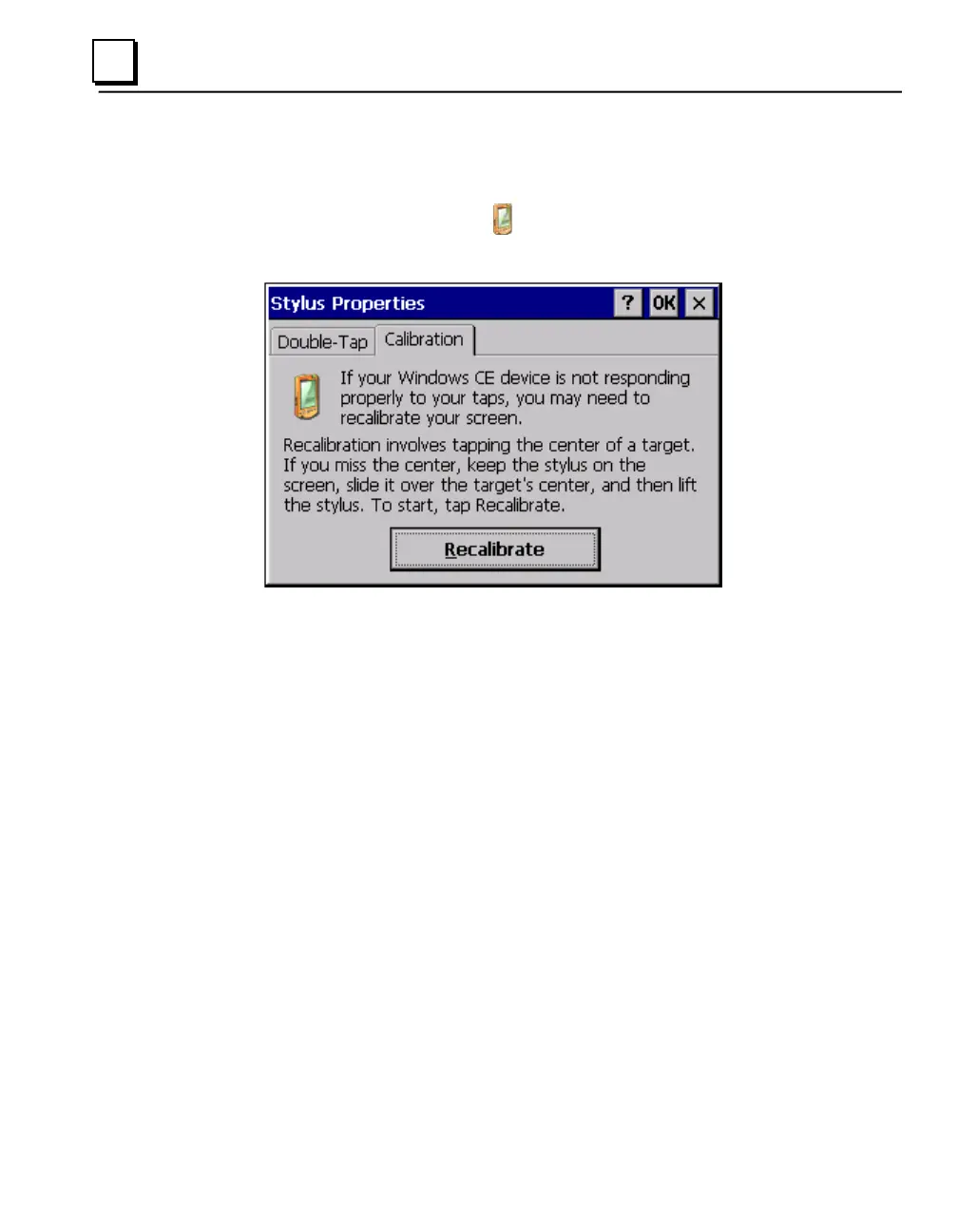

To calibrate the touch screen
1.
In the Control Panel, double-tap
Stylus
.
The
Stylus Properties
dialog box
appears.
2.
Choose the Calibration tab
