LOOSEN MOUNTING SCREWS
Loosen the two mounting screws (A) but do not
screw them all the way out. The screws should
extend
approximately 1/2″ (13 mm) out from the
freezer wall.
INSTALL FILL TUBE
• Remove and discard the white plug from the
upper left corner of the freezer wall.
• Cut the fill tube extension (10) to the length
(refer to the template on page 63) with a
sharp knife or a single-edge razor blade and slide
it onto the fill tube against the stop.
F
F
2
3

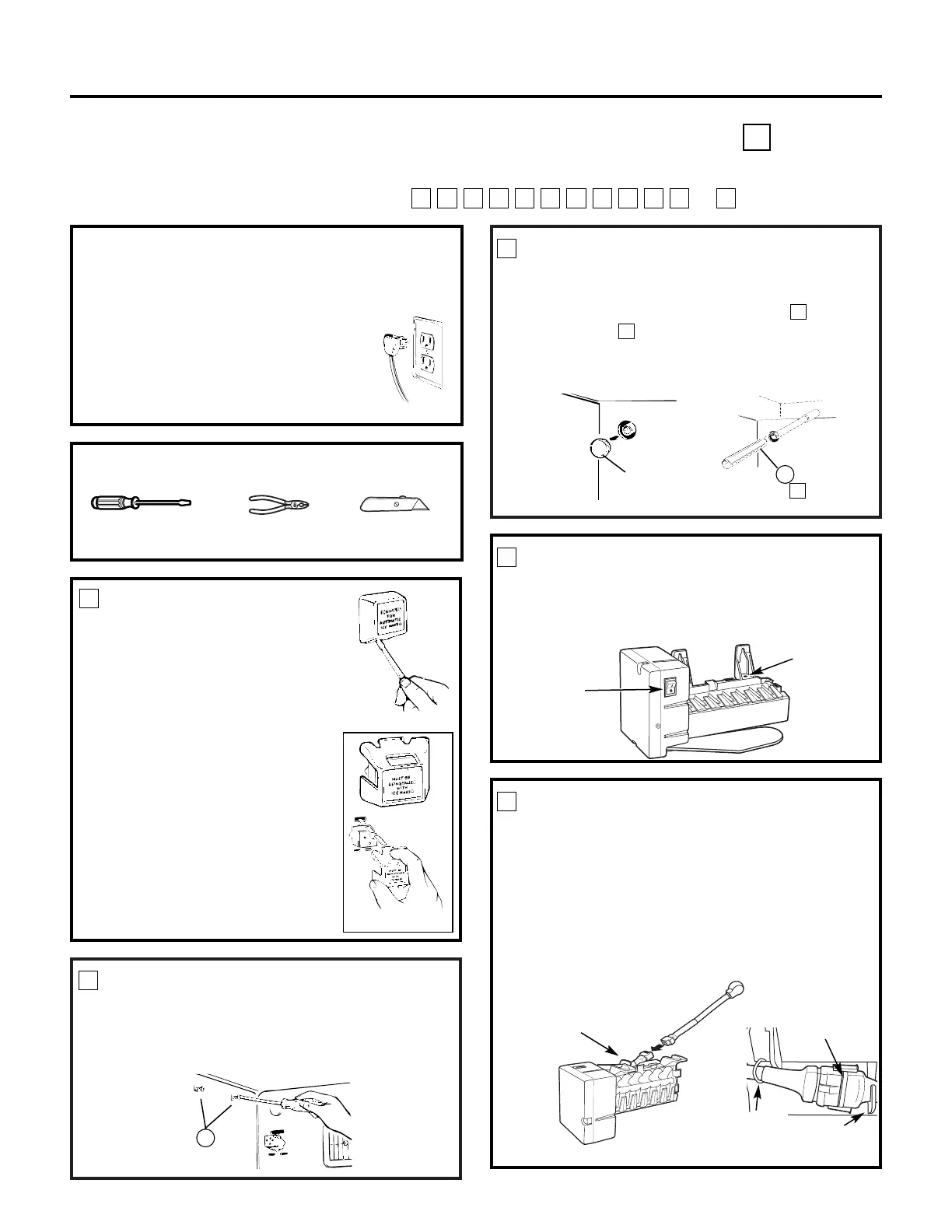

Installation Instructions
ICEMAKER INSTALLATION INSTRUCTIONS F
Are these the right instructions for your model? Follow the Installation Instructions indicated by
the label on the back of the refrigerator— or
RQPNMLKJHGFC
BEFORE YOU BEGIN
Read each step thoroughly before proceeding.
•
CAUTION
–
Unplug the
Refrigerator. To eliminate the danger
of electric shock during installation,
you must unplug the refrigerator
from its electrical outlet.
Flat blade and Phillips
screwdrivers
Pliers
TOOLS YOU WILL NEED
Sharp knife
14
Fig. 1
REMOVE PLUG COVER
Remove the electric plug cover.
To remove the type shown in Fig. 1,
insert a standard screwdriver blade
in slot at bottom of cover, apply
pressure upwards, and pry cover
away from freezer wall. Discard this
cover.
To remove the type shown in Fig.
2, press top of cover down to free
its upper tab from slot in freezer
wall. Then pull cover straight out
to free the lower tabs from their
slots. Save this cover for
reinstallation later.
1
A
Remove
plug
F
10
SET POWER SWITCH TO OFF
Set the icemaker power switch to
OFF.
Leave the
power switch in the
OFF
position until the refrigerator
is connected to the water supply to prevent
premature operation.
4
Power
Switch
POWER CORD ADAPTER
There are two power cord adapters included with the
kit; be sure to use the one specified in the Parts List on
page 7. Plug the female end of the power cord adapter
(21) onto the male terminals on the icemaker power
cord. When connecting the adapter to the power
cord, make sure the seal is in place between the
connectors. Secure the power cord adapter to the
icemaker by putting it into the hook at the back of the
icemaker and attaching it to the icemaker with a wire
tie (24).
5
Hook
Hole for
wire tie
Hook
Wire tie
Seal
Fig. 2
To Next Page
