Installation Instructions
REMOVE THE COVER
At the bottom rear of the refrigerator, remove the
screw(s) holding the access cover.
Bend the cover back for access to the compartment.
Be sure to save the screws as the access cover must
be reinstalled later to ensure your refrigerator will
function properly.
1
BEFORE YOU BEGIN
Read each step thoroughly before proceeding.
•
CAUTION
–
Unplug the
Refrigerator. To eliminate the danger
of electric shock during installation,
you must unplug the refrigerator from
its electrical outlet.

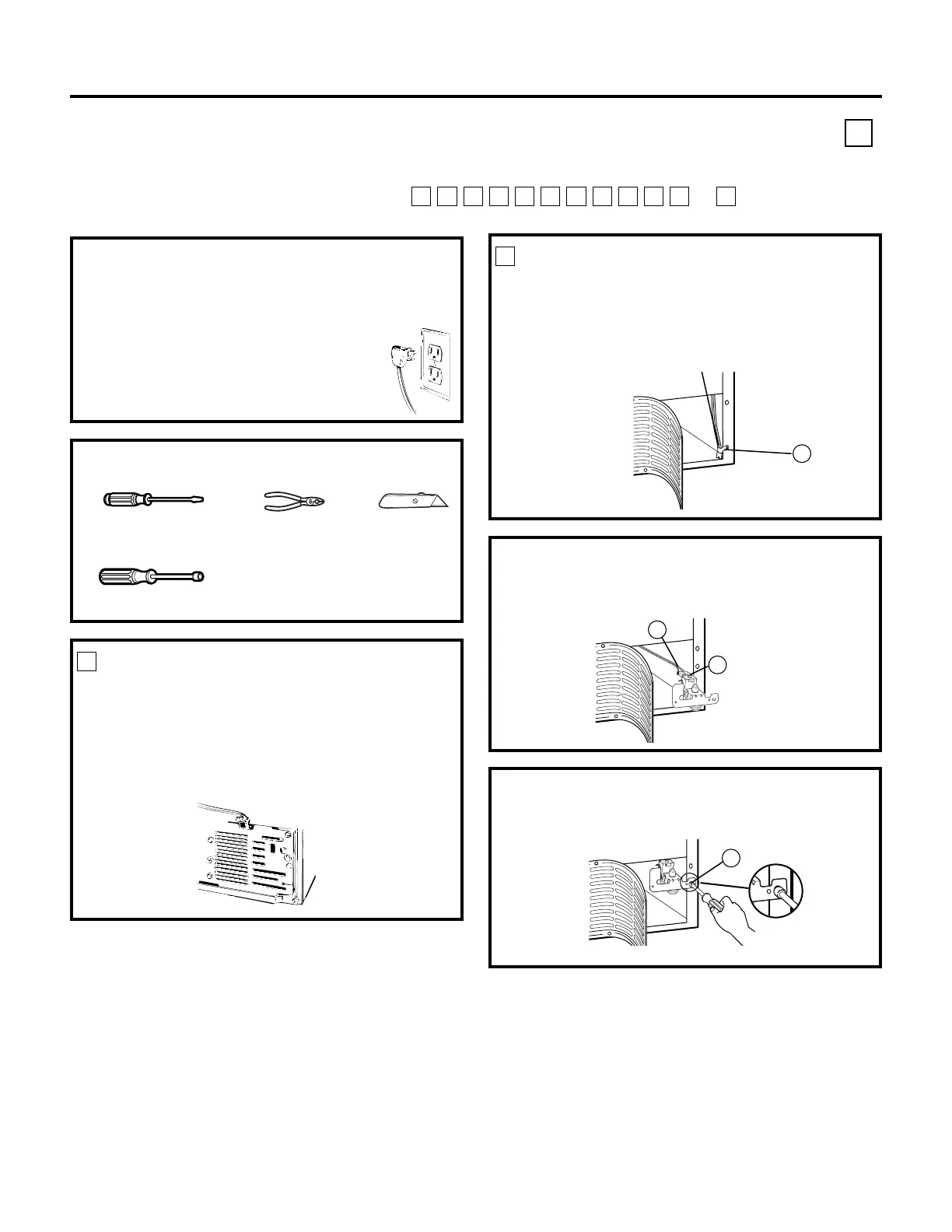

WATER VALVE ASSEMBLY INSTALLATION INSTRUCTIONS L
Are these the right instructions for your model? Follow the Installation Instructions indicated by
the label on the back of the refrigerator— or
RQPNMLKJHGFC
Flat blade and Phillips
screwdrivers
Pliers
TOOLS YOU WILL NEED
Sharp knife
1/4″ and 5/16″ Nutdrivers
• Fasten the water valve to the
cabinet by driving
hex-
head screw (13) from the kit into the hole in the
cabinet leg.
ATTACH THE WATER VALVE
• Locate the female connector plug (C) which is
attached to the cabinet by a metal or plastic clip.
Remove the clip by removing the screw.
2
• Plug the female connector (C) onto the male
terminals on the water valve (4). Either wire
can go on either terminal.
Metal or
plastic clip
C
C
4
13
To Next Page
