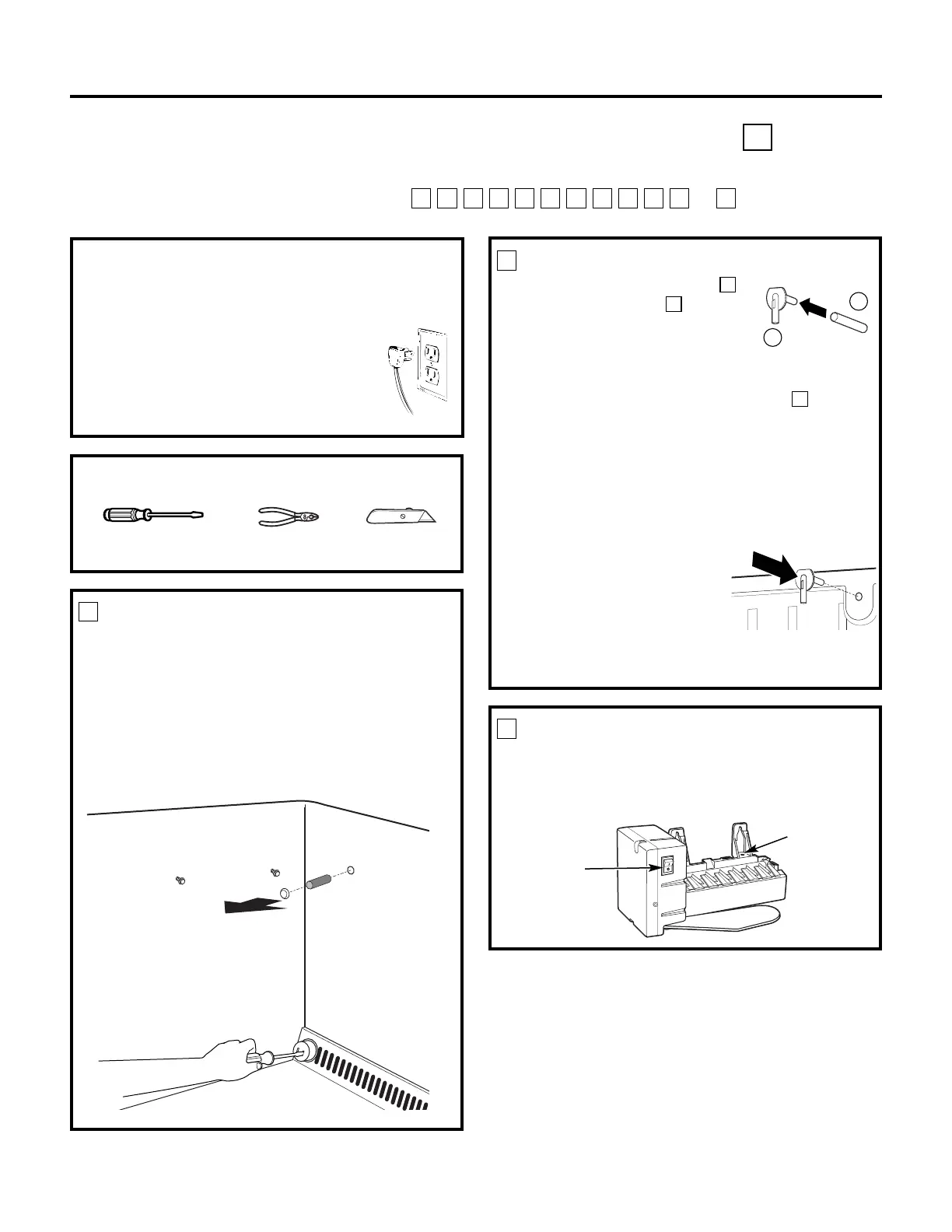

Installation Instructions
ICEMAKER INSTALLATION INSTRUCTIONS Q
Are these the right instructions for your model? Follow the Installation Instructions indicated by
the label on the back of the refrigerator— or
RQPNMLKJHGFC
BEFORE YOU BEGIN
Read each step thoroughly before proceeding.
•
CAUTION
–
Unplug the
Refrigerator. To eliminate the danger
of electric shock during installation,
you must unplug the refrigerator from
its electrical outlet.
Flat blade and Phillips
screwdrivers
Pliers
TOOLS YOU WILL NEED
Sharp knife
SET POWER SWITCH TO OFF
Set the icemaker power switch to
OFF.
Leave the
power switch in the
OFF
position until the
refrigerator is connected to the water supply to
prevent premature operation.
3
Power
Switch
INSTALL FILL TUBE
• Cut the fill tube (16) to the
length (refer to the template
on page 62) with a sharp knife
or a single-edge razor blade.
• Slide the fill tube (16) onto the
water tube inlet (15).
• Cut the fill tube extension (10) to the length
(refer to the template on page 63) with a sharp
knife or single-edge razor blade.
• Slide the fill tube extension (10) completely over
the fill tube (16) on the water tube inlet (15).
• Go to the back of the refrigerator. In the upper
right hand corner, remove the label covering the
hole. Pull out the insulation plug and any debris.
• On the tube side of the water
tube inlet (15) there is an
adhesive backing. Remove
the adhesive backing and
slide the tube into the hole
near the top at the back of the
refrigerator. Firmly press on the inlet to secure
it to the refrigerator.
Q
Q
Q
2
15
16
Hole for
wire tie
PREPARE FOR INSTALLATION
• Remove and discard the large white plug or foil
sticker from the rear freezer wall. Pull out the gray
insulation plug and remove any debris.
• Loosen the two mounting screws but do not
screw them all the way out. The screws should
extend approximately 1/2″ (13 mm) out from
the freezer wall.
• Remove the outlet cover with a flat-blade
screwdriver.
1
To Next Page
