Installation Instructions

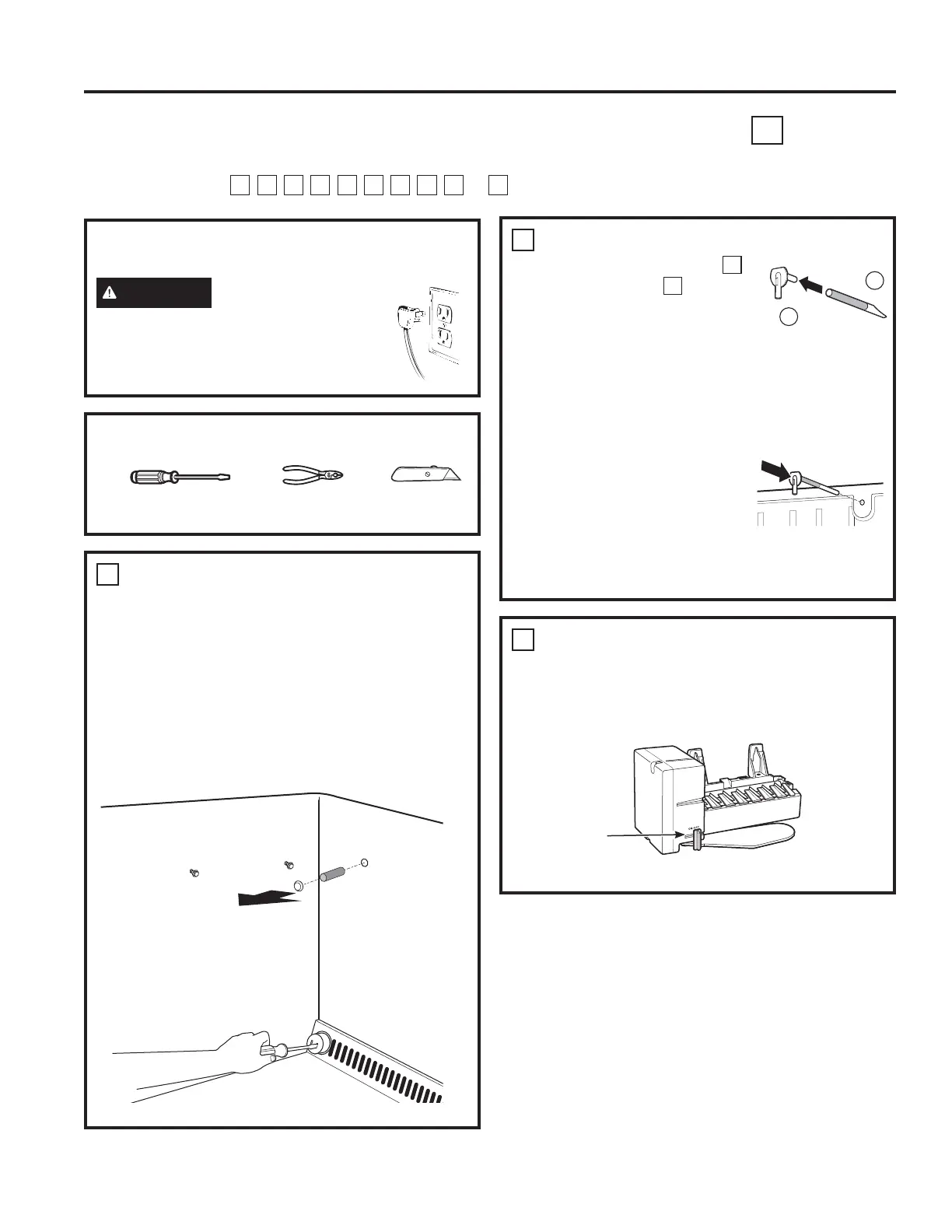

INSTALLATION INSTRUCTIONS
BEFORE YOU BEGIN
Read these instructions completely and carefully.
WARNING
To reduce the risk of
electric shock or injury during installation,
you must first unplug the refrigerator
before proceeding.
TOOLS YOU WILL NEED
ICEMAKER INSTALLATION INSTRUCTIONS
Q
$UHWKHVHWKHULJKWLQVWUXFWLRQVIRU\RXUPRGHO")ROORZWKH,QVWDOODWLRQ,QVWUXFWLRQVLQGLFDWHGE\WKHODEHORQWKHEDFN
of the refrigerator—
L M N Q R S T U V
or
W
Flat blade and Phillips
screwdrivers
Pliers
Sharp knife
1
PREPARE FOR INSTALLATION
Ŷ Remove and discard the large white plug from the
rear freezer wall. Pull out the gray insulation plug
and remove any debris.
Ŷ Loosen the two mounting screws but do not screw
them all the way out. The screws should extend
DSSUR[LPDWHO\PPRXWIURPWKHIUHH]HU
wall.
Ŷ Remove the outlet cover with a flat-blade
screwdriver..
2
INSTALL FILL TUBE
Ŷ Cut the fill tube WRWKH
Q
OHQJWKUHIHUWRWKH
Q
template
on page 47) with a sharp knife or
a single-edge razor blade.
Ŷ Slide the fill tubeRQWRWKH
water tube inlet 
Ŷ *RWRWKHEDFNRIWKHUHIULJHUDWRU,QWKHXSSHU
right hand corner, remove the label covering the
hole. Pull out the insulation plug and any debris.
Ŷ On the tube side of the water
tube inlet WKHUHLVDQ
adhesive backing. Remove the
adhesive backing and slide the
tube into the hole near the top
at the back of the refrigerator.
Firmly press on the inlet to
secure it to the refrigerator.
20
19
4
SET POWER SWITCH TO OFF
Ŷ Set the icemaker power switch to OFF. Leave
the power switch in the OFF position until the
refrigerator is connected to the water supply to
prevent premature operation.
Power
Switch
$SSHDUDQFHPD\YDU\
