Flat blade and Phillips
screwdrivers
Pliers
Sharp knife
BEFORE YOU BEGIN
Read these instructions completely and carefully.
WARNING
To reduce the risk of
electric shock or injury during installation,
you must first unplug the refrigerator
before proceeding.
TOOLS YOU WILL NEED
1
REMOVE ICE CUBE TRAY SHELF
Ŷ Remove the two screws securing the ice cube tray
to the side wall of the freezer. Remove the tray.
Ŷ Replace the screws but do not screw them all the
way in. The screw heads should extend about
PPIURPWKHVLGHZDOORIWKHIUHH]HU
2
PREPARE FOR INSTALLATION
Ŷ Remove and discard the large white plug from
the rear freezer wall.
Ŷ Remove the outlet cover with a flat-blade
screwdriver.
3
INSTALL FILL TUBE EXTENSION
Ŷ 6OLGHWKHILOOWXEHH[WHQVLRQ
onto the fill tube against the
stop.
4
SET POWER SWITCH TO OFF
Ŷ Set the icemaker power switch to OFF. Leave
the power switch in the OFF position until the
refrigerator is connected to the water supply to
prevent premature operation.
1XWGULYHU

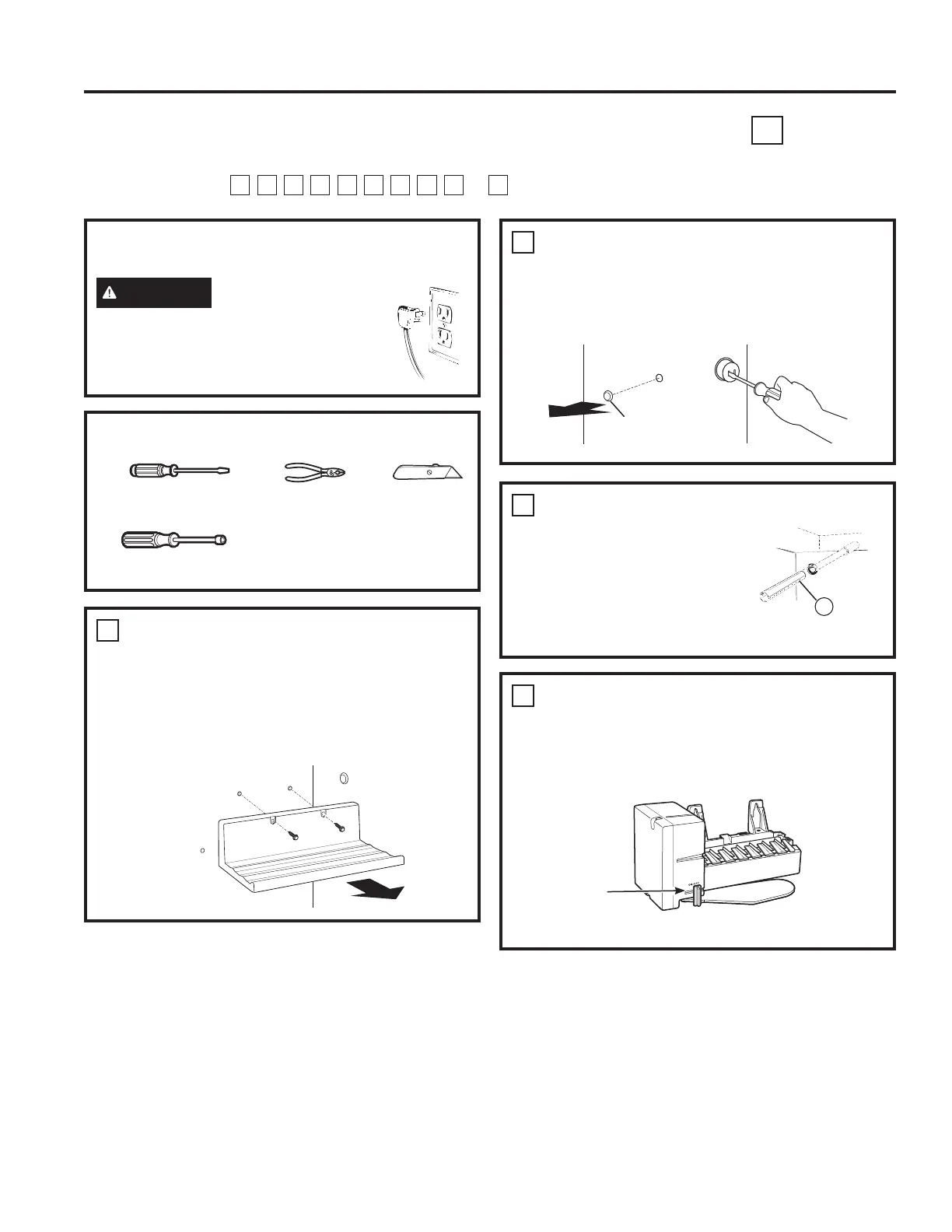

Installation Instructions
ICEMAKER INSTALLATION INSTRUCTIONS
L
INSTALLATION INSTRUCTIONS
$UHWKHVHWKHULJKWLQVWUXFWLRQVIRU\RXUPRGHO")ROORZWKH,QVWDOODWLRQ,QVWUXFWLRQVLQGLFDWHGE\WKHODEHORQWKHEDFN
of the refrigerator—
L
M
N
Q
R
S
T
U
V
or
W
Remove
plug
10
Power
Switch
$SSHDUDQFHPD\YDU\
To Next Page
