GE IM-6D - Icemaker Installation: Model R

26 49-60704-2

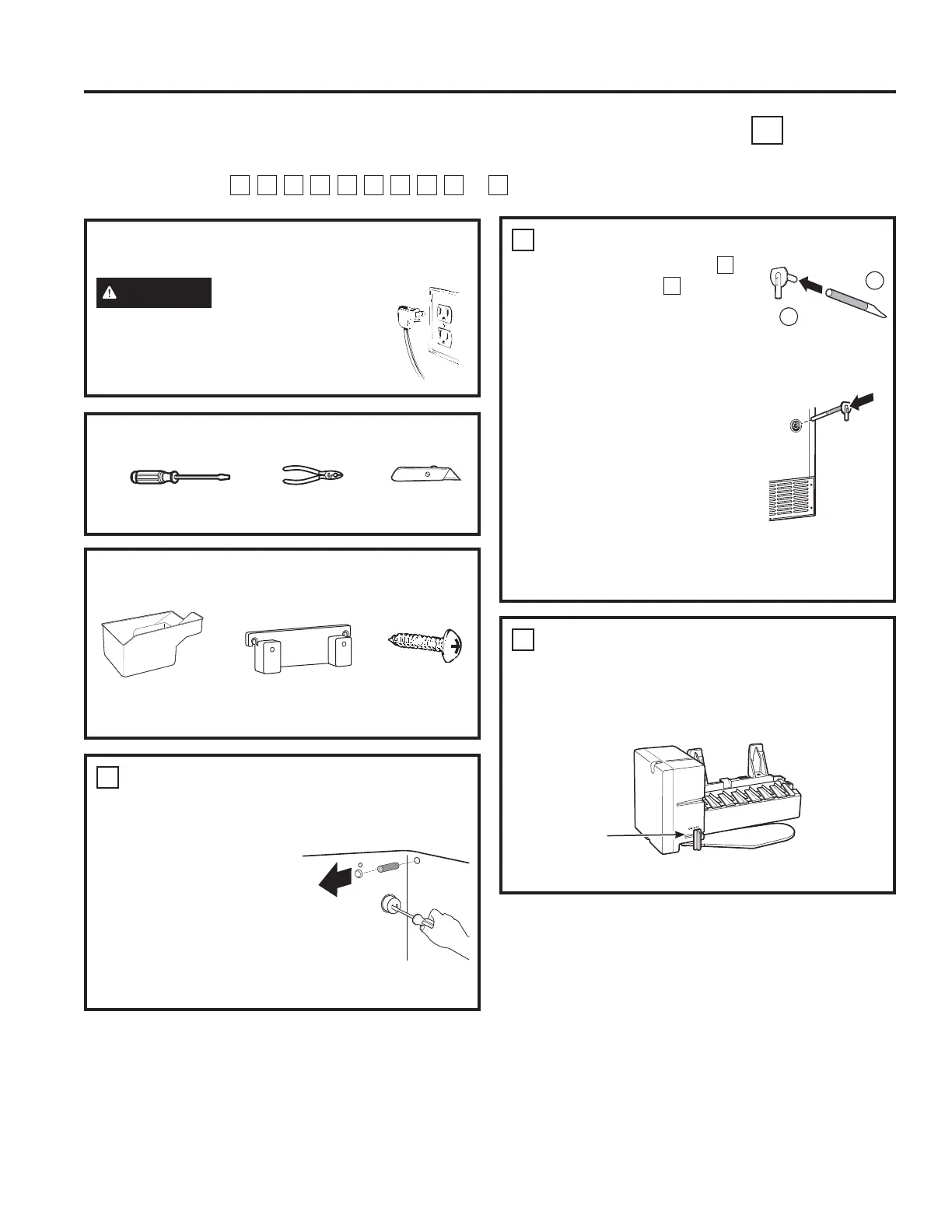

Installation Instructions
INSTALLATION INSTRUCTIONS
BEFORE YOU BEGIN
Read these instructions completely and carefully.
WARNING
To reduce the risk of
electric shock or injury during installation,
you must first unplug the refrigerator
before proceeding.
PARTS REQUIRED THAT CAME WITH
THE REFRIGERATOR
TOOLS YOU WILL NEED
ICEMAKER INSTALLATION INSTRUCTIONS
R
$UHWKHVHWKHULJKWLQVWUXFWLRQVIRU\RXUPRGHO")ROORZWKH,QVWDOODWLRQ,QVWUXFWLRQVLQGLFDWHGE\WKHODEHORQWKHEDFN
of the refrigerator—
L M N Q R S T U V
or
W
Flat blade and Phillips
screwdrivers
Pliers
Sharp knife
1
PREPARE FOR INSTALLATION
Ŷ Remove all freezer baskets for greater
accessibility to the rear of the freezer.
Ŷ Remove and discard the
large white plug from the
rear freezer wall. Pull out
the gray insulation plug
and remove any debris.
Ŷ Remove the outlet
cover with a flat-blade
screwdriver.
2
INSTALL FILL TUBE
Ŷ &XWWKHILOOWXEHWRWKH
R
OHQJWKUHIHUWRWKH
R
template
on page 47) with a sharp knife
or a single-edge razor blade..
Ŷ Slide the fill tubeRQWRWKH
water tube inlet 
Ŷ Go to the back of the refrigerator.
,QWKHXSSHUULJKWKDQGFRUQHU
remove the label covering the
hole. Pull out the insulation plug
and any debris.
Ŷ On the tube side of the water
tube inlet WKHUHLVDQ
adhesive backing. Remove the
adhesive backing and slide the tube into the hole
near the top at the back of the refrigerator. Firmly
press on the inlet to secure it to the refrigerator.
20
19
3
SET POWER SWITCH TO OFF
Ŷ Set the icemaker power switch to OFF. Leave
the power switch in the OFF position until the
refrigerator is connected to the water supply to
prevent premature operation.
Power
Switch
$SSHDUDQFHPD\YDU\
,FHEXFNHW
Part No. WR30S1
,FHPDNHUPRXQWLQJEORFN
Part No. WR2M3604
Phillips head
VFUHZV
Part No.
WR1M478
