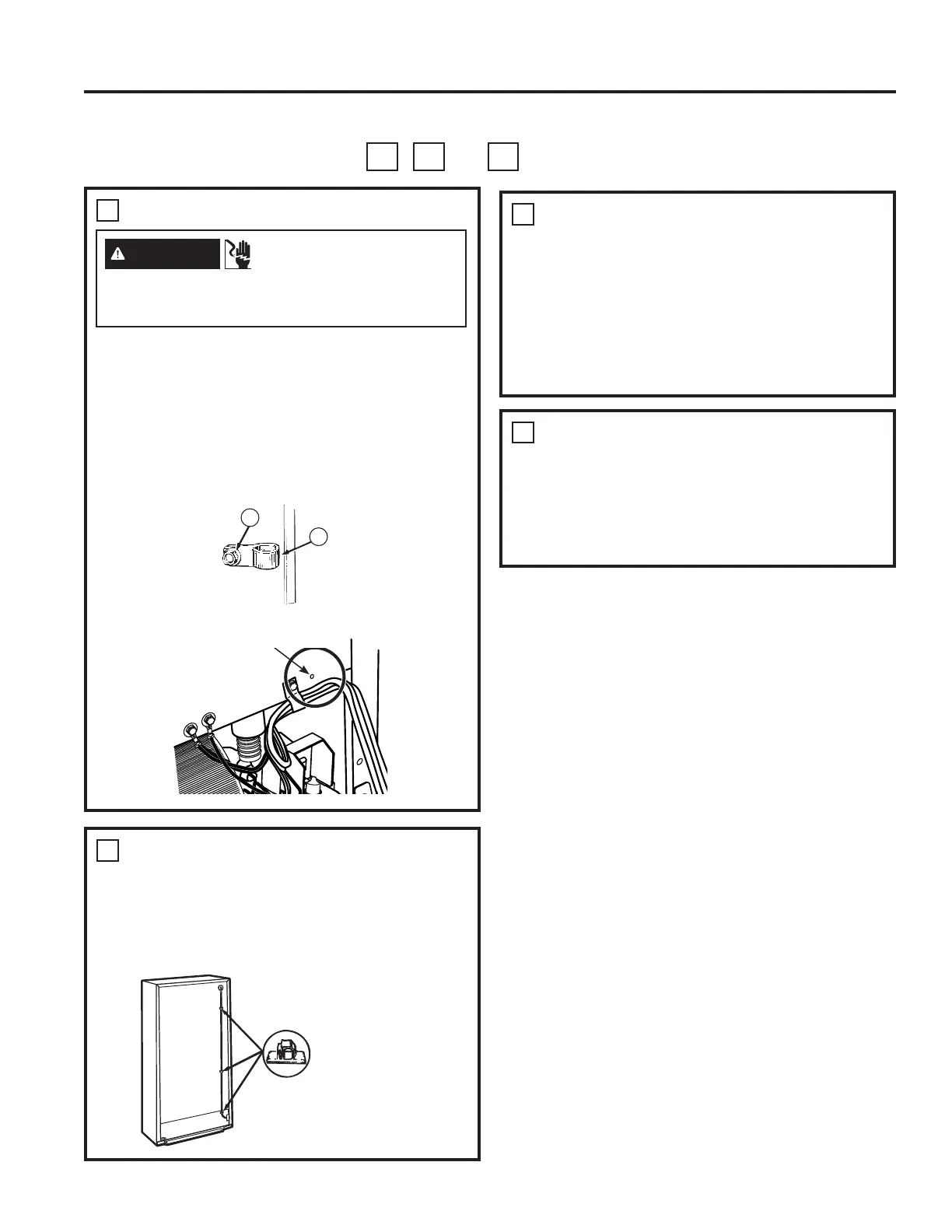

Installation Instructions
WATER VALVE ASSEMBLY INSTALLATION INSTRUCTIONS
U
,
V
or
W
(Cont.)
4
INSTALL WATER LINE CLAMP
Ŷ Attach the metal water line clampVWUDLQUHOLHI
WRWKHUHIULJHUDWRU'ULYHWKHscrewIURP
the kit through the clampDWWKHLQGHQWLQWR
the back of the cabinet.
Ŷ 7KHPHWDOFODPSLVIRUWKHKRXVHZDWHUOLQHVHH
WKH:DWHU/LQH,QVWDOODWLRQ,QVWUXFWLRQV,WLVQRWWR
be used for the tubing from the water valve up to
the icemaker.
7
17
INSTALLATION INSTRUCTIONS
Small indent for water
line clamp installation
5
ROUTE AND ATTACH THE
PLASTIC WATER LINE
Ŷ Fasten the plastic water tube to the back of the
UHIULJHUDWRUZLWKDGKHVLYHEDFNHGIDVWHQHUV
spacing the fasteners as shown to take up slack in
the tube.
6
WATER VALVE INSTALLED
Ŷ 5HIHUWRWKH:DWHU/LQH,QVWDOODWLRQ,QVWUXFWLRQVIRU
connection to the home water supply. After water
line installation is completed, set the icemaker
power switch to ON.
Ŷ The icemaking cycle will not begin until the
icemaker and freezer compartment reach
operating temperature, then icemaking will
begin automatically.
7
REINSTALL THE COVER
Ŷ Reinstall the compressor compartment access
FRYHU7KLVUHTXLUHVXVLQJWKHVFUHZV\RX
removed previously to reattach the cover to
the back of the refrigerator case. This must be
reinstalled for your refrigerator to function properly.
Adhesive-backed
fasteners for water tube
WARNING
ELECTRIC SHOCK
HAZARD
Attach tubing clamp using existing hole only. DO
NOT drill into the refrigerator.
