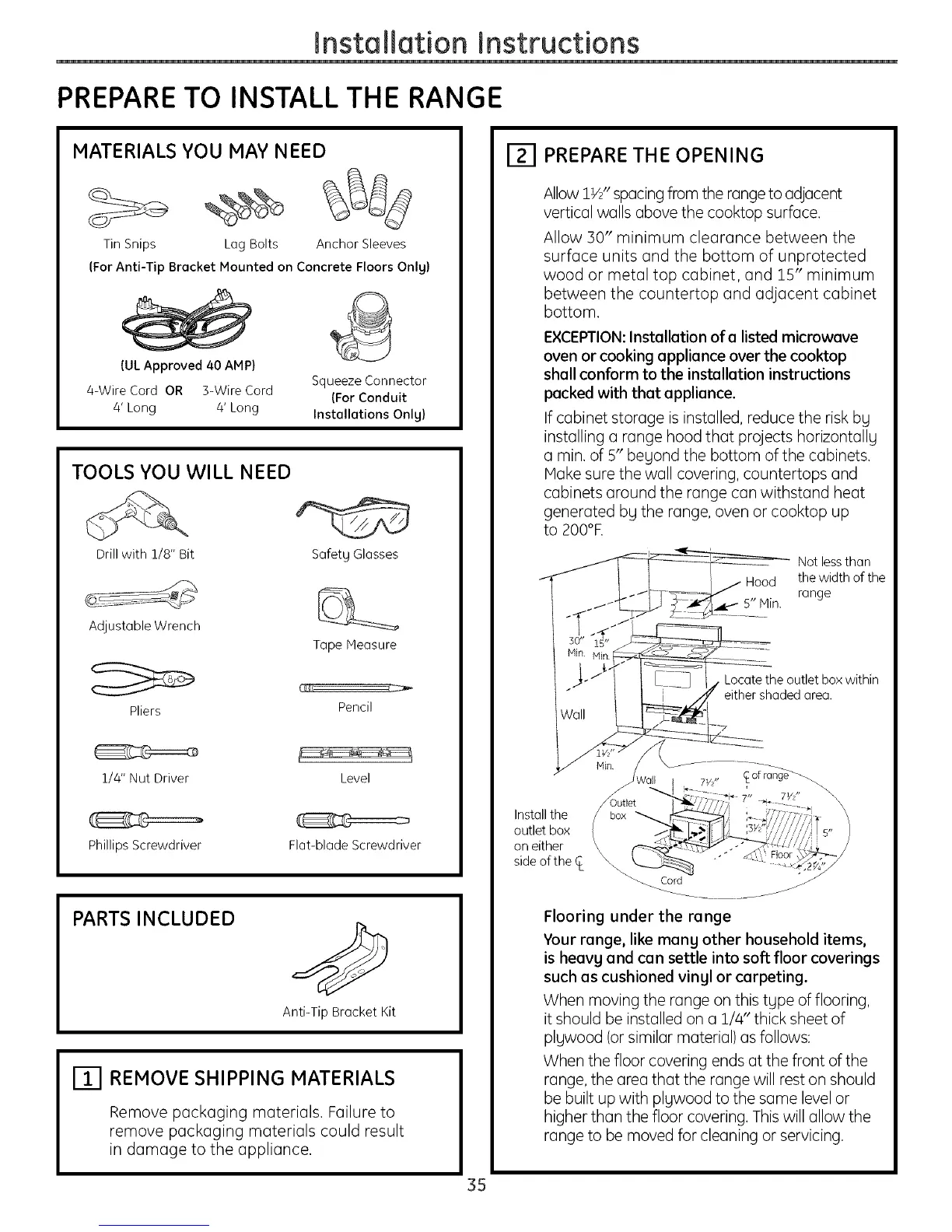

Installation instructions
PREPARETO INSTALL THE RANGE
MATERIALS YOU MAY NEED
Tin Snips Lag Bolts Anchor Sleeves
(For Anti-Tip Bracket Mounted on Concrete Floors Only)
(UL Approved 40 AMP)
4-Wire Cord OR 3-Wire Cord Squeeze Connector
(For Conduit
4' Long 4' Long Installations Onlg)
TOOLS YOU WILL NEED
Drill with 1/8" Bit
Adjustable Wrench
Safetg Glasses
Tape Measure
Pliers
Pencil
1/4" Nut Driver Level
Phillips Screwdriver
Flat-blade Screwdriver
PARTS INCLUDED
Anti-Tip Bracket Kit
ITI REMOVE SHIPPING MATERIALS
Remove packaging materials. Failure to
remove packaging materials could result
in damage to the appliance.
D
PREPARE THE OPENING
Allow 1W' spacing from the range to adjacent
vertical walls above the cooktop surface.
Allow 30" minimum clearance between the
surface units and the bottom of unprotected
wood or metal top cabinet, and 15" minimum
between the countertop and adjacent cabinet
bottom.
EXCEPTION:Installation of a listed microwave
oven or cooking appliance over the cooktop
shall conform to the installation instructions
packed with that appliance.
If cabinet storage is installed, reduce the risk bg
installing a range hood that projects horizontallg
a rain. of 5" begond the bottom of the cabinets.
Make sure the wall covering, countertops and
cabinets around the range can withstand heat
generated bg the range, oven or cooktop up
to 200°R
Not less than
Hood the width of the
range
5" Min.
Locate the outlet box within
either shaded area.
of ran_
Install the
outlet box
on either
side of the CL
Cord
Flooring under the range
Your range, like mang other household items,
is heavg and can settle into soft floor coverings
such as cushioned vingl or carpeting.
When moving the range on this type of flooring,
it should be installed on a 1/4" thick sheet of
plgwood (or similar material) as follows:
When the floor covering ends at the front of the
range, the area that the range will rest on should
be built up with plywood to the same level or
higher than the floor covering. This will allow the
range to be moved for cleaning or servicing.
