GE JD966 Technical Service Guide

41

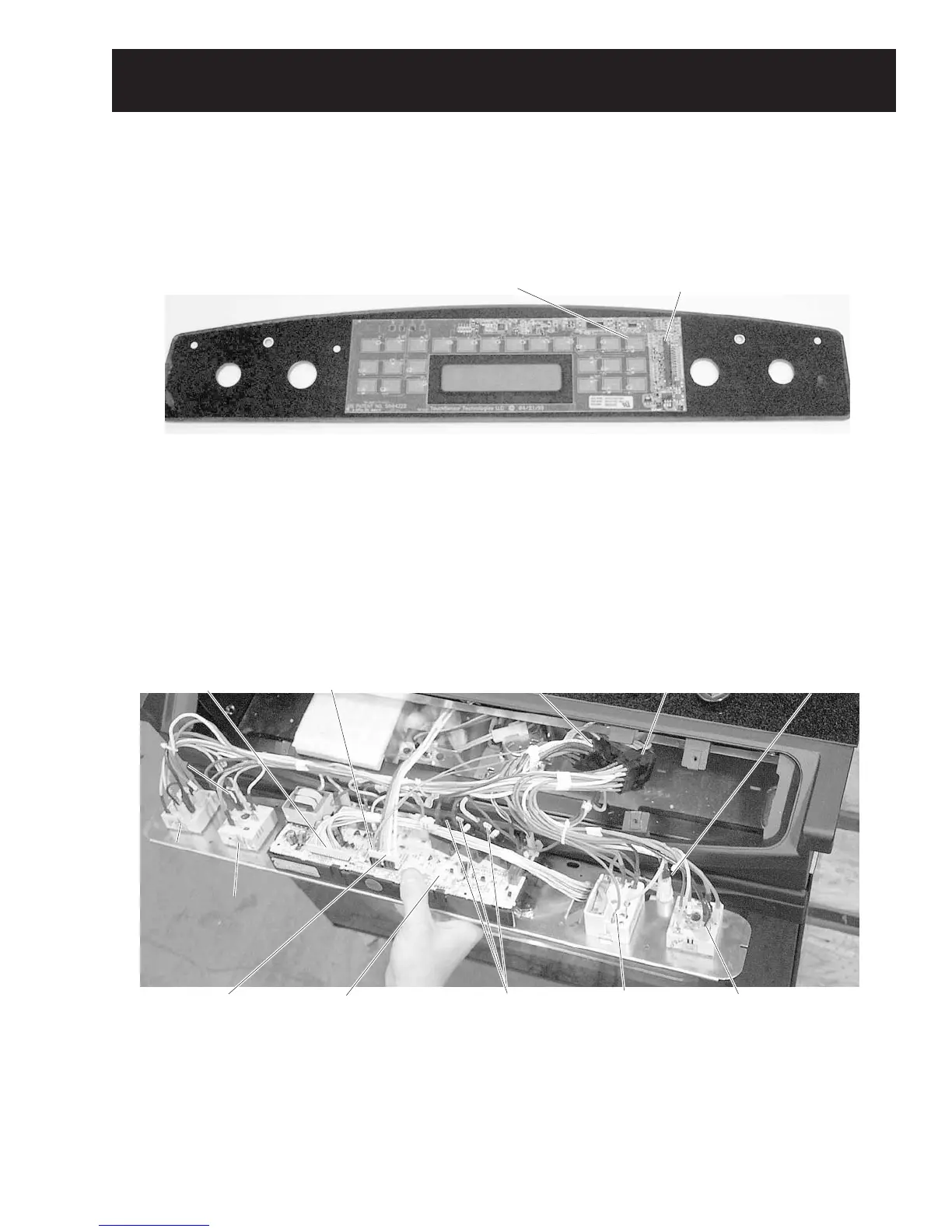

Component and Connector Locator Views
JD966 and JS966
GEA01063
17-Pin Header17-Pin Header
Meat Probe
Connector
Meat Probe
Connector
14-Pin Power
Connector
14-Pin Power
Connector
Right Rear
Surface Switch
Right Rear
Surface Switch
15-Pin Cooktop
Connector
15-Pin Cooktop
Connector
Right Front
Surface Switch
Right Front
Surface Switch
Left Front
Surface Switch
Left Front
Surface Switch
ON LightsON Lights
Left Rear
Surface Switch
Left Rear
Surface Switch
Electronic Oven
Control
Electronic Oven
Control
Lock Motor
Connector
Lock Motor
Connector
Oven Element
Connectors
Oven Element
Connectors
ON LightsON Lights
GEA01062
17-Pin Header17-Pin Header
Touch BoardTouch Board
